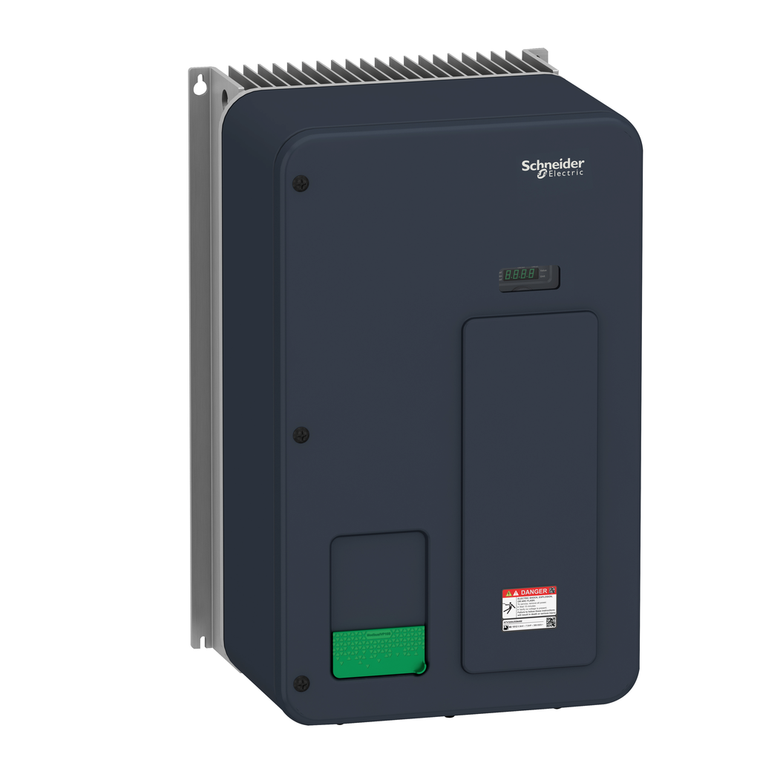

Schneider Electric ATV320U75N4W Atv320 7,5Kw 400V 3Ph Without Vario

Schneider Electric ATV320U75N4W Atv320 7,5Kw 400V 3Ph Without Vario

Schneider Electric
SKU:
ATV320U75N4W
|
UPC:
3.60649E+12
$2,559.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 7.5kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 22kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Additional Information
Emc Filter:
Class C2 EMC filter integrated
Brake Chopper Integrated:
TRUE
Line Current:
26.5 A 380 V heavy duty) || 18.7 A 500 V heavy duty)
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Depth:
300 mm
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Height:
521 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
With Safety Function Safe Operating Stop (Sos):
FALSE
Range Of Product:
Altivar Machine ATV320
Relative Symmetric Network Frequency Tolerance:
0.05
With Safety Function Safe Torque Off (Sto):
TRUE
Braking To Standstill:
by DC injection
Ip Degree Of Protection:
IP66
Environmental Disclosure:
ENVPEP1908005EN
Discrete Input Number:
7
[Us] Rated Supply Voltage:
380...500 V - 15...10 %
With Safety Function Safe Position (Sp):
FALSE
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Product Specific Application:
complex machines
Method Of Access:
slave CANopen
Motor Power Kw:
7.5 kW heavy duty
Overvoltage Category:
III
Prospective Line Isc:
22 kA
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Net Weight:
22.0 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Marking:
CE || ATEX || UL || CSA || EAC || RCM
Transient Overtorque:
170-200 % of nominal motor torque
With Safety Function Safe Direction (Sdi):
FALSE
Network Frequency:
50-60 Hz
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Discrete Output Number:
3
Nominal Switching Frequency:
4 kHz
Mounting Mode:
wall mount
Maximum Output Voltage:
500 V
Regulation Loop:
adjustable PID regulator
Upgradeability:
Upgraded components available
Variant:
standard version
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Apparent Power:
16.2 kVA 500 V heavy duty)
Format Of The Drive:
enclosed
With Safety Function Safe Stop 1 (Ss1):
TRUE
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Product Or Component Type:
variable speed drive
With Safety Function Safely Limited Speed (Sls):
TRUE
With Safety Function Safe Speed Monitor (Ssm):
FALSE
With Safety Function Safe Programmable Logic:
FALSE
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Nominal Output Current:
17.0 A
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Analogue Output Number:
1
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
4 Quadrant Operation Possible:
TRUE
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Communication Port Protocol:
Modbus serial || CANopen
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
Maximum Output Frequency:
0.599 kHz
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Width:
320 mm
Power Dissipation In W:
self-cooled 229.0 W 380 V 4 kHz
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Ambient Air Temperature For Storage:
-25-70 °C
With Safety Function Safely Limited Position (Slp):
FALSE
Operating Position:
vertical +/- 10 degree
Base Load Current At High Overload:
17.0 A
Standards:
IEC 61800-5-1
Sustainable Offer Status:
Green Premium product
Discrete Input Logic:
positive logic (source) || negative logic (sink)
China Rohs Regulation:
X
Pollution Degree:
3
Ambient Air Temperature For Operation:
-10-40 °C without derating || 40-60 °C with derating factor
Ambient Air Transport Temperature:
-25-70 °C
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Analogue Input Number:
3
Circularity Profile:
ENVEOLI1908005EN
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
Synchronous Motor Control Profile:
vector control without sensor
Catalog:
View
Datasheet:
View
