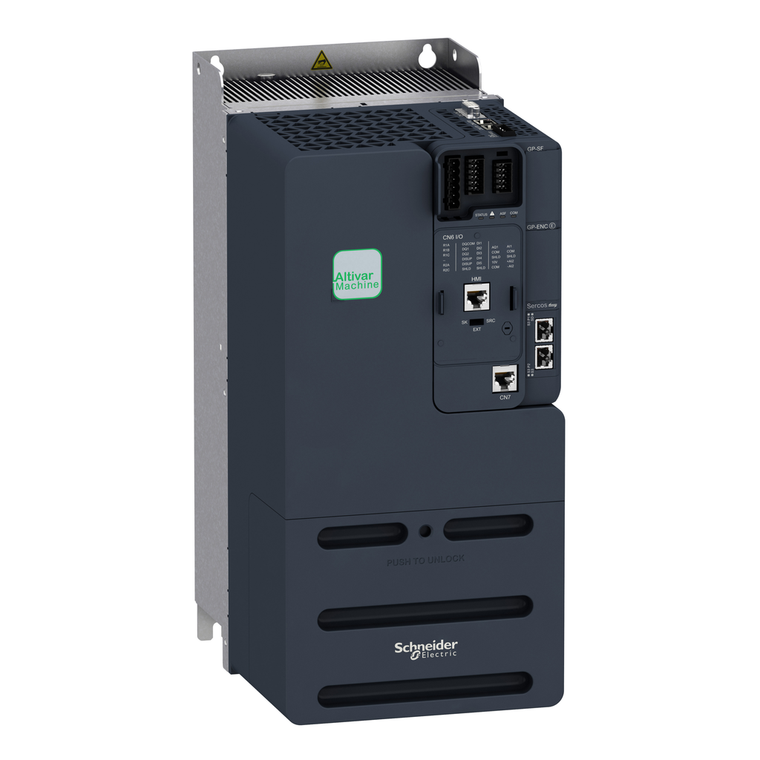

Schneider Electric ATV340D22N4S Atv340 22Kw 30Hp 400V With Sercos

Schneider Electric ATV340D22N4S Atv340 22Kw 30Hp 400V With Sercos

Schneider Electric
SKU:
ATV340D22N4S
|
UPC:
3606489497910
$5,412.38
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Variable speed drive, Altivar Machine ATV340, 22 kW Heavy Duty, 400 V, 3 phases, Sercos
Additional Information
Connector Type:
3 RJ45
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Isolation:
between power and control terminals
Protection Type:
thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s || S, U or customized
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Volume Of Cooling Air:
128.0 m3/h
With Safety Function Safe Stop 1 (Ss1):
TRUE
Output Voltage:
<= power supply voltage
Maximum Output Voltage:
480 V
Number Of Addresses:
1-247
Ambient Air Temperature For Storage:
-25-70 °C
Base Load Current At Low Overload:
62.0 A
Relay Output Number:
2
Circularity Profile:
ENVEOLI1609006EN
Environmental Disclosure:
ENVPEP1609006EN
Depth:
249.0 mm
Operating Position:
vertical +/- 10 degree
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Motor Power Kw:
30 kW normal duty || 22 kW heavy duty
Mounting Mode:
cabinet mount
Discrete Output Number:
2
Base Load Current At High Overload:
46.0 A
Physical Interface:
2-wire RS 485
With Safety Function Safe Programmable Logic:
FALSE
Overvoltage Category:
class III
Discrete Input Type:
PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
Maximum Output Frequency:
0.599 kHz
Analogue Input Number:
2
Pvc Free:
Yes
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Standards:
EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Rohs Exemption Information:
Yes
Assembly Style:
with heat sink
With Safety Function Safe Direction (Sdi):
FALSE
Analogue Input Type:
AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31
Type Of Polarization:
no impedance
Pollution Degree:
2
Discrete Output Type:
programmable output DQ1, DQ2 30 V DC 100 mA
Ambient Air Transport Temperature:
-40-70 °C
Transmission Frame:
RTU
Maximum Acceleration Under Vibrational Stress (During Operation):
5 m/s² at 9...200 Hz
Supply Frequency:
50...60 Hz +/- 5 %
Height:
385.0 mm
Mercury Free:
Yes
Product Or Component Type:
variable speed drive
Maximum Transient Current:
68.2 A 60 s normal duty) || 69 A 60 s heavy duty) || 83.7 A 2 s normal duty) || 83 A 2 s heavy duty)
Operating Altitude:
<= 9842.52 ft (3000 m) with current derating above 1000m
Product Certifications:
UL || CSA || TÜV || EAC || CTick
With Safety Function Safely Limited Position (Slp):
FALSE
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Line Current:
60.1 A 380 V normal duty) || 48.6 A 480 V normal duty) || 63.5 A 380 V heavy duty) || 50.6 A 480 V heavy duty)
Electrical Connection:
control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 || motor screw terminal 6...25 mm² AWG 8...AWG 3 || line side screw terminal 10...25 mm² AWG 6...AWG 3 || DC bus screw terminal 10...25 mm² AWG 6...AWG 3
Product Specific Application:
machine
Minimum Switching Current:
relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Width:
180.0 mm
With Safety Function Safely Limited Speed (Sls):
TRUE
4 Quadrant Operation Possible:
TRUE
Emc Filter:
class C3 EMC filter integrated
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...9 Hz
Pollution Degree:
2 EN/IEC 61800-5-1
Phase:
3 phase
Maximum Horse Power Rating:
40 hp normal duty || 30 hp heavy duty
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Communication Port Protocol:
Sercos || Modbus serial
With Safety Function Safe Torque Off (Sto):
TRUE
Apparent Power:
45.1 kVA 480 V normal duty) || 42.1 kVA 480 V heavy duty)
Net Weight:
10.2 kg
Analogue Output Number:
2
Type Of Cooling:
forced convection
Noise Level:
56.7 dB
Brake Chopper Integrated:
TRUE
Synchronous Motor Control Profile:
permanent magnet motor || reluctance motor
Line Current:
63.5 A 380 V without line choke heavy duty) || 50.5 A 480 V without line choke heavy duty) || 48.6 A 480 V with external line choke normal duty) || 43.3 A 380 V with external line choke heavy duty) || 34.9 A 480 V with external line choke heavy duty)
Nominal Switching Frequency:
4 kHz
With Safety Function Safe Position (Sp):
FALSE
Data Format:
8 bits, configurable odd, even or no parity
Discrete Input Number:
5
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Braking To Standstill:
by DC injection
Motor Slip Compensation:
adjustable || can be suppressed || automatic whatever the load || not available in permanent magnet motor law
Nominal Output Current:
46.0 A
Ip Degree Of Protection:
IP20
Marking:
CE
Maximum Acceleration Under Shock Impact (During Operation):
70 m/s² at 22 ms
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Switching Current:
relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R
Power Dissipation In W:
natural convection 28 W 380 V 4 kHz heavy duty) || forced convection 486 W 380 V 4 kHz heavy duty) || natural convection 39 W 380 V 4 kHz normal duty) || forced convection 631 W 380 V 4 kHz normal duty)
Variant:
standard version
Method Of Access:
slave Modbus RTU
Analogue Output Type:
software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
China Rohs Regulation:
X
Relay Output Type:
relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
Electrical Connection:
screw terminal 0.2...2.5 mm² control || screw terminal 6...25 mm² motor || screw terminal 10...25 mm² line side || screw terminal 10...25 mm² DC bus
Prospective Line Isc:
22 kA
Range Of Product:
Altivar Machine ATV340
Ambient Air Temperature For Operation:
-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
Switching Frequency:
2...16 kHz adjustable || 6...16 kHz with derating factor
Asynchronous Motor Control Profile:
variable torque standard || constant torque standard || optimized torque mode
With Safety Function Safe Operating Stop (Sos):
FALSE
Regulation Loop:
adjustable PID regulator
Discrete Input Logic:
16 preset speeds
Transmission Rate:
4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Continuous Output Current:
62 A 4 kHz normal duty || 46 A 4 kHz heavy duty
Catalog:
View
Datasheet:
View
