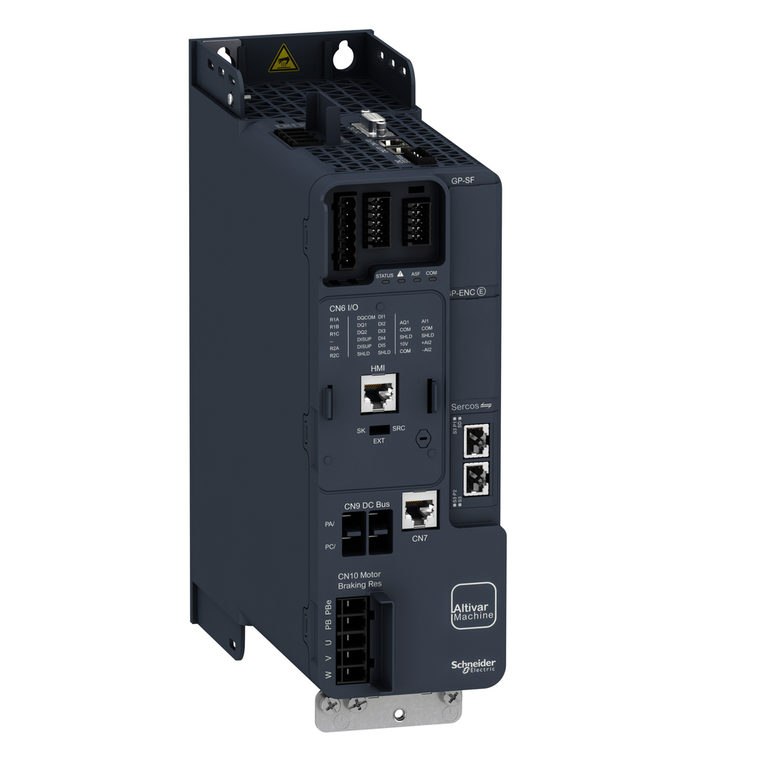

Schneider Electric ATV340U15N4S Atv340 1,5Kw 2Hp 400V With Sercos

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV340U15N4S Atv340 1,5Kw 2Hp 400V With Sercos

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV340U15N4S

UPC:

3606489497828

MPN:

Condition:

New

Relay Output Type:

relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

With Safety Function Safely Limited Speed (Sls):

TRUE

Protection Type:

thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Connector Type:

3 RJ45

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Synchronous Motor Control Profile:

reluctance motor || permanent magnet motor

Relay Output Number:

2

Pollution Degree:

2

Marking:

CE

Volume Of Cooling Air:

18.0 m3/h

Regulation Loop:

adjustable PID regulator

Line Current:

6 A 380 V without line choke heavy duty) || 4.9 A 480 V without line choke heavy duty) || 5.1 A 380 V with external line choke normal duty) || 4.1 A 480 V with external line choke normal duty) || 3.5 A 380 V with external line choke heavy duty) || 2.

Power Dissipation In W:

natural convection 46 W 380 V 4 kHz heavy duty) || forced convection 46 W 380 V 4 kHz heavy duty) || natural convection 59 W 380 V 4 kHz normal duty) || forced convection 59 W 380 V 4 kHz normal duty)

Discrete Output Number:

2

Phase:

3 phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Output Current:

5.6 A 4 kHz normal duty || 4 A 4 kHz heavy duty

Analogue Input Type:

AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31

Maximum Horse Power Rating:

3 hp normal duty || 2 hp heavy duty

With Safety Function Safe Direction (Sdi):

FALSE

Assembly Style:

with heat sink

Motor Slip Compensation:

can be suppressed || adjustable || not available in permanent magnet motor law || automatic whatever the load

Communication Port Protocol:

Sercos || Modbus serial

With Safety Function Safe Position (Sp):

FALSE

Asynchronous Motor Control Profile:

optimized torque mode || constant torque standard || variable torque standard

Motor Power Kw:

2.2 kW normal duty || 1.5 kW heavy duty

Width:

85.0 mm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Apparent Power:

3.8 kVA 480 V normal duty) || 4.1 kVA 480 V heavy duty)

Circularity Profile:

ENVEOLI1609005EN

Electrical Connection:

screw terminal 1.5...4 mm² line side || screw terminal 4...6 mm² DC bus || screw terminal 1.5...4 mm² motor || screw terminal 0.2...2.5 mm² control

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Ambient Air Temperature For Operation:

-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)

Operating Position:

vertical +/- 10 degree

Ip Degree Of Protection:

IP20

Method Of Access:

slave Modbus RTU

Product Or Component Type:

variable speed drive

Ambient Air Transport Temperature:

-40-70 °C

Analogue Output Type:

software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits

Switching Frequency:

2...16 kHz adjustable || 8...16 kHz with derating factor

Variant:

standard version

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Output Voltage:

<= power supply voltage

Data Format:

8 bits, configurable odd, even or no parity

Type Of Cooling:

forced convection

Discrete Input Logic:

16 preset speeds

Type Of Polarization:

no impedance

Range Of Product:

Altivar Machine ATV340

Mounting Mode:

cabinet mount

Supply Frequency:

50...60 Hz +/- 5 %

Line Current:

5.1 A 380 V normal duty) || 4.1 A 480 V normal duty) || 6.0 A 380 V heavy duty) || 4.9 A 480 V heavy duty)

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Pvc Free:

Yes

Transmission Frame:

RTU

Isolation:

between power and control terminals

Height:

270.0 mm

Maximum Acceleration Under Shock Impact (During Operation):

70 m/s² at 22 ms

Electrical Connection:

line side screw terminal 1.5...4 mm² AWG 14...AWG 12 || DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || motor screw terminal 1.5...4 mm² AWG 14...AWG 12 || control screw terminal 0.2...2.5 mm² AWG 24...AWG 12

4 Quadrant Operation Possible:

TRUE

Prospective Line Isc:

5 kA

Pollution Degree:

2 EN/IEC 61800-5-1

Discrete Output Type:

programmable output DQ1, DQ2 30 V DC 100 mA

Transmission Rate:

4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Number Of Addresses:

1-247

Physical Interface:

2-wire RS 485

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Maximum Output Frequency:

0.599 kHz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Overvoltage Category:

class III

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Analogue Output Number:

2

Emc Filter:

class C3 EMC filter integrated

With Safety Function Safely Limited Position (Slp):

FALSE

Maximum Switching Current:

relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R

Operating Altitude:

<= 9842.52 ft (3000 m) with current derating above 1000m

Base Load Current At High Overload:

4.0 A

With Safety Function Safe Stop 1 (Ss1):

TRUE

Environmental Disclosure:

ENVPEP1609005EN

China Rohs Regulation:

X

Noise Level:

55.4 dB

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...9 Hz

Discrete Input Type:

PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm

Standards:

EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C

With Safety Function Safe Operating Stop (Sos):

FALSE

Product Certifications:

UL || CSA || TÜV || EAC || CTick

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Discrete Input Number:

5

Base Load Current At Low Overload:

5.6 A

Maximum Acceleration Under Vibrational Stress (During Operation):

5 m/s² at 9...200 Hz

Net Weight:

1.7 kg

Nominal Switching Frequency:

4 kHz

Maximum Output Voltage:

480 V

Depth:

232.5 mm

Brake Chopper Integrated:

TRUE

Maximum Transient Current:

6.2 A 60 s normal duty) || 6 A 60 s heavy duty) || 7.6 A 2 s normal duty) || 7.2 A 2 s heavy duty)

With Safety Function Safe Torque Off (Sto):

TRUE

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Nominal Output Current:

4.0 A

Minimum Switching Current:

relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC

Analogue Input Number:

2

Product Specific Application:

machine

Braking To Standstill:

by DC injection

With Safety Function Safe Programmable Logic:

FALSE

Catalog:

View

Datasheet:

View
