Schneider Electric ATV340U22N4S Atv340 2,2Kw 3Hp 400V With Sercos

(No reviews yet) Write a Review

Write a Review

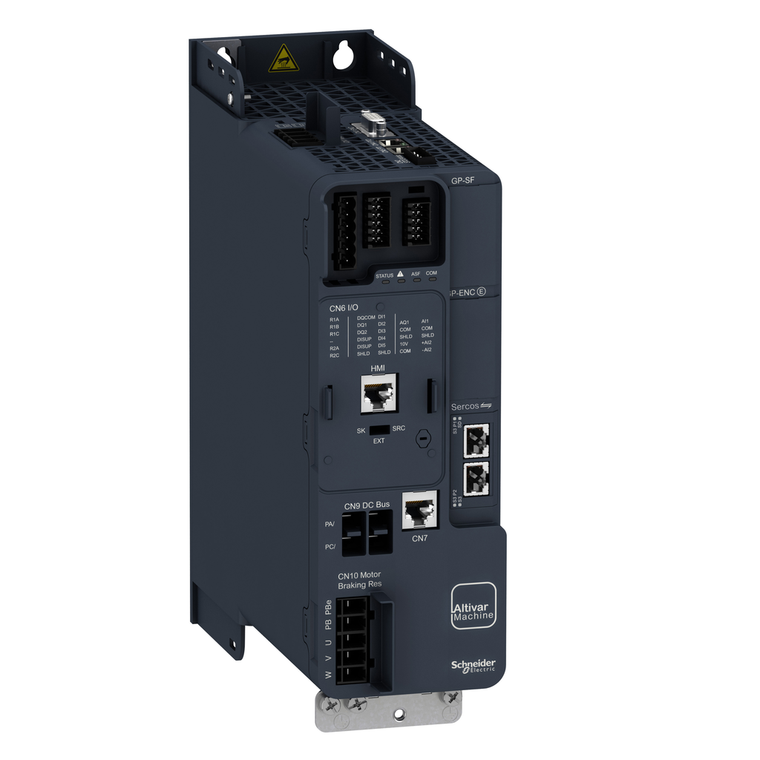

Schneider Electric ATV340U22N4S Atv340 2,2Kw 3Hp 400V With Sercos

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV340U22N4S

UPC:

3606489497835

MPN:

Condition:

New

Maximum Switching Current:

relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R

With Safety Function Safe Speed Monitor (Ssm):

FALSE

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Discrete Input Type:

PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm

China Rohs Regulation:

X

Braking To Standstill:

by DC injection

Sustainable Offer Status:

Green Premium product

Brake Chopper Integrated:

TRUE

Operating Altitude:

<= 9842.52 ft (3000 m) with current derating above 1000m

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...9 Hz

Base Load Current At High Overload:

5.6 A

Discrete Input Number:

5

Power Dissipation In W:

natural convection 65 W 380 V 4 kHz heavy duty) || forced convection 65 W 380 V 4 kHz heavy duty) || natural convection 80 W 380 V 4 kHz normal duty) || forced convection 80 W 380 V 4 kHz normal duty)

Analogue Input Type:

AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31

Maximum Acceleration Under Shock Impact (During Operation):

70 m/s² at 22 ms

Type Of Cooling:

forced convection

Analogue Input Number:

2

Range Of Product:

Altivar Machine ATV340

Electrical Connection:

line side screw terminal 1.5...4 mm² AWG 14...AWG 12 || DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || motor screw terminal 1.5...4 mm² AWG 14...AWG 12 || control screw terminal 0.2...2.5 mm² AWG 24...AWG 12

Maximum Transient Current:

7.9 A 60 s normal duty) || 9.7 A 2 s normal duty) || 10.1 A 2 s heavy duty) || 8 A 60 s heavy duty)

4 Quadrant Operation Possible:

TRUE

Ip Degree Of Protection:

IP20

Ambient Air Transport Temperature:

-40-70 °C

Phase:

3 phase

Analogue Output Number:

2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Depth:

232.5 mm

Output Voltage:

<= power supply voltage

Product Specific Application:

machine

Mounting Mode:

cabinet mount

Maximum Acceleration Under Vibrational Stress (During Operation):

5 m/s² at 9...200 Hz

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu

With Safety Function Safely Limited Speed (Sls):

TRUE

Physical Interface:

2-wire RS 485

Connector Type:

3 RJ45

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Data Format:

8 bits, configurable odd, even or no parity

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Protection Type:

thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent

Line Current:

8.4 A 380 V without line choke heavy duty) || 6.6 A 480 V without line choke heavy duty) || 6.6 A 380 V with external line choke normal duty) || 5.3 A 480 V with external line choke normal duty) || 5.1 A 380 V with external line choke heavy duty) ||

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Pollution Degree:

2 EN/IEC 61800-5-1

With Safety Function Safe Position (Sp):

FALSE

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Asynchronous Motor Control Profile:

constant torque standard || optimized torque mode || variable torque standard

Discrete Output Number:

2

Marking:

CE

Apparent Power:

5.2 kVA 480 V normal duty) || 5.5 kVA 480 V heavy duty)

Environmental Disclosure:

ENVPEP1609005EN

With Sft Fct Safe Stop 2 (Ss2):

FALSE

With Safety Function Safely Limited Position (Slp):

FALSE

Product Certifications:

UL || CSA || TÜV || EAC || CTick

Method Of Access:

slave Modbus RTU

Discrete Input Logic:

16 preset speeds

Maximum Output Frequency:

0.599 kHz

Motor Power Kw:

3 kW normal duty || 2.2 kW heavy duty

Ambient Air Temperature For Storage:

-25-70 °C

Nominal Switching Frequency:

4 kHz

Electrical Connection:

screw terminal 1.5...4 mm² line side || screw terminal 4...6 mm² DC bus || screw terminal 1.5...4 mm² motor || screw terminal 0.2...2.5 mm² control

Continuous Output Current:

7.2 A 4 kHz normal duty || 5.6 A 4 kHz heavy duty

Relay Output Number:

2

Minimum Switching Current:

relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC

Transmission Rate:

4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Mercury Free:

Yes

Relay Output Type:

relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles

Assembly Style:

with heat sink

Transmission Frame:

RTU

Analogue Output Type:

software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits

Product Or Component Type:

variable speed drive

With Safety Function Safe Direction (Sdi):

FALSE

Line Current:

6.6 A 380 V normal duty) || 5.3 A 480 V normal duty) || 8.4 A 380 V heavy duty) || 6.6 A 480 V heavy duty)

Discrete Output Type:

programmable output DQ1, DQ2 30 V DC 100 mA

Volume Of Cooling Air:

18.0 m3/h

Supply Frequency:

50...60 Hz +/- 5 %

Rohs Exemption Information:

Yes

Emc Filter:

class C3 EMC filter integrated

Overvoltage Category:

class III

Synchronous Motor Control Profile:

reluctance motor || permanent magnet motor

Number Of Addresses:

1-247

Net Weight:

1.8 kg

Pollution Degree:

2

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Ambient Air Temperature For Operation:

-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)

Isolation:

between power and control terminals

Standards:

EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C

With Safety Function Safe Programmable Logic:

FALSE

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Maximum Output Voltage:

480 V

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

With Safety Function Safe Operating Stop (Sos):

FALSE

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Output Current:

5.6 A

With Safety Function Safe Stop 1 (Ss1):

TRUE

With Safety Function Safe Torque Off (Sto):

TRUE

Communication Port Protocol:

Sercos || Modbus serial

Operating Position:

vertical +/- 10 degree

Base Load Current At Low Overload:

7.2 A

Circularity Profile:

ENVEOLI1609005EN

Pvc Free:

Yes

Variant:

standard version

Motor Slip Compensation:

can be suppressed || automatic whatever the load || not available in permanent magnet motor law || adjustable

Width:

85.0 mm

Maximum Horse Power Rating:

3 hp normal duty || 3 hp heavy duty

Noise Level:

55.4 dB

Height:

270.0 mm

Regulation Loop:

adjustable PID regulator

Type Of Polarization:

no impedance

Prospective Line Isc:

5 kA
