<= 9842.52 ft (3000 m) with current derating above 1000m
Prospective Line Isc:
22 kA
Analogue Output Type:
software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...9 Hz
Analogue Output Number:
2
Product Certifications:
UL || CSA || TÜV || EAC || CTick
Net Weight:
2.9 kg
Operating Position:
vertical +/- 10 degree
Base Load Current At Low Overload:
16.5 A
Discrete Output Number:
2
Asynchronous Motor Control Profile:
variable torque standard || optimized torque mode || constant torque standard
With Safety Function Safe Stop 1 (Ss1):
TRUE
Physical Interface:
2-wire RS 485
Minimum Switching Current:
relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Product Or Component Type:
variable speed drive
Communication Port Protocol:
Sercos || Modbus serial
Connector Type:
3 RJ45
Discrete Input Number:
5
Maximum Output Frequency:
0.599 kHz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Method Of Access:
slave Modbus RTU
With Safety Function Safely Limited Speed (Sls):
TRUE
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu
With Safety Function Safely Limited Position (Slp):
FALSE
Pollution Degree:
2
Mercury Free:
Yes
Number Of Addresses:
1-247
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Transmission Frame:
RTU
Isolation:
between power and control terminals
With Safety Function Safe Direction (Sdi):
FALSE
Nominal Output Current:
12.7 A
Pvc Free:
Yes
Output Voltage:
<= power supply voltage
Product Specific Application:
machine
Analogue Input Number:
2
Ambient Air Transport Temperature:
-40-70 °C
Electrical Connection:
DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 || line side screw terminal 1.5...6 mm² AWG 14...AWG 10 || motor screw terminal 1.5...6 mm² AWG 14...AWG 10
Brake Chopper Integrated:
TRUE
Depth:
234.0 mm
Power Dissipation In W:
natural convection 134 W 380 V 4 kHz heavy duty) || forced convection 134 W 380 V 4 kHz heavy duty) || natural convection 164 W 380 V 4 kHz normal duty) || forced convection 164 W 380 V 4 kHz normal duty)
linear adjustable separately from 0.01...9999 s || S, U or customized
Electrical Connection:
screw terminal 4...6 mm² DC bus || screw terminal 0.2...2.5 mm² control || screw terminal 1.5...6 mm² line side || screw terminal 1.5...6 mm² motor
Braking To Standstill:
by DC injection
Mounting Mode:
cabinet mount
Emc Filter:
class C3 EMC filter integrated
Synchronous Motor Control Profile:
permanent magnet motor || reluctance motor
Motor Power Kw:
7.5 kW normal duty || 5.5 kW heavy duty
Nominal Switching Frequency:
4 kHz
Discrete Input Type:
PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
Continuous Output Current:
16.5 A 4 kHz normal duty || 12.7 A 4 kHz heavy duty
With Safety Function Safe Speed Monitor (Ssm):
FALSE
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Switching Frequency:
2...16 kHz adjustable || 7...16 kHz with derating factor
Data Format:
8 bits, configurable odd, even or no parity
Discrete Input Logic:
16 preset speeds
Height:
270.0 mm
Ambient Air Temperature For Operation:
-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
Motor Slip Compensation:
adjustable || automatic whatever the load || can be suppressed || not available in permanent magnet motor law
Regulation Loop:
adjustable PID regulator
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
110.0 mm
Ip Degree Of Protection:
IP20
Maximum Acceleration Under Vibrational Stress (During Operation):
5 m/s² at 9...200 Hz
Apparent Power:
12.1 kVA 480 V normal duty) || 13.3 kVA 480 V heavy duty)
Maximum Acceleration Under Shock Impact (During Operation):
70 m/s² at 22 ms
Variant:
standard version
Discrete Output Type:
programmable output DQ1, DQ2 30 V DC 100 mA
Line Current:
20 A 380 V without line choke heavy duty) || 16 A 480 V without line choke heavy duty) || 15.3 A 380 V with external line choke normal duty) || 12.2 A 480 V with external line choke normal duty) || 11.6 A 380 V with external line choke heavy duty) ||
Overvoltage Category:
class III
With Safety Function Safe Position (Sp):
FALSE
Maximum Switching Current:
relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R
Analogue Input Type:
AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31
Maximum Horse Power Rating:
10 hp normal duty || 7 hp heavy duty
With Safety Function Safe Programmable Logic:
FALSE
Noise Level:
46.6 dB
Marking:
CE
Rohs Exemption Information:
Yes
Protection Type:
thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent
Maximum Output Voltage:
480 V
Pollution Degree:
2 EN/IEC 61800-5-1
Assembly Style:
with heat sink
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Current:
15.3 A 380 V normal duty) || 12.2 A 480 V normal duty) || 20.0 A 380 V heavy duty) || 16.0 A 480 V heavy duty)
Type Of Cooling:
forced convection
China Rohs Regulation:
X
With Safety Function Safe Operating Stop (Sos):
FALSE
Ambient Air Temperature For Storage:
-25-70 °C
With Safety Function Safe Torque Off (Sto):
TRUE
Relay Output Number:
2
Type Of Polarization:
no impedance
4 Quadrant Operation Possible:
TRUE
Standards:
EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Sustainable Offer Status:
Green Premium product
Maximum Transient Current:
18.2 A 60 s normal duty) || 19.1 A 60 s heavy duty) || 22.3 A 2 s normal duty) || 22.9 A 2 s heavy duty)

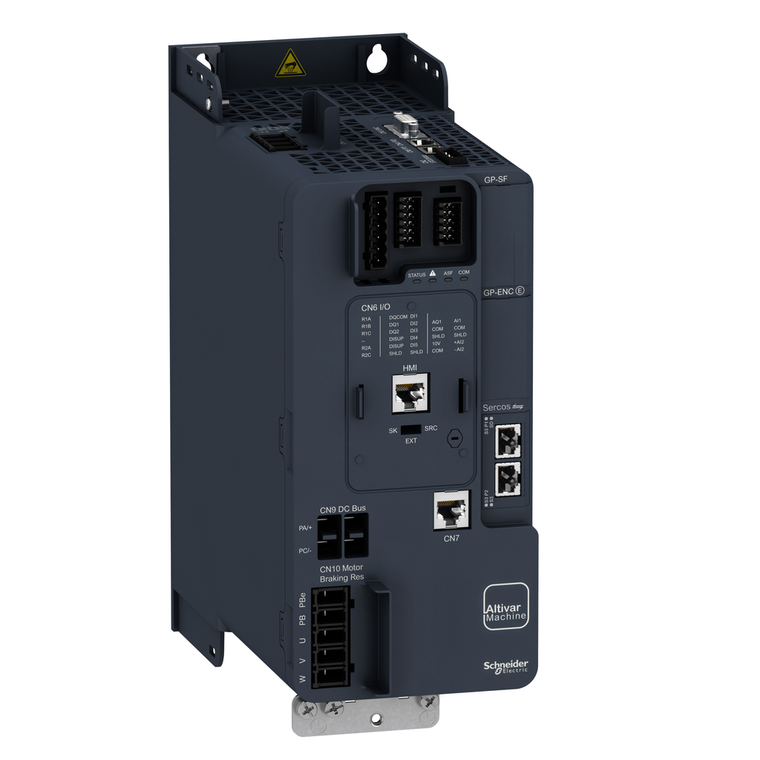

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at...
