Schneider Electric

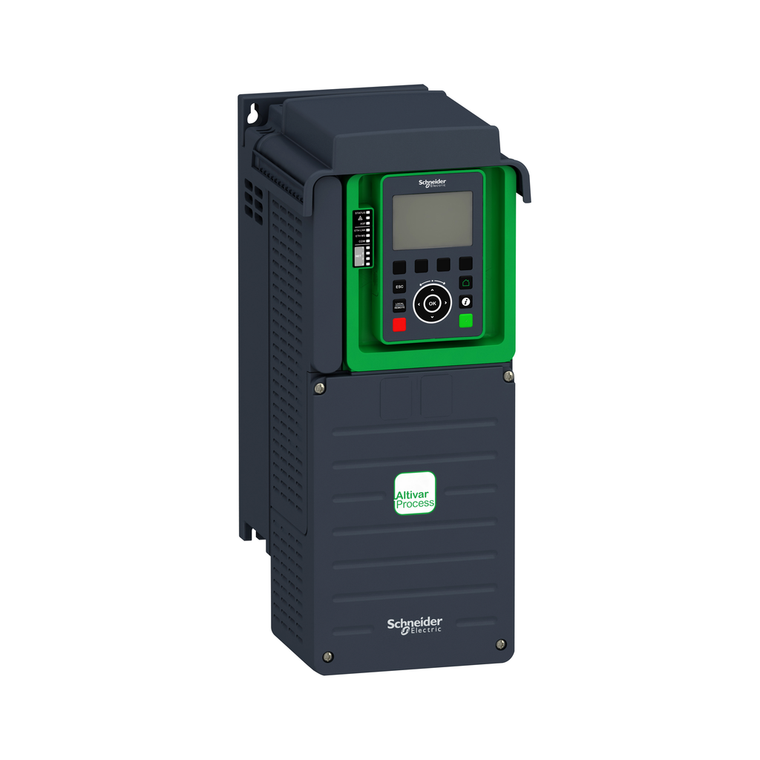

Schneider Electric ATV630D15S6X Atv630 Ip21 20Hp 600V Variateur De Vit.

SKU:

ATV630D15S6X

UPC:

3.60648E+12

MPN:

Condition:

New

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Product Destination:

asynchronous motors || synchronous motors

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Variant:

standard version

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Analogue Output Number:

2

Type Of Cooling:

forced convection

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Ambient Air Temperature For Storage:

-40-70 °C

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Type Of Polarization:

no impedance

Upgradeability:

Upgraded components available

Method Of Access:

slave Modbus TCP

Range Of Product:

Altivar Process ATV600

Height:

409 mm

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Discrete Output Number:

0

Supply Frequency:

50...60 Hz - 5...5 %

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Maximum Horse Power Rating:

20 hp 600 V normal duty || 15 hp 600 V heavy duty

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Position:

vertical +/- 10 degree

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Prospective Line Isc:

70 kA

Communication Port Protocol:

Modbus TCP || Ethernet || Modbus serial

Depth:

233 mm

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Volume Of Cooling Air:

103 m3/h

Motor Slip Compensation:

adjustable || automatic whatever the load || can be suppressed || not available in permanent magnet motor law

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Overvoltage Category:

III

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Isolation:

between power and control terminals

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Noise Level:

52 dB 86/188/EEC

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Number Of Addresses:

1-247 Modbus serial

Speed Drive Output Frequency:

0.1-500 Hz

Pollution Degree:

2

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Phase:

3 phase

Relay Output Number:

3

Line Current:

19.6 A 600 V normal duty) || 15.3 A 600 V heavy duty)

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Sustainable Offer Status:

Green Premium product

Quantity Per Set:

1

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Power Dissipation In W:

natural convection 136 W 600 V 4 kHz || forced convection 192 W 600 V 4 kHz

Environmental Disclosure:

ENVPEP1707007EN

Data Format:

8 bits, configurable odd, even or no parity

Apparent Power:

20.4 kVA 600 V normal duty) || 15.9 kVA 600 V heavy duty)

Transmission Frame:

RTU

Asynchronous Motor Control Profile:

constant torque standard || optimized torque mode || variable torque standard

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Safety Function:

STO (safe torque off) SIL 3

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

[Us] Rated Supply Voltage:

600 V

Maximum Thdi:

<48 % with external line choke IEC 61000-3-12

Maximum Transient Current:

24.2 A 60 s normal duty) || 27 A 60 s heavy duty)

Circularity Profile:

ENVEOLI1707007EN

Mounting Mode:

wall mount

Discrete Input Number:

8

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

600 V - 15...10 %

Pollution Degree:

2 IEC 61800-5-1

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 6...10 mm² AWG 10...AWG 8

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Net Weight:

5.5 kg

Discrete Input Logic:

16 preset speeds

Device Short Name:

ATV630

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Product Certifications:

TÜV || UL || CSA

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Output Voltage:

<= power supply voltage

Nominal Switching Frequency:

4 kHz

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Mercury Free:

Yes

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Noise Level:

56 dB

Braking To Standstill:

by DC injection

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Degree Of Protection:

UL type 1 UL 508C

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Analogue Input Number:

3

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Maximum Output Frequency:

500 kHz

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Regulation Loop:

adjustable PID regulator

Width:

171 mm

Product Specific Application:

process and utilities

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Enclosure Mounting:

wall mounted

Physical Interface:

Ethernet || 2-wire RS 485

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Continuous Output Current:

22 A 4 kHz normal duty || 18 A 4 kHz heavy duty

Product Or Component Type:

variable speed drive

Emc Filter:

without EMC filter

Shock Resistance:

15 gn 11 ms IEC 60068-2-27
