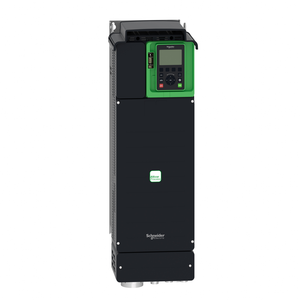

Schneider Electric ATV630D18M3 Variable Speed Drive Ip21 18Kw 200V/240V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630D18M3 Variable Speed Drive Ip21 18Kw 200V/240V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630D18M3

UPC:

3606480701498

MPN:

Condition:

New

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 35...50 mm² AWG 3...AWG 1 || motor screw terminal 35...50 mm² AWG 3...AWG 1

Phase:

3 phase

Enclosure Mounting:

wall mounted

Environmental Disclosure:

ENVPEP1411001EN

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Product Certifications:

CSA || DNV-GL || UL || TÜV || ATEX zone 2/22 || ATEX INERIS

Type Of Cooling:

forced convection

Range Of Product:

Altivar Process ATV600

Product Destination:

asynchronous motors || synchronous motors

Marking:

CE

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Maximum Output Frequency:

500 kHz

Discrete Input Number:

8

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

[Us] Rated Supply Voltage:

200...240 V

Noise Level:

63.5 dB

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Communication Port Protocol:

Ethernet || Modbus serial || Modbus TCP

Transmission Frame:

RTU

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Degree Of Protection:

UL type 1 UL 508C

Speed Drive Output Frequency:

0.1-500 Hz

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Power Dissipation In W:

natural convection 97 W 200 V 4 kHz || forced convection 595 W 200 V 4 kHz

Nominal Switching Frequency:

4 kHz

China Rohs Regulation:

X

Net Weight:

14.2 kg

Regulation Loop:

adjustable PID regulator

Sustainable Offer Status:

Green Premium product

Line Current:

66.7 A 200 V normal duty) || 54.5 A 240 V normal duty) || 53.1 A 200 V heavy duty) || 44.9 A 240 V heavy duty)

Depth:

271 mm

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Overvoltage Category:

III

Upgradeability:

Upgraded components available

Product Specific Application:

process and utilities

Mounting Mode:

wall mount

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Number Of Addresses:

1-247 Modbus serial

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Height:

673 mm

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Relay Output Number:

3

Emc Filter:

without EMC filter

Output Voltage:

<= power supply voltage

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Variant:

standard version

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Prospective Line Isc:

50 kA

Operating Position:

vertical +/- 10 degree

Device Short Name:

ATV630

Continuous Output Current:

78.4 A 4 kHz normal duty || 63.4 A 4 kHz heavy duty

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Pollution Degree:

2

Data Format:

8 bits, configurable odd, even or no parity

Type Of Polarization:

no impedance

Safety Function:

STO (safe torque off) SIL 3

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Pollution Degree:

2 IEC 61800-5-1

Motor Slip Compensation:

automatic whatever the load || can be suppressed || not available in permanent magnet motor law || adjustable

Noise Level:

63.5 dB 86/188/EEC

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Maximum Transient Current:

86.2 A 60 s normal duty) || 95.1 A 60 s heavy duty)

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

UL 508C || IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Analogue Input Number:

3

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Discrete Input Logic:

16 preset speeds

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Method Of Access:

slave Modbus TCP

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI1411001EN

Motor Power Kw:

18.5 kW normal duty) || 15 kW heavy duty)

Isolation:

between power and control terminals

Maximum Horse Power Rating:

25 hp normal duty || 20 hp heavy duty

Braking To Standstill:

by DC injection

Physical Interface:

Ethernet || 2-wire RS 485

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Power Range:

15-25 kW 200-240 V 3 phase

Quantity Per Set:

1

Product Or Component Type:

variable speed drive

Volume Of Cooling Air:

240 m3/h

Width:

226 mm

Supply Frequency:

50...60 Hz - 5...5 %

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Asynchronous Motor Control Profile:

optimized torque mode || variable torque standard || constant torque standard

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

Mercury Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Apparent Power:

22.7 kVA 240 V normal duty) || 18.7 kVA 240 V heavy duty)

Ambient Air Temperature For Storage:

-40-70 °C

Analogue Output Number:

2

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Discrete Output Number:

0
