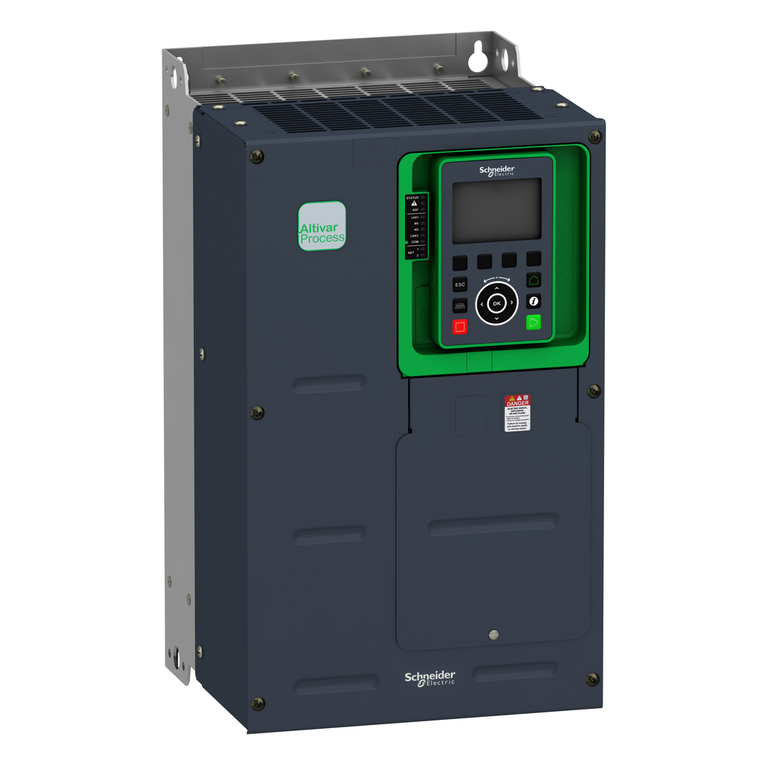

Schneider Electric ATV630D30Y6 Atv630Ip00 30Kw 500V-690V Variable Spee

Schneider Electric ATV630D30Y6 Atv630Ip00 30Kw 500V-690V Variable Spee

Schneider Electric
SKU:
ATV630D30Y6
|
UPC:
3606481325181
$7,704.89
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW/40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW/30HP for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Additional Information
Data Format:
8 bits, configurable odd, even or no parity
Continuous Output Current:
34 A 4 kHz normal duty || 29 A 4 kHz heavy duty
[Us] Rated Supply Voltage:
500...690 V - 15...10 %
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Connector Type:
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Net Weight:
22 kg
Speed Drive Output Frequency:
0.1-500 Hz
Maximum Transient Current:
37.4 A 60 s normal duty) || 43.5 A 60 s heavy duty)
Safety Function:
STO (safe torque off) SIL 3
Device Short Name:
ATV630
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Power Dissipation In W:
natural convection 152 W 500 V 4 kHz || forced convection 544 W 500 V 4 kHz
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Height:
420 mm
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Transmission Rate:
10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Overvoltage Category:
III
Maximum Output Frequency:
500 kHz
Marking:
CE
Standards:
UL 508C || IEC 61800-3 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Pollution Degree:
2
Maximum Horse Power Rating:
30 hp 500 V normal duty || 25 hp 500 V heavy duty || 40 hp 690 V normal duty || 30 hp 690 V heavy duty
Acceleration And Deceleration Ramps:
S, U or customized || linear adjustable separately from 0.01...9999 s
Motor Power Kw:
22 kW 500 V normal duty) || 18.5 kW 500 V heavy duty) || 30 kW 690 V normal duty) || 22 kW 690 V heavy duty)
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Communication Port Protocol:
Ethernet || Modbus serial || Modbus TCP
Isolation:
between power and control terminals
Supply Frequency:
50...60 Hz - 5...5 %
Mercury Free:
Yes
Product Certifications:
UL || CSA || TÜV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Switching Current:
relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Apparent Power:
39.2 kVA 690 V normal duty) || 31.1 kVA 690 V heavy duty)
Analogue Output Number:
2
Operating Position:
vertical +/- 10 degree
Nominal Switching Frequency:
4 kHz
Asynchronous Motor Control Profile:
constant torque standard || optimized torque mode || variable torque standard
Mounting Mode:
wall mount
Sustainable Offer Status:
Green Premium product
Width:
246 mm
Transmission Frame:
RTU
Discrete Input Number:
8
Option Card:
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Discrete Output Number:
0
Prospective Line Isc:
70 kA
Analogue Input Number:
3
Phase:
3 phase
Quantity Per Set:
1
Electrical Connection:
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 10 mm² AWG 8 || line side screw terminal 10 mm² AWG 8
Volume Of Cooling Air:
330 m3/h
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Noise Level:
58 dB
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Discrete Output Type:
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Relay Output Type:
configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Variant:
standard version
Line Current:
32.1 A 500 V normal duty) || 32.8 A 690 V normal duty) || 27.6 A 500 V heavy duty) || 26 A 690 V heavy duty)
Product Specific Application:
process and utilities
[Us] Rated Supply Voltage:
500...690 V
China Rohs Regulation:
X
Permissible Temporary Current Boost:
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Local Signalling:
for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
Type Of Cooling:
forced convection
Type Of Polarization:
no impedance
Ip Degree Of Protection:
IP00IEC 61800-5-1 || IP00IEC 60529 || IP20 with kit VW3A9706)IEC 61800-5-1 || IP20 with kit VW3A9706)IEC 60529
Product Or Component Type:
variable speed drive
Pollution Degree:
2 IEC 61800-5-1
Enclosure Mounting:
wall mounted
Relay Output Number:
3
Frequency Resolution:
display unit 0.1 Hz || analog input 0.012/50 Hz
Rohs Exemption Information:
Yes
Product Destination:
asynchronous motors || synchronous motors
Ambient Air Temperature For Storage:
-40-70 °C
Braking To Standstill:
by DC injection
Upgradeability:
Upgraded components available
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Input Compatibility:
DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Regulation Loop:
adjustable PID regulator
Noise Level:
52 dB 86/188/EEC
Output Voltage:
<= power supply voltage
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Maximum Thdi:
<48 % with external line choke IEC 61000-3-12
Discrete Input Logic:
positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Environmental Disclosure:
ENVPEP1704001EN
Motor Slip Compensation:
not available in permanent magnet motor law || can be suppressed || adjustable || automatic whatever the load
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Number Of Addresses:
1-247 Modbus serial
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Altivar Process ATV600
Discrete Input Logic:
16 preset speeds
Circularity Profile:
ENVEOLI1704001EN
Emc Filter:
integrated 25 m IEC 61800-3 category C3
Physical Interface:
Ethernet || 2-wire RS 485
Switching Frequency:
2...8 kHz adjustable || 4...8 kHz with derating factor
Depth:
242 mm
Method Of Access:
slave Modbus TCP
Brochure:
View
Catalog:
View
Datasheet:
View
