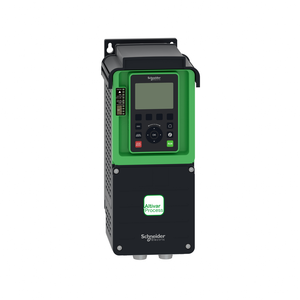

Schneider Electric ATV630U40N4 Variable Speed Drive Ip21 4Kw 400V/480V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630U40N4 Variable Speed Drive Ip21 4Kw 400V/480V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630U40N4

UPC:

3606480758133

MPN:

Condition:

New

Braking To Standstill:

by DC injection

Type Of Cooling:

forced convection

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Input Compatibility:

DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2

Upgradeability:

Upgraded components available

Sustainable Offer Status:

Green Premium product

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Operating Position:

vertical +/- 10 degree

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Relay Output Number:

3

China Rohs Regulation:

X

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Degree Of Protection:

UL type 1 UL 508C

Quantity Per Set:

1

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Nominal Switching Frequency:

4 kHz

Analogue Input Number:

3

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Phase:

3 phase

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Communication Port Protocol:

Ethernet || Modbus serial || Modbus TCP

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Discrete Output Number:

0

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Ambient Air Temperature For Storage:

-40-70 °C

Marking:

CE

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Transient Current:

10.8 A 60 s heavy duty) || 10.2 A 60 s normal duty)

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Supply Frequency:

50...60 Hz - 5...5 %

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Volume Of Cooling Air:

38 m3/h

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Product Or Component Type:

variable speed drive

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Height:

350 mm

Transmission Frame:

RTU

Width:

144 mm

Product Specific Application:

process and utilities

Device Short Name:

ATV630

Power Dissipation In W:

natural convection 33 W 380 V 4 kHz || forced convection 97 W 380 V 4 kHz

Product Certifications:

DNV-GL || ATEX zone 2/22 || ATEX INERIS || TÜV || CSA || UL

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Range Of Product:

Altivar Process ATV600

Number Of Addresses:

1-247 Modbus serial

Maximum Output Frequency:

500 kHz

Data Format:

8 bits, configurable odd, even or no parity

Motor Slip Compensation:

not available in permanent magnet motor law || adjustable || automatic whatever the load || can be suppressed

Emc Filter:

integrated 50 m EN/IEC 61800-3 category C2 || integrated 150 m EN/IEC 61800-3 category C3

Variant:

standard version

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode

[Us] Rated Supply Voltage:

380...480 V

Power Range:

4-6 kW 380-440 V 3 phase || 4-6 kW 480-500 V 3 phase

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Rohs Exemption Information:

Yes

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Standards:

UL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 2.5...6 mm² AWG 14...AWG 10 || line side screw terminal 2.5...6 mm² AWG 14...AWG 10

Depth:

203 mm

Output Voltage:

<= power supply voltage

Enclosure Mounting:

wall mounted

Noise Level:

54.5 dB 86/188/EEC

Product Destination:

asynchronous motors || synchronous motors

Regulation Loop:

adjustable PID regulator

Maximum Thdi:

<48 % full load IEC 61000-3-12

Environmental Disclosure:

ENVPEP1501005EN

Mounting Mode:

wall mount

Speed Drive Output Frequency:

0.1-500 Hz

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Pollution Degree:

2 EN/IEC 61800-5-1

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Safety Function:

STO (safe torque off) SIL 3

Line Current:

7.6 A 380 V normal duty) || 6.7 A 480 V normal duty) || 6 A 380 V heavy duty) || 5.4 A 480 V heavy duty)

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Output Current:

9.3 A 4 kHz normal duty || 7.2 A 4 kHz heavy duty

Type Of Polarization:

no impedance

Analogue Output Number:

2

Noise Level:

54.5 dB

Method Of Access:

slave Modbus TCP

Mercury Free:

Yes

Physical Interface:

Ethernet || 2-wire RS 485

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Pollution Degree:

2

Net Weight:

4.6 kg

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Overvoltage Category:

III

Maximum Horse Power Rating:

5 hp normal duty || 4 hp heavy duty

Discrete Input Number:

8

Circularity Profile:

ENVEOLI1501005EN

Discrete Input Logic:

16 preset speeds

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Motor Power Kw:

4 kW normal duty) || 3 kW heavy duty)

Prospective Line Isc:

50 kA

Isolation:

between power and control terminals

Apparent Power:

5.6 kVA 480 V normal duty) || 4.5 kVA 480 V heavy duty)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
