Schneider Electric

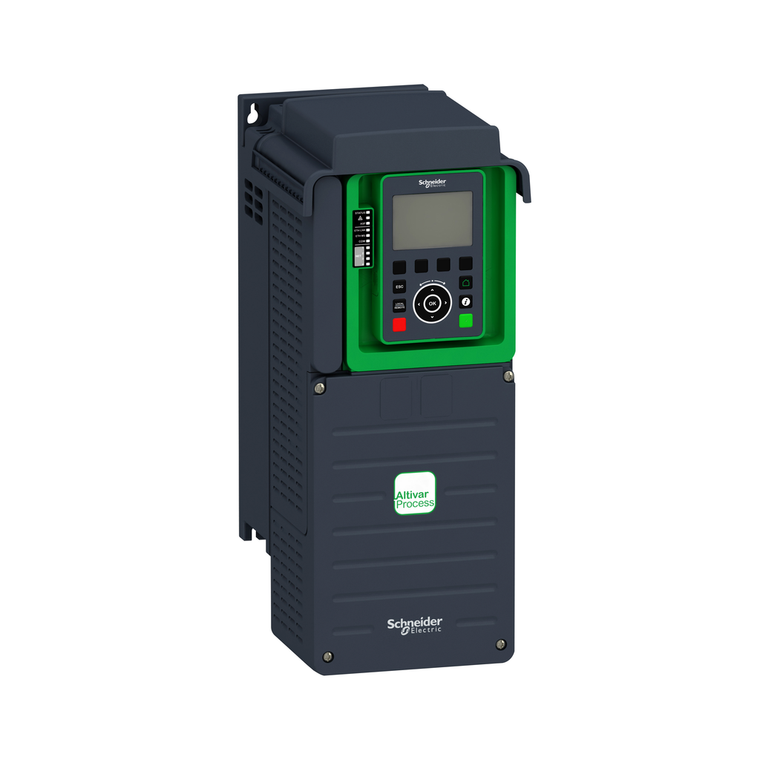

Schneider Electric ATV630U40S6X Atv630 Ip21 5Hp 600V Variateur De Vit.

SKU:

ATV630U40S6X

UPC:

3.60648E+12

MPN:

Condition:

New

Discrete Input Number:

8

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1707007EN

Analogue Input Number:

3

Transmission Frame:

RTU

Emc Filter:

without EMC filter

Isolation:

between power and control terminals

Width:

171 mm

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Upgradeability:

Upgraded components available

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Output Voltage:

<= power supply voltage

Net Weight:

5.5 kg

Enclosure Mounting:

wall mounted

Environmental Disclosure:

ENVPEP1707007EN

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Quantity Per Set:

1

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Height:

409 mm

Type Of Polarization:

no impedance

Braking To Standstill:

by DC injection

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

China Rohs Regulation:

X

Analogue Output Number:

2

Sustainable Offer Status:

Green Premium product

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Communication Port Protocol:

Modbus TCP || Ethernet || Modbus serial

Product Or Component Type:

variable speed drive

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Maximum Horse Power Rating:

5 hp 600 V normal duty || 3 hp 600 V heavy duty

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Depth:

233 mm

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Asynchronous Motor Control Profile:

variable torque standard || optimized torque mode || constant torque standard

Relay Output Number:

3

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Maximum Output Frequency:

500 kHz

Prospective Line Isc:

70 kA

Noise Level:

56 dB

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Noise Level:

52 dB 86/188/EEC

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Phase:

3 phase

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Ambient Air Temperature For Storage:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Switching Frequency:

4 kHz

Continuous Output Current:

7.2 A 4 kHz normal duty || 4.2 A 4 kHz heavy duty

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Supply Frequency:

50...60 Hz - 5...5 %

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Power Dissipation In W:

natural convection 84 W 600 V 4 kHz || forced convection 55 W 600 V 4 kHz

Product Destination:

asynchronous motors || synchronous motors

Type Of Cooling:

forced convection

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Line Current:

5.3 A 600 V normal duty) || 3.3 A 600 V heavy duty)

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

600 V - 15...10 %

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 6...10 mm² AWG 10...AWG 8

[Us] Rated Supply Voltage:

600 V

Apparent Power:

5.5 kVA 600 V normal duty) || 3.4 kVA 600 V heavy duty)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Degree Of Protection:

UL type 1 UL 508C

Speed Drive Output Frequency:

0.1-500 Hz

Range Of Product:

Altivar Process ATV600

Volume Of Cooling Air:

103 m3/h

Physical Interface:

Ethernet || 2-wire RS 485

Mounting Mode:

wall mount

Data Format:

8 bits, configurable odd, even or no parity

Regulation Loop:

adjustable PID regulator

Pollution Degree:

2

Operating Position:

vertical +/- 10 degree

Maximum Thdi:

<48 % with external line choke IEC 61000-3-12

Number Of Addresses:

1-247 Modbus serial

Motor Slip Compensation:

can be suppressed || not available in permanent magnet motor law || adjustable || automatic whatever the load

Overvoltage Category:

III

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Discrete Output Number:

0

Product Certifications:

UL || CSA || TÜV

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Maximum Transient Current:

7.9 A 60 s normal duty) || 6.3 A 60 s heavy duty)

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Variant:

standard version

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Discrete Input Logic:

16 preset speeds

Mercury Free:

Yes

Device Short Name:

ATV630

Safety Function:

STO (safe torque off) SIL 3

Product Specific Application:

process and utilities

Pollution Degree:

2 IEC 61800-5-1

Method Of Access:

slave Modbus TCP

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Datasheet:

View
