Schneider Electric

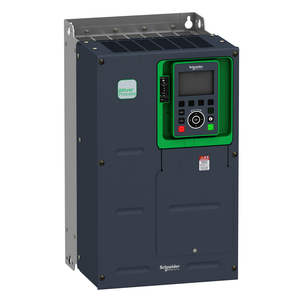

Schneider Electric ATV630U40Y6 Atv630Ip00 4Kw 500V-690V Variable Speed

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630U40Y6 Atv630Ip00 4Kw 500V-690V Variable Speed

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630U40Y6

UPC:

3606481325112

MPN:

Condition:

New

[Us] Rated Supply Voltage:

500...690 V

Overvoltage Category:

III

Analogue Output Number:

2

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Pollution Degree:

2 IEC 61800-5-1

Circularity Profile:

ENVEOLI1704001EN

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Device Short Name:

ATV630

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 4...10 mm² AWG 12...AWG 8 || line side screw terminal 4...10 mm² AWG 12...AWG 8

Range Of Product:

Altivar Process ATV600

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Net Weight:

22 kg

China Rohs Regulation:

X

Isolation:

between power and control terminals

Method Of Access:

slave Modbus TCP

Number Of Addresses:

1-247 Modbus serial

Variant:

standard version

Product Destination:

asynchronous motors || synchronous motors

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Power Dissipation In W:

natural convection 78 W 500 V 4 kHz || forced convection 75 W 500 V 4 kHz

Mercury Free:

Yes

Phase:

3 phase

Speed Drive Output Frequency:

0.1-500 Hz

Mounting Mode:

wall mount

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Depth:

242 mm

Discrete Input Number:

8

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Operating Position:

vertical +/- 10 degree

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Rohs Exemption Information:

Yes

Enclosure Mounting:

wall mounted

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Apparent Power:

7.3 kVA 690 V normal duty) || 5.7 kVA 690 V heavy duty)

Maximum Transient Current:

6.3 A 60 s heavy duty) || 5.9 A 60 s normal duty)

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Ambient Air Temperature For Storage:

-40-70 °C

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Frequency:

50...60 Hz - 5...5 %

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode

Discrete Output Number:

0

Braking To Standstill:

by DC injection

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Type Of Polarization:

no impedance

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Emc Filter:

integrated 25 m IEC 61800-3 category C3

Switching Frequency:

2...8 kHz adjustable || 4...8 kHz with derating factor

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Discrete Input Logic:

16 preset speeds

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Product Or Component Type:

variable speed drive

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Width:

246 mm

Height:

420 mm

Analogue Input Number:

3

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Ip Degree Of Protection:

IP00IEC 61800-5-1 || IP00IEC 60529 || IP20 with kit VW3A9705)IEC 61800-5-1 || IP20 with kit VW3A9705)IEC 60529

Pollution Degree:

2

Standards:

UL 508C || IEC 61800-3 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Product Certifications:

CSA || UL || TÜV

Marking:

CE

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Continuous Output Current:

4.2 A 4 kHz heavy duty || 5.4 A 4 kHz normal duty

Type Of Cooling:

forced convection

Sustainable Offer Status:

Green Premium product

Upgradeability:

Upgraded components available

Quantity Per Set:

1

Relay Output Number:

3

Physical Interface:

Ethernet || 2-wire RS 485

Maximum Thdi:

<48 % with external line choke IEC 61000-3-12

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Maximum Horse Power Rating:

3 hp 500 V normal duty || 5 hp 690 V normal duty

Line Current:

6.2 A 500 V normal duty) || 6.1 A 690 V normal duty) || 4.7 A 500 V heavy duty) || 4.8 A 690 V heavy duty)

Noise Level:

58 dB

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Output Voltage:

<= power supply voltage

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Volume Of Cooling Air:

330 m3/h

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Environmental Disclosure:

ENVPEP1704001EN

Prospective Line Isc:

70 kA

Regulation Loop:

adjustable PID regulator

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Output Frequency:

500 kHz

Data Format:

8 bits, configurable odd, even or no parity

Noise Level:

52 dB 86/188/EEC

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Nominal Switching Frequency:

4 kHz

Transmission Frame:

RTU

Motor Slip Compensation:

automatic whatever the load || can be suppressed || adjustable || not available in permanent magnet motor law

Safety Function:

STO (safe torque off) SIL 3

Motor Power Kw:

3 kW 500 V normal duty) || 2.2 kW 500 V heavy duty) || 4 kW 690 V normal duty) || 3 kW 690 V heavy duty)

Communication Port Protocol:

Modbus TCP || Modbus serial || Ethernet

[Us] Rated Supply Voltage:

500...690 V - 15...10 %

Product Specific Application:

process and utilities

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
