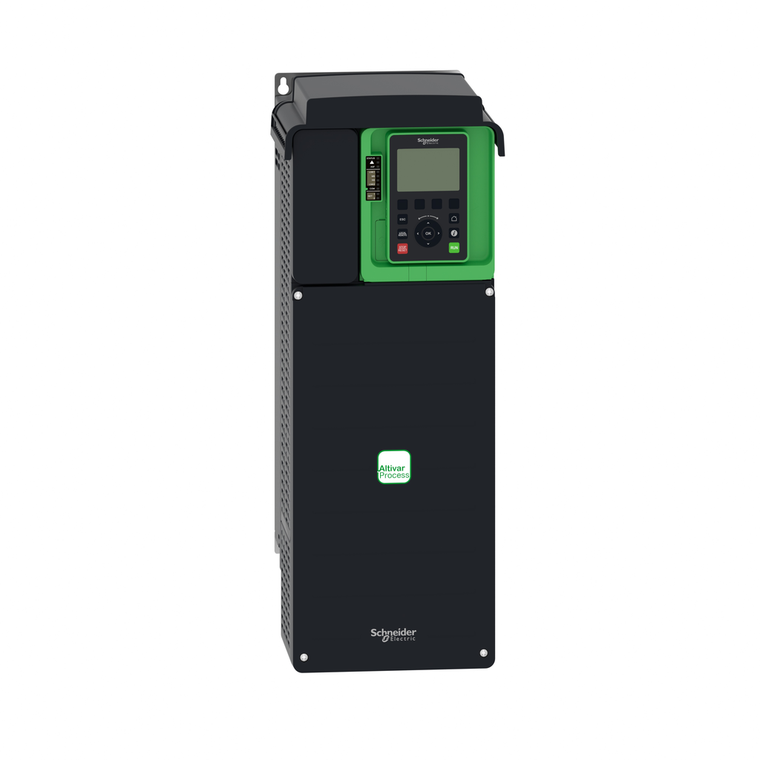

Schneider Electric ATV930D18N4 Atv930 Ip21 18,5Kw 400V/480V Variable Sp

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV930D18N4 Atv930 Ip21 18,5Kw 400V/480V Variable Sp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV930D18N4

UPC:

3606480883347

MPN:

Condition:

New

Connector Type:

2 RJ45 || 1 RJ45

Sustainable Offer Status:

Green Premium product

Discrete Input Logic:

16 preset speeds

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Mercury Free:

Yes

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Ambient Air Temperature For Storage:

-40-70 °C

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Network Frequency:

50-60 Hz

Noise Level:

59.5 dB

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Communication Port Protocol:

Modbus TCP || EtherNet/IP || Modbus serial

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Motor Slip Compensation:

adjustable || automatic whatever the load || not available in permanent magnet motor law || can be suppressed

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

China Rohs Regulation:

X

Data Format:

8 bits, configurable odd, even or no parity

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Product Or Component Type:

variable speed drive

Emc Filter:

integrated || with EMC plate option

Height:

545.9 mm

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Braking To Standstill:

by DC injection

With Safety Function Safe Operating Stop (Sos):

FALSE

Physical Interface:

Ethernet || 2-wire RS 485

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Pollution Degree:

2

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Base Load Current At High Overload:

31.7 A

Discrete Output Number:

2

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Base Load Current At Low Overload:

39.2 A

With Safety Function Safe Programmable Logic:

FALSE

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Maximum Transient Current:

47 A 60 s normal duty) || 47.6 A 60 s heavy duty)

4 Quadrant Operation Possible:

TRUE

Apparent Power:

24 kVA 480 V normal duty) || 20.3 kVA 480 V heavy duty)

Prospective Line Isc:

50 kA

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Variant:

with braking chopper || standard version

Circularity Profile:

ENVEOLI1404008EN

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Assembly Style:

enclosed

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Asynchronous Motor Control Profile:

constant torque standard || variable torque standard || optimized torque mode

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Analogue Input Number:

3

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Marking:

CE

Transmission Frame:

RTU

Mounting Mode:

wall mount

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Range Of Product:

Altivar Process ATV900

Quantity Per Set:

1

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Product Specific Application:

process for industrial

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

With Safety Function Safe Position (Sp):

FALSE

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Maximum Output Voltage:

480.0 V

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Relay Output Number:

3

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Operating Position:

vertical +/- 10 degree

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Ambient Air Transport Temperature:

-40-70 °C

With Safety Function Safely Limited Speed (Sls):

TRUE

Motor Power Kw:

18.5 kW normal duty || 15.0 kW heavy duty

Depth:

235 mm

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Width:

211 mm

Volume Of Cooling Air:

215 m3/h

Noise Level:

59.5 dB 86/188/EEC

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Relative Symmetric Network Frequency Tolerance:

0.05

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Continuous Output Current:

39.2 A 4 kHz normal duty || 31.7 A 4 kHz heavy duty

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

With Safety Function Safe Direction (Sdi):

FALSE

Nominal Switching Frequency:

4 kHz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Method Of Access:

slave Modbus TCP

Product Destination:

asynchronous motors || synchronous motors

Brake Chopper Integrated:

TRUE

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 10...16 mm² AWG 8...AWG 6 || motor screw terminal 10...16 mm² AWG 8...AWG 6 || DC bus screw terminal 10...16 mm² AWG 8...AWG 6

Number Of Addresses:

1-247 Modbus serial

Discrete Input Number:

10

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Phase:

3 phase

Rohs Exemption Information:

Yes

With Safety Function Safe Torque Off (Sto):

TRUE

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Power Dissipation In W:

natural convection 67 W 380 V 4 kHz || forced convection 460 W 380 V 4 kHz

Number Of Addresses:

1-247

Regulation Loop:

adjustable PID regulator

Isolation:

between power and control terminals

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Ip Degree Of Protection:

IP21

With Safety Function Safe Stop 1 (Ss1):

TRUE

Degree Of Protection:

UL type 1

Line Current:

33.4 A 380 V normal duty) || 27.7 A 380 V heavy duty) || 28.9 A 480 V normal duty) || 24.4 A 480 V heavy duty)

Analogue Output Number:

2

Product Certifications:

UL || TÜV || CSA

Net Weight:

14.2 kg

Device Application:

Industrial Application

Upgradeability:

Upgraded components available

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Environmental Disclosure:

ENVPEP1404008EN

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Overvoltage Category:

III

Maximum Output Frequency:

599 Hz

Type Of Polarization:

no impedance Modbus serial

Type Of Polarization:

no impedance

With Safety Function Safely Limited Position (Slp):

FALSE
