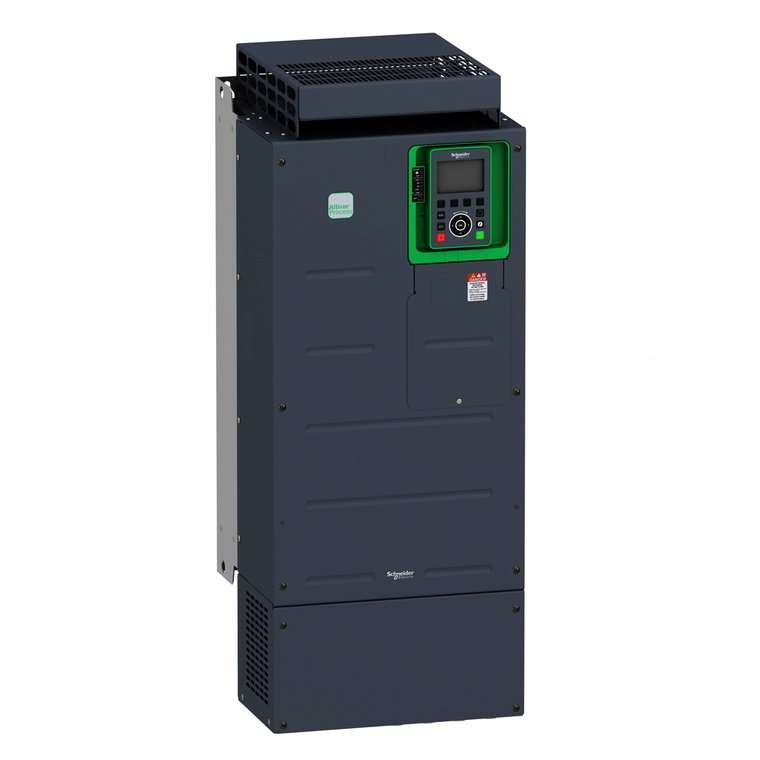

Schneider Electric ATV930D55S6 Atv930Ip20 75Hp 600V Variable Speed Dri

Schneider Electric ATV930D55S6 Atv930Ip20 75Hp 600V Variable Speed Dri

Schneider Electric
SKU:
ATV930D55S6
|
UPC:
3606481325075
$12,537.55
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
variable speed drive, Altivar Process ATV900, ATV930, 75hp, 600V, IP20
Additional Information
Acceleration And Deceleration Ramps:
S, U or customized || linear adjustable separately from 0.01...9999 s
Data Format:
8 bits, configurable odd, even or no parity
Product Destination:
asynchronous motors || synchronous motors
Upgradeability:
Upgraded components available
Type Of Polarization:
no impedance Modbus serial
Local Signalling:
local diagnostic 3 LED mono/dual colour) || presence of voltage 1 LED red) || embedded communication status 3 LED dual colour) || communication module status 4 LED dual colour)
Apparent Power:
72.9 kVA 600 V normal duty) || 62.8 kVA 600 V heavy duty)
Mercury Free:
Yes
Discrete Input Number:
10
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
With Safety Function Safe Position (Sp):
FALSE
Phase:
3 phase
Number Of Addresses:
1-247 Modbus serial
Standards:
UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Relative Symmetric Network Frequency Tolerance:
0.05
Brake Chopper Integrated:
TRUE
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Dissipation In W:
forced convection 965 W 600 V 2.5 kHz || natural convection 247 W 600 V 2.5 kHz
Transmission Frame:
RTU
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Continuous Output Current:
83 A 2.5 kHz normal duty || 62 A 2.5 kHz heavy duty
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Transmission Rate:
10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Net Weight:
55 kg
Maximum Output Voltage:
600.0 V
Maximum Output Frequency:
599 Hz
Range Of Product:
Altivar Process ATV900
With Safety Function Safe Programmable Logic:
FALSE
Transmission Rate:
10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s
Prospective Line Isc:
70 kA
Variant:
standard version || with braking chopper
Motor Slip Compensation:
not available in permanent magnet motor law || adjustable || can be suppressed || automatic whatever the load
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Isolation:
between power and control terminals
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Noise Level:
56 dB
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Operating Position:
vertical +/- 10 degree
Environmental Disclosure:
ENVPEP1706016EN
With Safety Function Safely Limited Position (Slp):
FALSE
Maximum Transient Current:
99.6 A 60 s normal duty) || 93 A 60 s heavy duty)
Rohs Exemption Information:
Yes
Discrete Input Logic:
16 preset speeds
Discrete Output Number:
2
Data Format:
8 bits, configurable odd, even or no parity Modbus serial
Asynchronous Motor Control Profile:
variable torque standard || optimized torque mode || constant torque standard
Degree Of Protection:
UL type 1
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Switching Frequency:
1...4.9 kHz adjustable || 2.5...4.9 kHz with derating factor
With Safety Function Safely Limited Speed (Sls):
TRUE
Communication Port Protocol:
Modbus TCP || EtherNet/IP || Modbus serial
Emc Filter:
integrated || with EMC plate option
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Connector Type:
2 RJ45 || 1 RJ45
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Device Application:
Industrial Application
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Relay Output Type:
configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
Assembly Style:
enclosed
Electrical Connection:
control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 35...50 mm² AWG 2...AWG 1 || motor screw terminal 35...50 mm² AWG 2...AWG 1 || DC bus screw terminal 35...50 mm² AWG 2...AWG 1
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Discrete Input Type:
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Product Certifications:
TÜV || CSA || UL
Ambient Air Temperature For Storage:
-40-70 °C
Ambient Air Transport Temperature:
-40-70 °C
Height:
822 mm
Physical Interface:
Ethernet || 2-wire RS 485
Nominal Switching Frequency:
2.5 kHz
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
With Safety Function Safe Operating Stop (Sos):
FALSE
Method Of Access:
slave Modbus TCP
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
Option Card:
slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module
Ip Degree Of Protection:
IP20
Width:
331 mm
Type Of Polarization:
no impedance
Marking:
CE
Quantity Per Set:
1
Product Specific Application:
process for industrial
Pollution Degree:
2
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Discrete Input Logic:
positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
Analogue Input Number:
3
Mounting Mode:
wall mount
Network Frequency:
50-60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
With Safety Function Safe Direction (Sdi):
FALSE
Number Of Addresses:
1-247
Regulation Loop:
adjustable PID regulator
With Safety Function Safe Torque Off (Sto):
TRUE
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Noise Level:
56 dB 86/188/EEC
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Discrete Output Type:
logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
600 V - 15...10 %
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Overvoltage Category:
III
Analogue Output Number:
2
Braking To Standstill:
by DC injection
Maximum Switching Current:
relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R
Volume Of Cooling Air:
406 m3/h
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
Circularity Profile:
ENVEOLI1706016EN
With Safety Function Safe Speed Monitor (Ssm):
FALSE
With Safety Function Safe Stop 1 (Ss1):
TRUE
Base Load Current At High Overload:
62.0 A
Depth:
297 mm
Product Or Component Type:
variable speed drive
Relay Output Number:
3
4 Quadrant Operation Possible:
TRUE
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
Environmental Characteristic:
chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3
Input Compatibility:
DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
Base Load Current At Low Overload:
83.0 A
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
