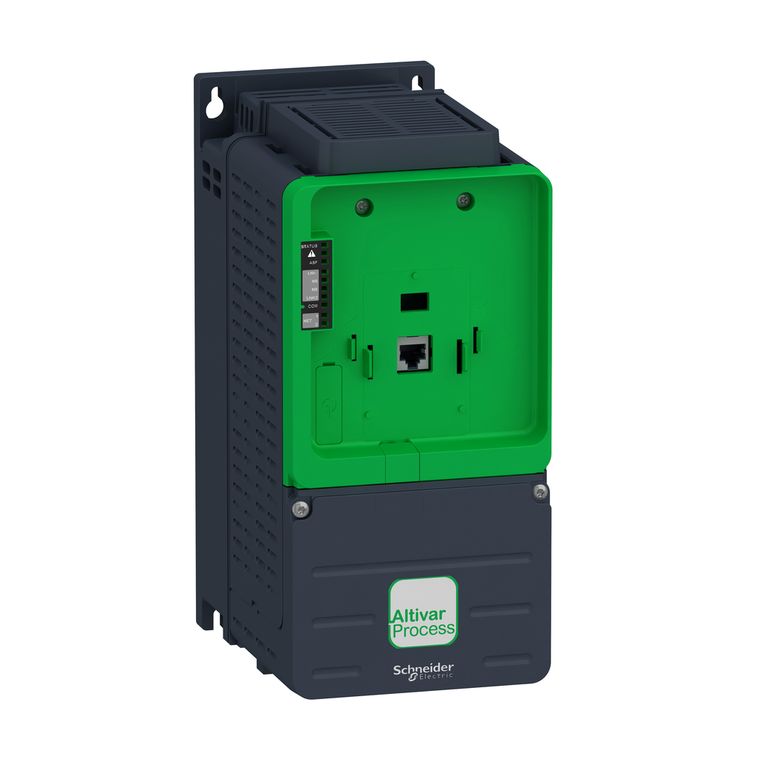

Schneider Electric ATV930U55N4ZU Atv930 T12 Rdy Ip20 7,5Hp 400V Wo Keypad

SKU:

ATV930U55N4ZU

UPC:

3606489740238

MPN:

Condition:

New

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Asynchronous Motor Control Profile:

optimized torque mode || variable torque standard || constant torque standard

Discrete Input Number:

10

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Variant:

standard version || with braking chopper

Volume Of Cooling Air:

38 m3/h

Communication Port Protocol:

EtherNet/IP || Modbus TCP || Modbus serial

Marking:

CE

Range Of Product:

Altivar Process ATV900

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Base Load Current At Low Overload:

12.7 A

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Data Format:

8 bits, configurable odd, even or no parity

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Pollution Degree:

2

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Network Frequency:

50-60 Hz

Phase:

3 phase

Analogue Input Number:

3

Method Of Access:

slave Modbus TCP

Sustainable Offer Status:

Green Premium product

Analogue Output Number:

2

Type Of Polarization:

no impedance Modbus serial

Transmission Frame:

RTU

Nominal Switching Frequency:

4 kHz

With Safety Function Safely Limited Speed (Sls):

TRUE

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Apparent Power:

7.6 kVA 480 V normal duty) || 6 kVA 480 V heavy duty)

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Noise Level:

54.5 dB 86/188/EEC

Power Dissipation In W:

natural convection 36 W 380 V 4 kHz || forced convection 145 W 380 V 4 kHz

Prospective Line Isc:

50 kA

Braking To Standstill:

by DC injection

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Rohs Exemption Information:

Yes

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Product Destination:

asynchronous motors || synchronous motors

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

With Safety Function Safe Direction (Sdi):

FALSE

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 2.5...6 mm² AWG 14...AWG 10 || DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10 || motor screw terminal 4...6 mm² AWG 12...AWG 10

Number Of Addresses:

1-247

China Rohs Regulation:

X

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Overvoltage Category:

III

Connector Type:

2 RJ45 || 1 RJ45

Discrete Output Number:

2

Assembly Style:

with heat sink

Maximum Transient Current:

15.2 A 60 s normal duty) || 14 A 60 s heavy duty)

Circularity Profile:

ENVEOLI2007009EN

Product Certifications:

TÜV || CSA || UL

Height:

285 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Physical Interface:

Ethernet || 2-wire RS 485

Product Or Component Type:

variable speed drive

Degree Of Protection:

UL type 12

Maximum Output Voltage:

480.0 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Base Load Current At High Overload:

9.3 A

Mounting Mode:

cabinet mount

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Polarization:

no impedance

Relay Output Number:

3

Motor Slip Compensation:

adjustable || can be suppressed || not available in permanent magnet motor law || automatic whatever the load

With Safety Function Safe Operating Stop (Sos):

FALSE

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

With Safety Function Safely Limited Position (Slp):

FALSE

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Device Application:

Industrial Application

Motor Power Kw:

5.5 kW normal duty || 4.0 kW heavy duty

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

With Safety Function Safe Programmable Logic:

FALSE

4 Quadrant Operation Possible:

TRUE

Number Of Addresses:

1-247 Modbus serial

Depth:

196 mm

Maximum Output Frequency:

599 Hz

With Safety Function Safe Position (Sp):

FALSE

Quantity Per Set:

1

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Relative Symmetric Network Frequency Tolerance:

0.05

Product Specific Application:

process for industrial

Noise Level:

54.5 dB

Ip Degree Of Protection:

IP21

Brake Chopper Integrated:

TRUE

Isolation:

between power and control terminals

Upgradeability:

Upgraded components available

Width:

130 mm

Environmental Disclosure:

ENVPEP2007009EN

Discrete Input Logic:

16 preset speeds

With Safety Function Safe Stop 1 (Ss1):

TRUE

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Regulation Loop:

adjustable PID regulator

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Maximum Thdi:

<48 % full load IEC 61000-3-12

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Ambient Air Transport Temperature:

-40-70 °C

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

With Safety Function Safe Torque Off (Sto):

TRUE

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Operating Position:

vertical +/- 10 degree

Continuous Output Current:

12.7 A 4 kHz normal duty || 9.3 A 4 kHz heavy duty

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Mercury Free:

Yes

Line Current:

10.4 A 380 V normal duty) || 8.0 A 380 V heavy duty) || 9.1 A 480 V normal duty) || 7.2 A 480 V heavy duty)

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Emc Filter:

integrated || with EMC plate option

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
