Schneider Electric

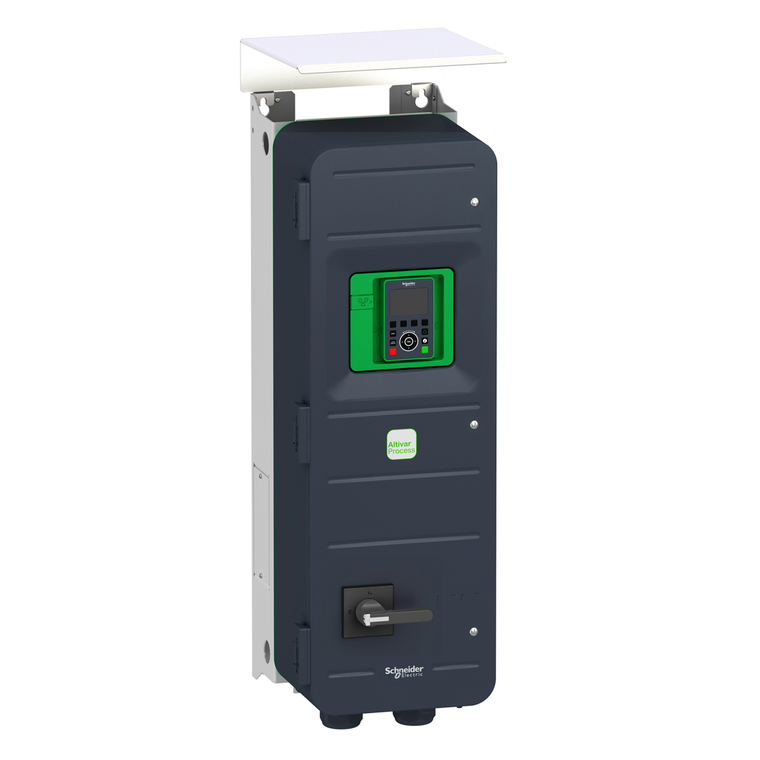

Schneider Electric ATV950D45N4EU Atv950 Ip55 Ultype12 45Kw 400V/480V With

SKU:

ATV950D45N4EU

UPC:

3606481284501

MPN:

Condition:

New

Discrete Input Logic:

16 preset speeds

Marking:

CE

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Ambient Air Transport Temperature:

-40-70 °C

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Noise Level:

69.7 dB

Asynchronous Motor Control Profile:

optimized torque mode || variable torque standard || constant torque standard

Continuous Output Current:

88 A 4 kHz normal duty || 74.5 A 4 kHz heavy duty

Net Weight:

52 kg

Pollution Degree:

2

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Motor Power Kw:

45.0 kW normal duty || 37.0 kW heavy duty

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Emc Filter:

integrated || with EMC plate option

Ambient Air Temperature For Storage:

-40-70 °C

Variant:

with load break switch || with braking chopper

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Product Specific Application:

process for industrial

Height:

910 mm

Product Destination:

asynchronous motors || synchronous motors

Maximum Output Frequency:

599 Hz

Type Of Polarization:

no impedance Modbus serial

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

With Safety Function Safe Operating Stop (Sos):

FALSE

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Analogue Input Number:

3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Depth:

401 mm

Relay Output Number:

3

Base Load Current At High Overload:

74.5 A

Discrete Input Number:

10

Number Of Addresses:

1-247

Connector Type:

2 RJ45 || 1 RJ45

Maximum Transient Current:

105.6 A 60 s normal duty) || 111.8 A 60 s heavy duty)

Isolation:

between power and control terminals

Analogue Output Number:

2

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

With Safety Function Safe Stop 1 (Ss1):

TRUE

Phase:

3 phase

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

With Safety Function Safe Torque Off (Sto):

TRUE

Device Application:

Industrial Application

Braking To Standstill:

by DC injection

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

With Safety Function Safe Direction (Sdi):

FALSE

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Discrete Output Number:

2

Operating Position:

vertical +/- 10 degree

Transmission Frame:

RTU

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Quantity Per Set:

1

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Output Voltage:

480.0 V

Upgradeability:

Upgraded components available

Range Of Product:

Altivar Process ATV900

Product Certifications:

ATEX INERIS || Bureau Veritas || TÜV || ABS || CSA || UL || DNV-GL

Noise Level:

69.7 dB 86/188/EEC

Motor Slip Compensation:

automatic whatever the load || adjustable || can be suppressed || not available in permanent magnet motor law

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Mounting Mode:

wall mount

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Relative Symmetric Network Frequency Tolerance:

0.05

Physical Interface:

Ethernet || 2-wire RS 485

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

With Safety Function Safe Position (Sp):

FALSE

Nominal Switching Frequency:

4 kHz

Assembly Style:

enclosed

Mercury Free:

Yes

Base Load Current At Low Overload:

88.0 A

Regulation Loop:

adjustable PID regulator

Product Or Component Type:

variable speed drive

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Network Frequency:

50-60 Hz

Width:

290 mm

With Safety Function Safe Programmable Logic:

FALSE

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Sustainable Offer Status:

Green Premium product

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

With Safety Function Safely Limited Speed (Sls):

TRUE

Prospective Line Isc:

50 kA

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Line Current:

79.8 A 380 V normal duty) || 67.1 A 380 V heavy duty) || 69.1 A 480 V normal duty) || 59.0 A 480 V heavy duty)

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Overvoltage Category:

III

Ambient Air Temperature For Operation:

-15-40 °C without derating) || 40-50 °C with derating factor)

Method Of Access:

slave Modbus TCP

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Data Format:

8 bits, configurable odd, even or no parity

With Safety Function Safely Limited Position (Slp):

FALSE

Apparent Power:

57.4 kVA 480 V normal duty) || 49.1 kVA 480 V heavy duty)

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Rohs Exemption Information:

Yes

Number Of Addresses:

1-247 Modbus serial

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

China Rohs Regulation:

X

Type Of Polarization:

no impedance

4 Quadrant Operation Possible:

TRUE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1506001EN

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Ip Degree Of Protection:

IP55

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Degree Of Protection:

UL type 12

Brake Chopper Integrated:

TRUE

Communication Port Protocol:

Modbus serial || Modbus TCP || EtherNet/IP

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Disclosure:

ENVPEP1506001EN

Electrical Connection:

control screw terminal 0.5...1.5 mm² || motor screw terminal 35...50 mm² || line side screw terminal 35...50 mm² || DC bus screw terminal 35...50 mm²
