Schneider Electric

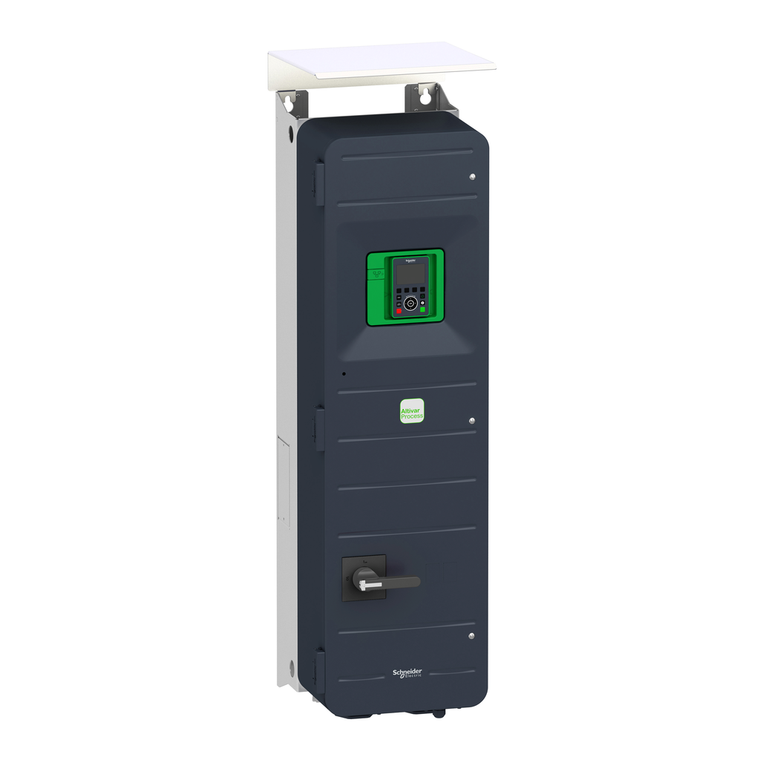

Schneider Electric ATV950D55N4EU Atv950 Ip55 Ultype12 55Kw 400V/480V With

SKU:

ATV950D55N4EU

UPC:

3.61E+12

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-15-40 °C without derating) || 40-50 °C with derating factor)

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Discrete Input Logic:

16 preset speeds

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Maximum Transient Current:

127.2 A 60 s normal duty) || 132 A 60 s heavy duty)

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Sustainable Offer Status:

Green Premium product

Relay Output Number:

3

Discrete Input Number:

10

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Mercury Free:

Yes

Regulation Loop:

adjustable PID regulator

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Noise Level:

69.9 dB

Isolation:

between power and control terminals

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Phase:

3 phase

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Product Destination:

synchronous motors || asynchronous motors

Connector Type:

2 RJ45 || 1 RJ45

Maximum Output Voltage:

480.0 V

Product Certifications:

ABS || UL || DNV-GL || TÜV || CSA || ATEX INERIS || Bureau Veritas

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

With Safety Function Safe Position (Sp):

FALSE

Net Weight:

89.3 kg

China Rohs Regulation:

X

With Safety Function Safe Operating Stop (Sos):

FALSE

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Communication Port Protocol:

Modbus TCP || EtherNet/IP || Modbus serial

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Data Format:

8 bits, configurable odd, even or no parity

Maximum Output Frequency:

599 Hz

Marking:

CE

Emc Filter:

integrated || with EMC plate option

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Ambient Air Transport Temperature:

-40-70 °C

Motor Power Kw:

55.0 kW normal duty || 45.0 kW heavy duty

Product Specific Application:

process for industrial

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

With Safety Function Safe Torque Off (Sto):

TRUE

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Analogue Input Number:

3

Relative Symmetric Network Frequency Tolerance:

0.05

Nominal Switching Frequency:

2.5 kHz

Type Of Polarization:

no impedance Modbus serial

Operating Position:

vertical +/- 10 degree

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Rohs Exemption Information:

Yes

Assembly Style:

enclosed

Number Of Addresses:

1-247 Modbus serial

Switching Frequency:

1...8 kHz adjustable || 2.5...8 kHz with derating factor

With Safety Function Safely Limited Position (Slp):

FALSE

Type Of Polarization:

no impedance

Degree Of Protection:

UL type 12

With Safety Function Safe Stop 1 (Ss1):

TRUE

Continuous Output Current:

106 A 2.5 kHz normal duty || 88 A 2.5 kHz heavy duty

Network Frequency:

50-60 Hz

With Safety Function Safe Direction (Sdi):

FALSE

Transmission Frame:

RTU

Base Load Current At High Overload:

88.0 A

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Number Of Addresses:

1-247

Electrical Connection:

control screw terminal 0.5...1.5 mm² || line side screw terminal 70...95 mm² || motor screw terminal 70...120 mm² || DC bus screw terminal 50...120 mm²

With Safety Function Safe Programmable Logic:

FALSE

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Height:

1250 mm

Physical Interface:

Ethernet || 2-wire RS 485

Pollution Degree:

2

Depth:

436 mm

Motor Slip Compensation:

not available in permanent magnet motor law || adjustable || can be suppressed || automatic whatever the load

Line Current:

97.2 A 380 V normal duty) || 81.4 A 380 V heavy duty) || 84.2 A 480 V normal duty) || 71.8 A 480 V heavy duty)

With Safety Function Safely Limited Speed (Sls):

TRUE

Device Application:

Industrial Application

Ambient Air Temperature For Storage:

-40-70 °C

Width:

345 mm

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Variant:

with braking chopper || with load break switch

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Discrete Output Number:

2

Range Of Product:

Altivar Process ATV900

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Prospective Line Isc:

50 kA

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Environmental Disclosure:

ENVPEP1506002EN

Noise Level:

69.9 dB 86/188/EEC

Ip Degree Of Protection:

IP55

Braking To Standstill:

by DC injection

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Overvoltage Category:

III

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Method Of Access:

slave Modbus TCP

Quantity Per Set:

1

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Analogue Output Number:

2

4 Quadrant Operation Possible:

TRUE

Upgradeability:

Upgraded components available

Base Load Current At Low Overload:

106.0 A

Mounting Mode:

wall mount

Circularity Profile:

ENVEOLI1506002EN

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Product Or Component Type:

variable speed drive

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Apparent Power:

70 kVA 480 V normal duty) || 59.7 kVA 480 V heavy duty)

Brake Chopper Integrated:

TRUE

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode
