Schneider Electric ATVRD15N4 Altivar Regenerative Unit 15Kw Variable

Schneider Electric ATVRD15N4 Altivar Regenerative Unit 15Kw Variable

Schneider Electric
SKU:
ATVRD15N4
|
UPC:
3.60648E+12
$5,100.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

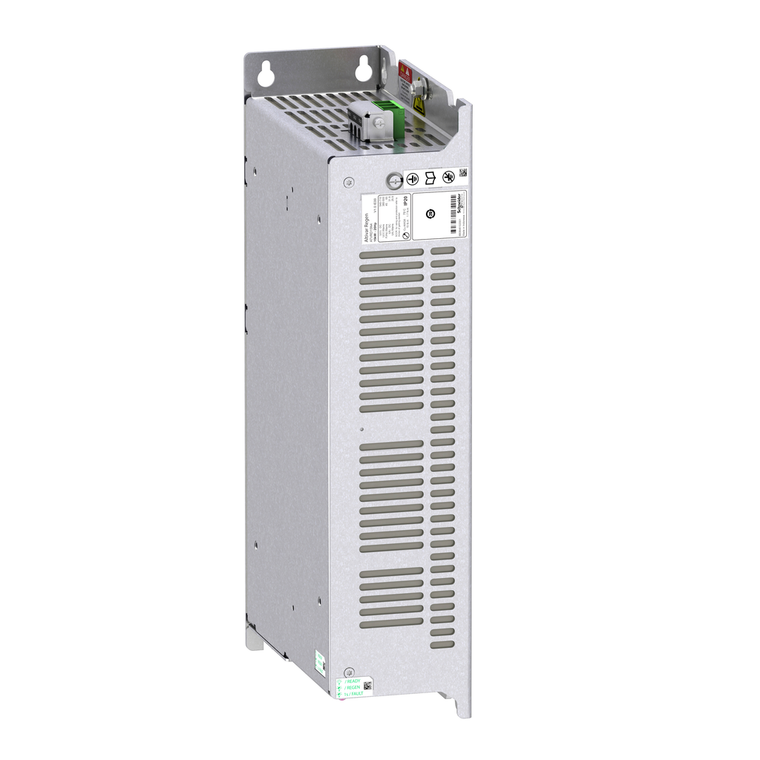

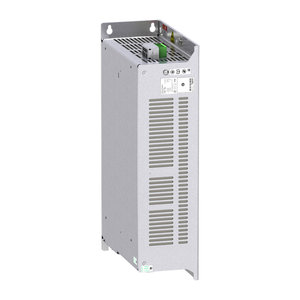

This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 15kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 11.5kg, and its dimensions are 105mm wide, 399mm high, 235mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Additional Information
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m
Standards:
IEC 61800-3 || IEC 61800-5-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Compatibility:
Altivar Machine ATV340 || Altivar Machine ATV320 || Altivar Process ATV900
Ambient Air Temperature For Storage:
-40-70 °C
Width:
105 mm
Output Current:
25.9 A 380 V AC continuous) || 23.2 A 500 V AC continuous) || 36.5 A 380 V AC transient for 60 s) || 29.7 A 500 V AC transient for 60 s)
Pollution Degree:
2 IEC 61800-5-1
[Us] Rated Supply Voltage:
380...500 V - 15...10 %
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
cUL
China Rohs Regulation:
X
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Type Of Cooling:
fan
Phase:
3 phase
Network Frequency:
45...65 Hz
Depth:
235 mm
Maximum Voltage Drop At Rated Load:
0.03
Electrical Connection:
control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom) || power supply removable screw terminal block 6 mm², AWG 8 top) || DC bus removable screw terminal block 6 mm², AWG 8 bottom)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Input Power:
13.5 kW 380...500 V AC voltage inputs continuous) || 20.3 kW 380...500 V AC voltage inputs transient for 60 s)
Maximum Dc Bus Voltage:
300...880 V DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Altivar
Upgradeability:
Upgraded components available
Kw Rating:
13.5 kW
Height:
399 mm
Device Application:
energy regeneration
Net Weight:
11.5 kg
Environmental Disclosure:
ENVPEP1608001EN
Product Or Component Type:
power module
Operating Position:
vertical or horizontal position
Circularity Profile:
ENVEOLI1608001EN
Sustainable Offer Status:
Green Premium product
Input Current:
31.8 A 380 V AC voltage inputs continuous) || 27.9 A 500 V AC voltage inputs continuous) || 43.1 A 380 V AC voltage inputs transient for 60 s) || 36.3 A 500 V AC voltage inputs transient for 60 s)
Environmental Characteristic:
chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S2 IEC 60721-3-3
Fixing Mode:
by screws
[Ue] Rated Operational Voltage:
456...778 V DC
Ambient Air Temperature For Operation:
-10-50 °C without derating || 50-60 °C with derating factor
Catalog:
View
Datasheet:
View
