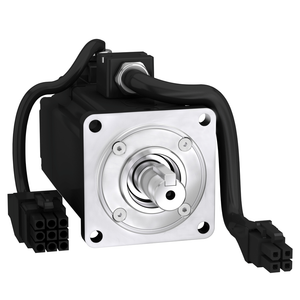

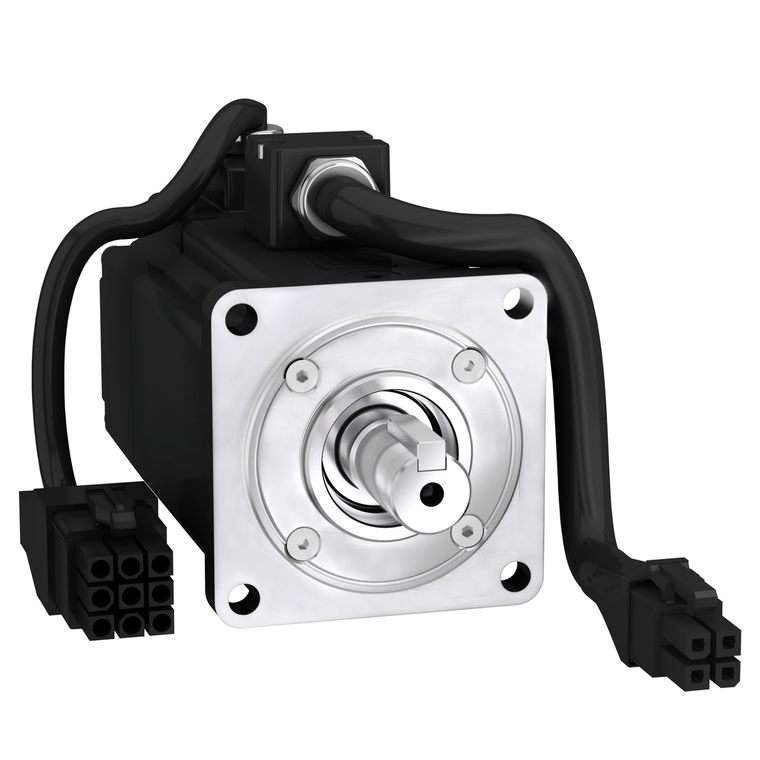

Schneider Electric BCH2LD0433CA5C 60Mm 400W 20Bit E. Oil S. Key Leads

Schneider Electric BCH2LD0433CA5C 60Mm 400W 20Bit E. Oil S. Key Leads

Schneider Electric
SKU:
BCH2LD0433CA5C
|
UPC:
3.60648E+12
$594.30
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.19A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 129mm (Length) x 60mm (Width), centring collar dimensions are 5.5mm (Depth) x 50mm (Diameter) with 70mm circle diameter of the mounting hole. It weighs 1.45kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 60mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Additional Information
Sustainable Offer Status:
Green Premium product
Shaft Length:
30 mm
Type Of Cooling:
natural convection
Phase:
three phase || single phase
Mounting Holes Diameter:
5.5 mm
Key Width:
5 mm
Continuous Stall Current:
2.19 A
Centring Collar Diameter:
50 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Back Emf Constant:
35 V/krpm 20 °C
Peak Stall Torque:
3.81 N.m LXM26D 2.6 A, 220 V, single phase || 3.81 N.m LXM26D 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Maximum Current Irms:
7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
Circularity Profile:
ENVEOLI1504002EN
Stator Resistance:
5.2 Ohm 20 °C
Product Compatibility:
LXM26D servo drive 0.4 kW, 220 V, single phase || LXM26D servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
Length:
129 mm
Circle Diameter Of The Mounting Holes:
70 mm
Range Compatibility:
Lexium 28
Nominal Output Power:
400 W LXM26D 2.6 A, 220 V, single phase || 400 W LXM26D 2.6 A, 220 V, three phase || 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Continuous Stall Torque:
1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Maximum Mechanical Speed:
5000 rpm
Product Or Component Type:
servo motor
Mounting Support:
asian standard flange
Number Of Mounting Holes:
4
Holding Brake:
without
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Torque Constant:
0.58 N.m/A 20 °C
Nominal Torque:
1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Device Short Name:
BCH2
Maximum Axial Force Fa:
70 N
Environmental Disclosure:
ENVPEP1504002EN
Net Weight:
1.45 kg
China Rohs Regulation:
X
Continuous Power:
400 W
Pvc Free:
Yes
[Us] Rated Supply Voltage:
220 V || 110 V
Electrical Connection:
free lead
Reach Free Of Svhc:
Yes
Motor Flange Size:
60 mm
Distance Shaft Shoulder-Flange:
5.5 mm
Stator Electrical Time Constant:
2.31 ms 20 °C
Maximum Permanent Current:
2.5 A
Rotor Inertia:
0.27 kg.cm²
Number Of Motor Stacks:
2
Maximum Radial Force Fr:
200 N 3000 rpm
Stator Inductance:
12 mH 20 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft End:
keyed
Shaft Diameter:
14 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Feedback Type:
20 bits single turn absolute encoder
Ambient Air Temperature For Operation:
-20-40 °C
Mercury Free:
Yes
Brake Pull-In Power:
11.2 W
Rohs Exemption Information:
Yes
Nominal Speed:
3000 rpm LXM26D 2.6 A, 220 V, single phase || 3000 rpm LXM26D 2.6 A, 220 V, three phase || 3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Centring Collar Depth:
5.5 mm
Catalog:
View
Datasheet:
View
