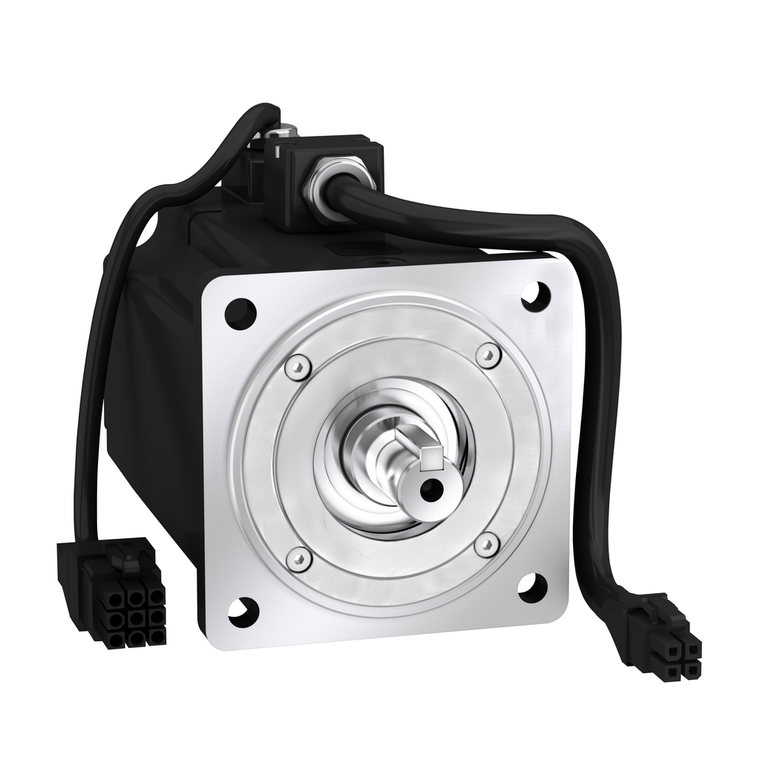

Schneider Electric BCH2LF0433CF5C 80Mm 400W 20Bit E. Oil S. Key Brk Leads

SKU:

BCH2LF0433CF5C

UPC:

3606480733710

MPN:

Condition:

New

Continuous Power:

400 W

Rohs Exemption Information:

Yes

Torque Constant:

0.55 N.m/A 20 °C

Reach Free Of Svhc:

Yes

Nominal Torque:

1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase

Maximum Current Irms:

7.73 A LXM28... 0.4 kW, 220 V || 7.73 A LXM28... 0.4 kW, 110 V

Maximum Axial Force Fa:

115 N

Mercury Free:

Yes

Device Short Name:

BCH2

Shaft Length:

30 mm

Rotor Inertia:

0.72 kg.cm²

Centring Collar Depth:

4 mm

Centring Collar Diameter:

70 mm

Stator Inductance:

11.3 mH 20 °C

Product Compatibility:

LXM26D servo drive 0.4 kW, 220 V, single phase || LXM26D servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase

Shaft Diameter:

14 mm

Nominal Output Power:

400 W LXM26D 2.6 A, 220 V, single phase || 400 W LXM26D 2.6 A, 220 V, three phase || 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase

Maximum Permanent Current:

2.52 A

Continuous Stall Torque:

1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase

Continuous Stall Current:

2.29 A

Motor Flange Size:

80 mm

Phase:

three phase || single phase

Maximum Radial Force Fr:

332 N 3000 rpm

Distance Shaft Shoulder-Flange:

4 mm

Net Weight:

2.8 kg

Ambient Air Temperature For Operation:

0-40 °C

Key Width:

5 mm

Stator Electrical Time Constant:

3.53 ms 20 °C

Product Or Component Type:

servo motor

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

ENVEOLI1504002EN

Feedback Type:

20 bits single turn absolute encoder

Back Emf Constant:

33.5 V/krpm 20 °C

Length:

152 mm

Pvc Free:

Yes

Holding Torque:

2.5 N.m built-in

Mounting Support:

asian standard flange

Nominal Speed:

3000 rpm LXM26D 2.6 A, 220 V, single phase || 3000 rpm LXM26D 2.6 A, 220 V, three phase || 3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase

Circle Diameter Of The Mounting Holes:

90 mm

Shaft End:

keyed

Electrical Connection:

free lead

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

220 V || 110 V

Range Compatibility:

Lexium 28

China Rohs Regulation:

X

Maximum Mechanical Speed:

5000 rpm

Peak Stall Torque:

3.81 N.m LXM26D 2.6 A, 220 V, single phase || 3.81 N.m LXM26D 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase

Holding Brake:

with

Number Of Motor Stacks:

1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Brake Pull-In Power:

10.2 W

Mounting Holes Diameter:

6.6 mm

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Stator Resistance:

3.2 Ohm 20 °C

Environmental Disclosure:

ENVPEP1504002EN

Number Of Mounting Holes:

4

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Cooling:

natural convection
