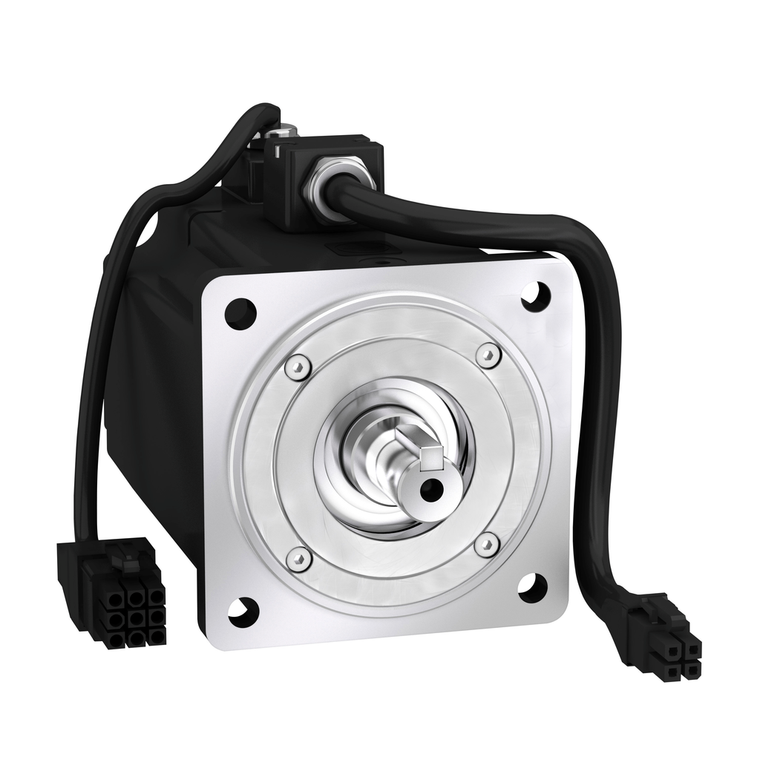

Schneider Electric BCH2LF0732CA5C 80Mm 750W 20Bit E. Oil S. Leads
SKU:
BCH2LF0732CA5C
UPC:
3606480733840
MPN:
Condition:
New
Maximum Current Irms:
13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
Motor Flange Size:
80 mm
Electrical Connection:
free lead
Product Compatibility:
LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
Type Of Cooling:
natural convection
Centring Collar Diameter:
70 mm
Nominal Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Nominal Output Power:
750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
Stator Inductance:
6.1 mH 20 °C
Mercury Free:
Yes
Device Short Name:
BCH2
Stator Resistance:
1.5 Ohm 20 °C
Number Of Mounting Holes:
4
Continuous Power:
750 W
Peak Stall Torque:
7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Number Of Motor Stacks:
2
Net Weight:
2.8 kg
Circle Diameter Of The Mounting Holes:
90 mm
Maximum Radial Force Fr:
332 N 3000 rpm
Maximum Permanent Current:
4.29 A
Torque Constant:
0.6 N.m/A 20 °C
Mounting Holes Diameter:
6.6 mm
Circularity Profile:
ENVEOLI1504002EN
Reach Free Of Svhc:
Yes
Feedback Type:
20 bits single turn absolute encoder
Range Compatibility:
Lexium 28
Brake Pull-In Power:
10.2 W
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Electrical Time Constant:
4.07 ms 20 °C
Length:
138 mm
Ambient Air Temperature For Operation:
-20-40 °C
Centring Collar Depth:
4 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Phase:
three phase || single phase
Product Or Component Type:
servo motor
Maximum Mechanical Speed:
5000 rpm
Shaft End:
smooth shaft
Sustainable Offer Status:
Green Premium product
Shaft Length:
35 mm
Nominal Speed:
3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Axial Force Fa:
115 N
Distance Shaft Shoulder-Flange:
4 mm
Rohs Exemption Information:
Yes
Holding Brake:
without
Continuous Stall Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Rotor Inertia:
1.19 kg.cm²
Environmental Disclosure:
ENVPEP1504002EN
Shaft Diameter:
19 mm
Continuous Stall Current:
4.01 A
China Rohs Regulation:
X
Back Emf Constant:
36 V/krpm 20 °C
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Mounting Support:
asian standard flange
[Us] Rated Supply Voltage:
220 V || 110 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
