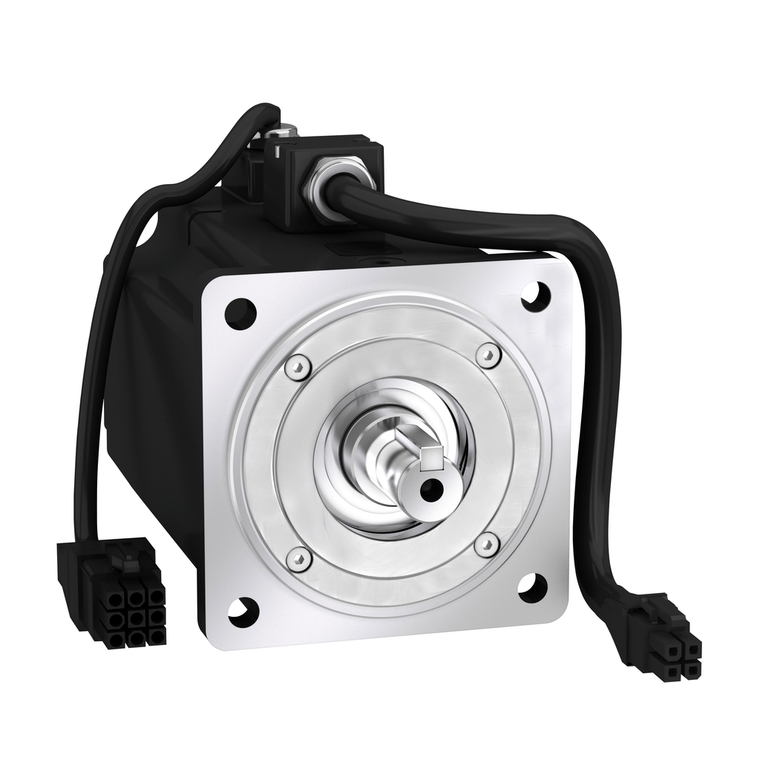

Schneider Electric BCH2LF0732CF5C 80Mm 750W 20Bit E. Oil S. Brk Leads
SKU:
BCH2LF0732CF5C
UPC:
3606480733857
MPN:
Condition:
New
Brake Pull-In Power:
10.2 W
Number Of Motor Stacks:
2
Device Short Name:
BCH2
Stator Inductance:
6.1 mH 20 °C
Stator Electrical Time Constant:
4.07 ms 20 °C
Torque Constant:
0.6 N.m/A 20 °C
Feedback Type:
20 bits single turn absolute encoder
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Distance Shaft Shoulder-Flange:
4 mm
Centring Collar Depth:
4 mm
Mounting Support:
asian standard flange
Ambient Air Temperature For Operation:
0-40 °C
Phase:
three phase || single phase
Range Compatibility:
Lexium 28
Rotor Inertia:
1.24 kg.cm²
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Continuous Stall Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Continuous Power:
750 W
Environmental Disclosure:
ENVPEP1504002EN
Shaft End:
smooth shaft
Nominal Output Power:
750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Peak Stall Torque:
7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Sustainable Offer Status:
Green Premium product
Nominal Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Maximum Permanent Current:
4.29 A
Shaft Diameter:
19 mm
Centring Collar Diameter:
70 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection:
free lead
Circle Diameter Of The Mounting Holes:
90 mm
China Rohs Regulation:
X
Mounting Holes Diameter:
6.6 mm
Holding Brake:
with
Maximum Radial Force Fr:
332 N 3000 rpm
Motor Flange Size:
80 mm
Maximum Current Irms:
13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
[Us] Rated Supply Voltage:
220 V || 110 V
Product Or Component Type:
servo motor
Maximum Axial Force Fa:
115 N
Holding Torque:
2.5 N.m built-in
Continuous Stall Current:
4.01 A
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Shaft Length:
35 mm
Length:
178 mm
Net Weight:
3.6 kg
Circularity Profile:
ENVEOLI1504002EN
Rohs Exemption Information:
Yes
Product Compatibility:
LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
Nominal Speed:
3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
