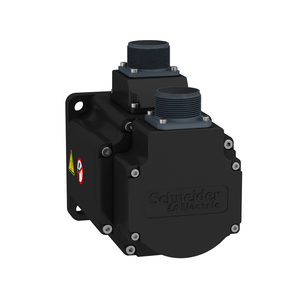

Schneider Electric BCH2LH1032CA6C 100Mm 1000W 20Bit E. Oil S. Mil

Schneider Electric BCH2LH1032CA6C 100Mm 1000W 20Bit E. Oil S. Mil

Schneider Electric
SKU:
BCH2LH1032CA6C
|
UPC:
3606480734007
$2,084.73
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
servo motor BCH, Lexium 28, 100mm, 1000W, 2.4kg.cm², with oil seal, smooth, straight connection
Additional Information
Number Of Motor Stacks:
1
Peak Stall Torque:
9.54 N.m LXM28... 7 A, 220 V, single phase || 9.54 N.m LXM28... 7 A, 220 V, three phase
Holding Brake:
without
Centring Collar Depth:
7 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1504002EN
[Us] Rated Supply Voltage:
220 V
Sustainable Offer Status:
Green Premium product
Motor Flange Size:
100 mm
Net Weight:
4.6 kg
Stator Electrical Time Constant:
6.27 ms 20 °C
Brake Pull-In Power:
10.4 W
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Distance Shaft Shoulder-Flange:
7 mm
Product Compatibility:
LXM28... servo drive 1 kW, 220 V, single phase || LXM28... servo drive 1 kW, 220 V, three phase
Length:
153.5 mm
Stator Inductance:
4.2 mH 20 °C
Shaft End:
smooth shaft
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Mounting Support:
asian standard flange
Type Of Cooling:
natural convection
Shaft Length:
45 mm
Ambient Air Temperature For Operation:
-20-40 °C
Number Of Mounting Holes:
4
Torque Constant:
0.55 N.m/A 20 °C
Stator Resistance:
0.67 Ohm 20 °C
Continuous Power:
1000 W
Maximum Permanent Current:
6.64 A
Electrical Connection:
connector MIL
China Rohs Regulation:
X
Nominal Speed:
3000 rpm LXM28... 7 A, 220 V, single phase || 3000 rpm LXM28... 7 A, 220 V, three phase
Centring Collar Diameter:
95 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Mercury Free:
Yes
Continuous Stall Torque:
3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Maximum Axial Force Fa:
200 N
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
570 N 3000 rpm
Maximum Mechanical Speed:
5000 rpm
Reach Free Of Svhc:
Yes
Feedback Type:
20 bits single turn absolute encoder
Back Emf Constant:
33 V/krpm 20 °C
Device Short Name:
BCH2
Environmental Disclosure:
ENVPEP1504002EN
Range Compatibility:
Lexium 28
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Torque:
3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Phase:
single phase || three phase
Maximum Current Irms:
18.9 A LXM28... 1 kW, 220 V
Circle Diameter Of The Mounting Holes:
115 mm
Shaft Diameter:
22 mm
Rotor Inertia:
2.4 kg.cm²
Mounting Holes Diameter:
9.2 mm
Nominal Output Power:
1000 W LXM28... 7 A, 220 V, single phase || 1000 W LXM28... 7 A, 220 V, three phase
Continuous Stall Current:
5.83 A
