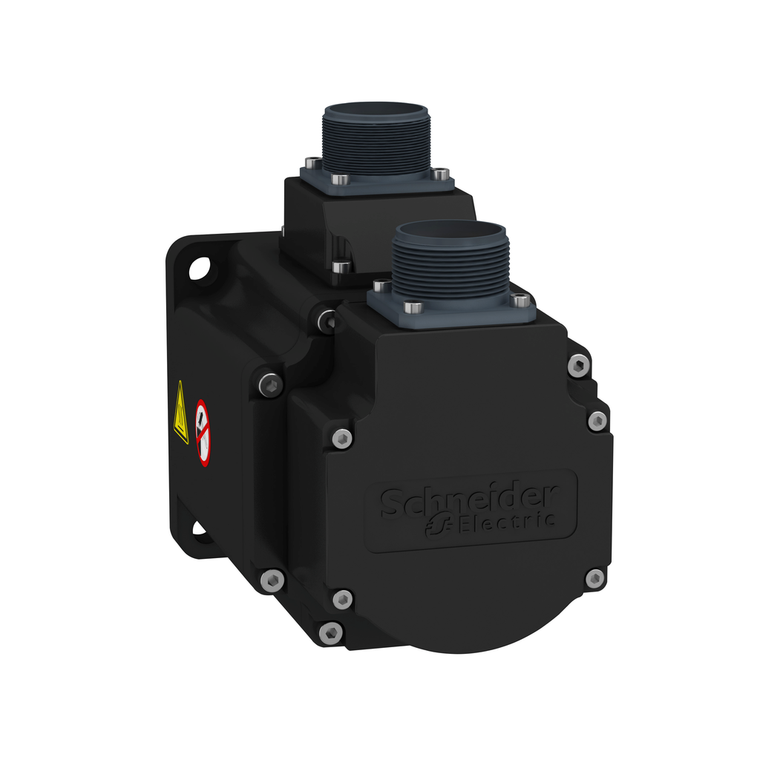

Schneider Electric BCH2LH2033CF6C 100Mm 2000W 20Bit E. Oil S. Key Brk Mil
SKU:
BCH2LH2033CF6C
UPC:
3606480734113
MPN:
Condition:
New
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Stator Inductance:
2.59 mH 20 °C
Maximum Current Irms:
32.3 A LXM26D 2 kW, 220 V || 32.3 A LXM28... 2 kW, 220 V
Number Of Mounting Holes:
4
Product Or Component Type:
servo motor
Mounting Holes Diameter:
9.2 mm
Type Of Cooling:
natural convection
Torque Constant:
0.65 N.m/A 20 °C
Circle Diameter Of The Mounting Holes:
115 mm
Stator Electrical Time Constant:
7.19 ms 20 °C
Pvc Free:
Yes
Length:
225.5 mm
Maximum Axial Force Fa:
200 N
Shaft Diameter:
22 mm
Shaft Length:
45 mm
Net Weight:
7.2 kg
Reach Free Of Svhc:
Yes
Range Compatibility:
Lexium 28
Maximum Radial Force Fr:
570 N 3000 rpm
Device Short Name:
BCH2
Sustainable Offer Status:
Green Premium product
Feedback Type:
20 bits single turn absolute encoder
Nominal Output Power:
2000 W LXM26D 12 A, 220 V, three phase || 2000 W LXM28... 12 A, 220 V, three phase
Peak Stall Torque:
19.11 N.m LXM26D 12 A, 220 V, three phase || 19.11 N.m LXM28... 12 A, 220 V, three phase
Phase:
three phase
[Us] Rated Supply Voltage:
220 V
Key Width:
8 mm
Continuous Stall Current:
9.87 A
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1504002EN
Nominal Torque:
6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase
Back Emf Constant:
39 V/krpm 20 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Holding Torque:
6.5 N.m built-in
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Continuous Stall Torque:
6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase
Environmental Disclosure:
ENVPEP1504002EN
Shaft End:
keyed
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility:
LXM26D servo drive 2 kW, 220 V, three phase || LXM28... servo drive 2 kW, 220 V, three phase
Motor Flange Size:
100 mm
Distance Shaft Shoulder-Flange:
7 mm
Centring Collar Diameter:
95 mm
Ambient Air Temperature For Operation:
0-40 °C
Electrical Connection:
connector MIL
Maximum Mechanical Speed:
5000 rpm
Mercury Free:
Yes
Mounting Support:
asian standard flange
Rohs Exemption Information:
Yes
Centring Collar Depth:
7 mm
Number Of Motor Stacks:
2
Continuous Power:
2000 W
Stator Resistance:
0.36 Ohm 20 °C
Rotor Inertia:
4.35 kg.cm²
Maximum Permanent Current:
10.27 A
Holding Brake:
with
Nominal Speed:
3000 rpm LXM26D 12 A, 220 V, three phase || 3000 rpm LXM28... 12 A, 220 V, three phase
