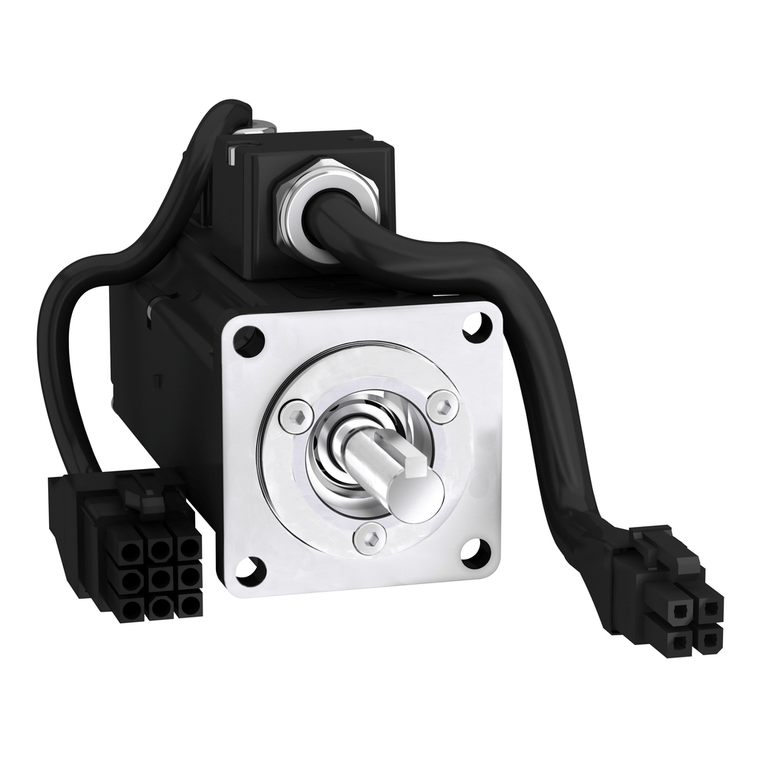

Schneider Electric BCH2MB0130CA5C 40Mm 100W 20Bit E. Leads
SKU:
BCH2MB0130CA5C
UPC:
3606480733406
MPN:
Condition:
New
Circle Diameter Of The Mounting Holes:
46 mm
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
Shaft Diameter:
8 mm
Phase:
single phase || three phase
Nominal Torque:
0.32 N.m LXM28... 0.9 A, 220 V, single phase || 0.32 N.m LXM28... 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 1.8 A, 110 V, single phase
Continuous Power:
100 W
Length:
100 mm
Distance Shaft Shoulder-Flange:
3 mm
Stator Electrical Time Constant:
0.88 ms 20 °C
Product Compatibility:
LXM28... servo drive 0.1 kW, 220 V, single phase || LXM28... servo drive 0.1 kW, 220 V, three phase || LXM28... servo drive 0.1 kW, 110 V, single phase
Peak Stall Torque:
0.96 N.m LXM28... 0.9 A, 220 V, single phase || 0.96 N.m LXM28... 0.9 A, 220 V, three phase || 0.96 N.m LXM28... 1.8 A, 110 V, single phase
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Nominal Speed:
3000 rpm LXM28... 0.9 A, 220 V, single phase || 3000 rpm LXM28... 0.9 A, 220 V, three phase || 3000 rpm LXM28... 1.8 A, 110 V, single phase
Ambient Air Temperature For Operation:
-20-40 °C
Centring Collar Depth:
3 mm
Torque Constant:
0.4 N.m/A 20 °C
Maximum Radial Force Fr:
85 N 3000 rpm
Maximum Permanent Current:
0.89 A
Reach Free Of Svhc:
Yes
Stator Resistance:
23.4 Ohm 20 °C
Device Short Name:
BCH2
Maximum Axial Force Fa:
40 N
Motor Flange Size:
40 mm
Stator Inductance:
20.6 mH 20 °C
Number Of Motor Stacks:
2
Back Emf Constant:
24 V/krpm 20 °C
Shaft Length:
25 mm
Electrical Connection:
free lead
Nominal Output Power:
100 W LXM28... 0.9 A, 220 V, single phase || 100 W LXM28... 0.9 A, 220 V, three phase || 100 W LXM28... 1.8 A, 110 V, single phase
Rotor Inertia:
0.075 kg.cm²
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
servo motor
Pvc Free:
Yes
Brake Pull-In Power:
4.35 W
Holding Brake:
without
Sustainable Offer Status:
Green Premium product
Maximum Mechanical Speed:
5000 rpm
Shaft End:
smooth shaft
Mounting Holes Diameter:
4.5 mm
Maximum Current Irms:
2.65 A LXM28... 0.1 kW, 220 V || 2.65 A LXM28... 0.1 kW, 110 V
Continuous Stall Current:
0.81 A
Range Compatibility:
Lexium 28
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Mounting Holes:
4
Net Weight:
0.56 kg
Continuous Stall Torque:
0.32 N.m LXM28... 0.9 A, 220 V, single phase || 0.32 N.m LXM28... 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 1.8 A, 110 V, single phase
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
