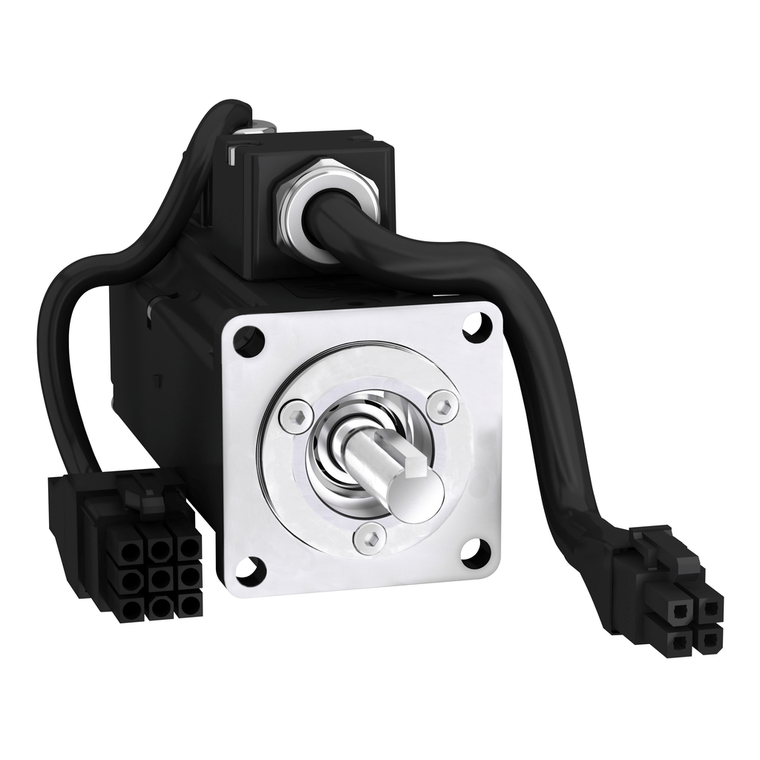

Schneider Electric BCH2MB0132CF5C 40Mm 100W 20Bit E. Oil S. Brk Leads

Schneider Electric BCH2MB0132CF5C 40Mm 100W 20Bit E. Oil S. Brk Leads

Schneider Electric
SKU:
BCH2MB0132CF5C
|
UPC:
3606480733451
$2,058.68
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor BCH, Lexium 28, 40mm, 100W, with oil seal, smooth, brake, leads connection
Additional Information
Stator Resistance:
23.4 Ohm 20 °C
Phase:
single phase || three phase
Torque Constant:
0.4 N.m/A 20 °C
Product Or Component Type:
servo motor
Circle Diameter Of The Mounting Holes:
46 mm
Centring Collar Diameter:
30 mm
Maximum Current Irms:
2.65 A LXM28... 0.1 kW, 220 V || 2.65 A LXM28... 0.1 kW, 110 V
Number Of Mounting Holes:
4
Mercury Free:
Yes
Nominal Speed:
3000 rpm LXM28... 0.9 A, 220 V, single phase || 3000 rpm LXM28... 0.9 A, 220 V, three phase || 3000 rpm LXM28... 1.8 A, 110 V, single phase
Holding Brake:
with
Mounting Support:
asian standard flange
Brake Pull-In Power:
4.35 W
Length:
130 mm
Stator Electrical Time Constant:
0.88 ms 20 °C
Maximum Permanent Current:
0.89 A
Peak Stall Torque:
0.96 N.m LXM28... 0.9 A, 220 V, single phase || 0.96 N.m LXM28... 0.9 A, 220 V, three phase || 0.96 N.m LXM28... 1.8 A, 110 V, single phase
Ambient Air Temperature For Operation:
0-40 °C
Continuous Stall Current:
0.81 A
Net Weight:
0.77 kg
Reach Free Of Svhc:
Yes
Motor Flange Size:
40 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Mechanical Speed:
5000 rpm
Back Emf Constant:
24 V/krpm 20 °C
Shaft Length:
25 mm
Device Short Name:
BCH2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
free lead
Number Of Motor Stacks:
2
Holding Torque:
0.32 N.m built-in
Shaft End:
smooth shaft
Distance Shaft Shoulder-Flange:
3 mm
Nominal Torque:
0.32 N.m LXM28... 0.9 A, 220 V, single phase || 0.32 N.m LXM28... 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 1.8 A, 110 V, single phase
Nominal Output Power:
100 W LXM28... 0.9 A, 220 V, single phase || 100 W LXM28... 0.9 A, 220 V, three phase || 100 W LXM28... 1.8 A, 110 V, single phase
Maximum Radial Force Fr:
85 N 3000 rpm
Maximum Axial Force Fa:
40 N
Shaft Diameter:
8 mm
Feedback Type:
20 bits single turn absolute encoder
Type Of Cooling:
natural convection
Mounting Holes Diameter:
4.5 mm
[Us] Rated Supply Voltage:
220 V || 110 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1504002EN
Product Compatibility:
LXM28... servo drive 0.1 kW, 220 V, single phase || LXM28... servo drive 0.1 kW, 220 V, three phase || LXM28... servo drive 0.1 kW, 110 V, single phase
Continuous Power:
100 W
Centring Collar Depth:
3 mm
Rotor Inertia:
0.076 kg.cm²
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Continuous Stall Torque:
0.32 N.m LXM28... 0.9 A, 220 V, single phase || 0.32 N.m LXM28... 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 1.8 A, 110 V, single phase
Stator Inductance:
20.6 mH 20 °C
Circularity Profile:
ENVEOLI1504002EN
Sustainable Offer Status:
Green Premium product
Range Compatibility:
Lexium 28
