Schneider Electric BCH2MBA532CF5C 40Mm 50W 20Bit E. Oil S. Brk Leads

Schneider Electric BCH2MBA532CF5C 40Mm 50W 20Bit E. Oil S. Brk Leads

Schneider Electric
SKU:
BCH2MBA532CF5C
|
UPC:
3.60648E+12
$1,954.43
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

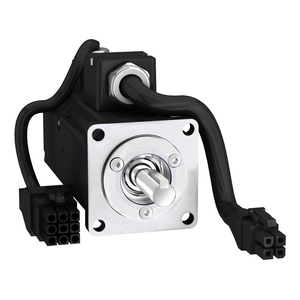

servo motor BCH, Lexium 28, 40mm, 50W, with oil seal, smooth, brake, leads connection
Additional Information
Continuous Stall Torque:
0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Holding Torque:
0.32 N.m built-in
Maximum Current Irms:
1.77 A LXM28... 0.05 kW, 220 V || 1.77 A LXM28... 0.05 kW, 110 V
Back Emf Constant:
18 V/krpm 20 °C
Continuous Stall Current:
0.54 A
Shaft End:
smooth shaft
Range Compatibility:
Lexium 28
Number Of Mounting Holes:
4
Shaft Length:
25 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
BCH2
Nominal Speed:
3000 rpm LXM28... 0.64 A, 220 V, single phase || 3000 rpm LXM28... 0.64 A, 220 V, three phase || 3000 rpm LXM28... 1.2 A, 110 V, single phase
Holding Brake:
with
Mercury Free:
Yes
Nominal Output Power:
50 W LXM28... 0.64 A, 220 V, single phase || 50 W LXM28... 0.64 A, 220 V, three phase || 50 W LXM28... 1.2 A, 110 V, single phase
Circularity Profile:
ENVEOLI1504002EN
Mounting Support:
asian standard flange
Electrical Connection:
free lead
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Brake Pull-In Power:
4.35 W
Peak Stall Torque:
0.48 N.m LXM28... 0.64 A, 220 V, single phase || 0.48 N.m LXM28... 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 1.2 A, 110 V, single phase
Distance Shaft Shoulder-Flange:
3 mm
Stator Resistance:
31 Ohm 20 °C
Maximum Axial Force Fa:
40 N
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Length:
112 mm
Continuous Power:
50 W
Number Of Motor Stacks:
1
Nominal Torque:
0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Feedback Type:
20 bits single turn absolute encoder
Rotor Inertia:
0.055 kg.cm²
Torque Constant:
0.3 N.m/A 20 °C
Phase:
three phase || single phase
Circle Diameter Of The Mounting Holes:
46 mm
Maximum Permanent Current:
0.59 A
Reach Free Of Svhc:
Yes
Centring Collar Depth:
3 mm
Ambient Air Temperature For Operation:
0-40 °C
Net Weight:
0.6 kg
Shaft Diameter:
8 mm
[Us] Rated Supply Voltage:
220 V || 110 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Maximum Mechanical Speed:
5000 rpm
Product Compatibility:
LXM28... servo drive 0.05 kW, 220 V, single phase || LXM28... servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 110 V, single phase
Stator Electrical Time Constant:
0.8 ms 20 °C
Maximum Radial Force Fr:
85 N 3000 rpm
Motor Flange Size:
40 mm
Stator Inductance:
24.7 mH 20 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Centring Collar Diameter:
30 mm
Environmental Disclosure:
ENVPEP1504002EN
Type Of Cooling:
natural convection
Mounting Holes Diameter:
4.5 mm
Product Or Component Type:
servo motor
Catalog:
View
Datasheet:
View
