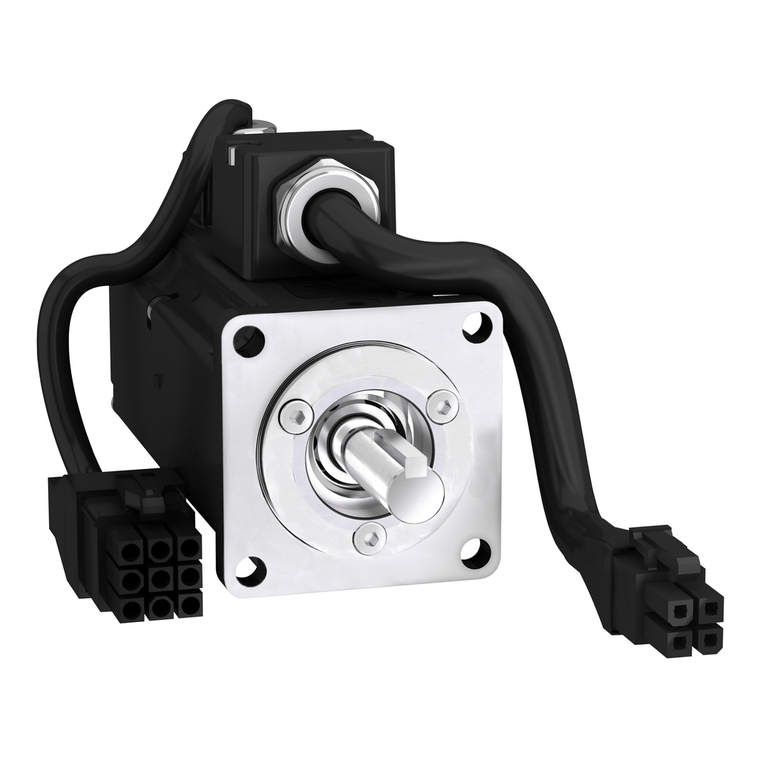

Schneider Electric BCH2MBA533CF5C 40Mm 50W 20Bit E. Oil S. Key Brk Leads
SKU:
BCH2MBA533CF5C
UPC:
3.60648E+12
MPN:
Condition:
New
Maximum Mechanical Speed:
5000 rpm
Electrical Connection:
free lead
Reach Free Of Svhc:
Yes
Nominal Torque:
0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Brake Pull-In Power:
4.35 W
Net Weight:
0.6 kg
Product Or Component Type:
servo motor
Mercury Free:
Yes
Holding Brake:
with
Mounting Support:
asian standard flange
Environmental Disclosure:
ENVPEP1504002EN
Stator Resistance:
31 Ohm 20 °C
Sustainable Offer Status:
Green Premium product
Peak Stall Torque:
0.48 N.m LXM26D 0.64 A, 220 V, single phase || 0.48 N.m LXM26D 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 0.64 A, 220 V, single phase || 0.48 N.m LXM28... 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 1.2 A, 110 V, single phase
Mounting Holes Diameter:
4.5 mm
Number Of Mounting Holes:
4
Nominal Output Power:
50 W LXM26D 0.64 A, 220 V, single phase || 50 W LXM26D 0.64 A, 220 V, three phase || 50 W LXM28... 0.64 A, 220 V, single phase || 50 W LXM28... 0.64 A, 220 V, three phase || 50 W LXM28... 1.2 A, 110 V, single phase
Rohs Exemption Information:
Yes
Shaft Diameter:
8 mm
Maximum Radial Force Fr:
85 N 3000 rpm
Centring Collar Diameter:
30 mm
Type Of Cooling:
natural convection
Circularity Profile:
ENVEOLI1504002EN
Continuous Stall Current:
0.54 A
Continuous Power:
50 W
Distance Shaft Shoulder-Flange:
3 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Phase:
single phase || three phase
Number Of Motor Stacks:
1
Continuous Stall Torque:
0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Stator Inductance:
24.7 mH 20 °C
Nominal Speed:
3000 rpm LXM26D 0.64 A, 220 V, single phase || 3000 rpm LXM26D 0.64 A, 220 V, three phase || 3000 rpm LXM28... 0.64 A, 220 V, single phase || 3000 rpm LXM28... 0.64 A, 220 V, three phase || 3000 rpm LXM28... 1.2 A, 110 V, single phase
Holding Torque:
0.32 N.m built-in
Pvc Free:
Yes
Feedback Type:
20 bits single turn absolute encoder
Maximum Current Irms:
1.77 A LXM28... 0.05 kW, 220 V || 1.77 A LXM28... 0.05 kW, 110 V
Maximum Permanent Current:
0.59 A
Motor Flange Size:
40 mm
Length:
112 mm
Range Compatibility:
Lexium 28
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
0-40 °C
Stator Electrical Time Constant:
0.8 ms 20 °C
Circle Diameter Of The Mounting Holes:
46 mm
Product Compatibility:
LXM26D servo drive 0.05 kW, 220 V, single phase || LXM26D servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 220 V, single phase || LXM28... servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 110 V, single
[Us] Rated Supply Voltage:
220 V || 110 V
Torque Constant:
0.3 N.m/A 20 °C
Shaft End:
keyed
Device Short Name:
BCH2
Maximum Axial Force Fa:
40 N
China Rohs Regulation:
X
Key Width:
3 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
