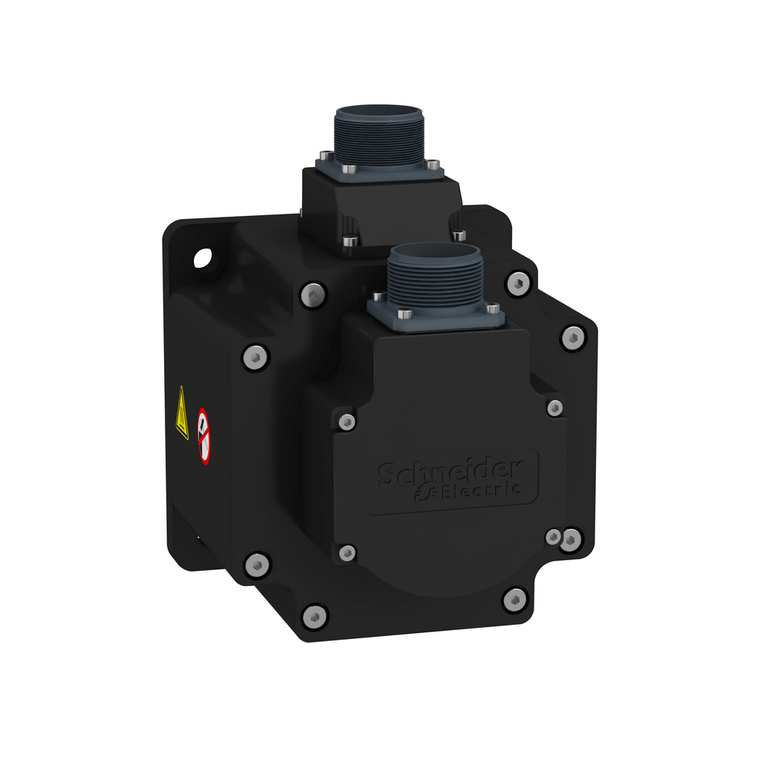

Schneider Electric BCH2MM0312CF6C 130Mm 300W 20Bit E. Oil S. Brk Mil
SKU:
BCH2MM0312CF6C
UPC:
3606480734496
MPN:
Condition:
New
Holding Torque:
9.6 N.m built-in
Number Of Mounting Holes:
4
Mounting Holes Diameter:
9.2 mm
Number Of Motor Stacks:
1
Type Of Cooling:
natural convection
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Maximum Mechanical Speed:
3000 rpm
Circularity Profile:
ENVEOLI1504002EN
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Phase:
three phase || single phase
Maximum Permanent Current:
2.09 A
Nominal Torque:
2.86 N.m LXM28... 2.6 A, 220 V, single phase || 2.86 N.m LXM28... 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 5.7 A, 110 V, single phase
Back Emf Constant:
92 V/krpm 20 °C
Stator Resistance:
1.93 Ohm 20 °C
Range Compatibility:
Lexium 28
Centring Collar Depth:
8 mm
Holding Brake:
with
Nominal Output Power:
300 W LXM28... 2.6 A, 220 V, single phase || 300 W LXM28... 2.6 A, 220 V, three phase || 300 W LXM28... 5.7 A, 110 V, single phase
Ambient Air Temperature For Operation:
0-40 °C
Circle Diameter Of The Mounting Holes:
145 mm
Maximum Radial Force Fr:
670 N 1000 rpm
Nominal Speed:
1000 rpm LXM28... 2.6 A, 220 V, single phase || 1000 rpm LXM28... 2.6 A, 220 V, three phase || 1000 rpm LXM28... 5.7 A, 110 V, single phase
Continuous Stall Current:
1.88 A
Product Or Component Type:
servo motor
Sustainable Offer Status:
Green Premium product
Shaft End:
smooth shaft
Motor Flange Size:
130 mm
[Us] Rated Supply Voltage:
220 V || 110 V
Continuous Stall Torque:
2.86 N.m LXM28... 2.6 A, 220 V, single phase || 2.86 N.m LXM28... 2.6 A, 220 V, three phase || 2.86 N.m LXM28... 5.7 A, 110 V, single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Electrical Time Constant:
12.9 ms 20 °C
Distance Shaft Shoulder-Flange:
8 mm
Environmental Disclosure:
ENVPEP1504002EN
Feedback Type:
20 bits single turn absolute encoder
Brake Pull-In Power:
19.7 W
Mercury Free:
Yes
Mounting Support:
asian standard flange
Stator Inductance:
24.9 mH 20 °C
Reach Free Of Svhc:
Yes
Maximum Axial Force Fa:
200 N
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Compatibility:
LXM28... servo drive 0.3 kW, 220 V, single phase || LXM28... servo drive 0.3 kW, 220 V, three phase || LXM28... servo drive 0.3 kW, 110 V, single phase
Torque Constant:
1.52 N.m/A 20 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Diameter:
22 mm
Peak Stall Torque:
8.59 N.m LXM28... 2.6 A, 220 V, single phase || 8.59 N.m LXM28... 2.6 A, 220 V, three phase || 8.59 N.m LXM28... 5.7 A, 110 V, single phase
Electrical Connection:
connector MIL
Length:
183 mm
Rohs Exemption Information:
Yes
Centring Collar Diameter:
110 mm
Continuous Power:
300 W
Shaft Length:
45 mm
China Rohs Regulation:
X
Rotor Inertia:
6.91 kg.cm²
Net Weight:
8.2 kg
Device Short Name:
BCH2
Maximum Current Irms:
5.98 A LXM28... 0.3 kW, 220 V || 5.98 A LXM28... 0.3 kW, 110 V
