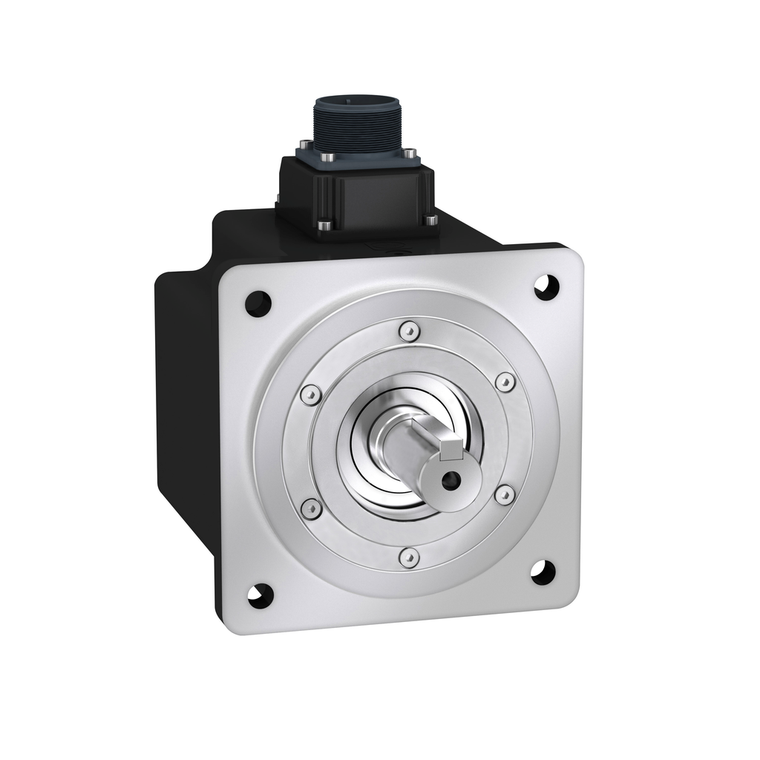

Schneider Electric BCH2MM0612CA6C 130Mm 600W 20Bit E. Oil S. Mil
SKU:
BCH2MM0612CA6C
UPC:
3.60648E+12
MPN:
Condition:
New
Ambient Air Temperature For Operation:
-20-40 °C
Distance Shaft Shoulder-Flange:
8 mm
Reach Free Of Svhc:
Yes
Maximum Current Irms:
13.44 A LXM28... 0.6 kW, 220 V || 13.44 A LXM28... 0.6 kW, 110 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Flange Size:
130 mm
Centring Collar Diameter:
110 mm
Device Short Name:
BCH2
Feedback Type:
20 bits single turn absolute encoder
Nominal Output Power:
600 W LXM28... 4.5 A, 220 V, single phase || 600 W LXM28... 4.5 A, 220 V, three phase || 600 W LXM28... 9 A, 110 V, single phase
Product Compatibility:
LXM28... servo drive 0.6 kW, 220 V, single phase || LXM28... servo drive 0.6 kW, 220 V, three phase || LXM28... servo drive 0.6 kW, 110 V, single phase
Mounting Holes Diameter:
9.2 mm
Back Emf Constant:
92 V/krpm 20 °C
Continuous Stall Current:
3.77 A
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Number Of Mounting Holes:
4
Shaft End:
smooth shaft
Stator Inductance:
24.9 mH 20 °C
Circle Diameter Of The Mounting Holes:
145 mm
Holding Brake:
without
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Nominal Torque:
5.73 N.m LXM28... 4.5 A, 220 V, single phase || 5.73 N.m LXM28... 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 9 A, 110 V, single phase
Length:
147 mm
[Us] Rated Supply Voltage:
220 V || 110 V
Shaft Length:
45 mm
Stator Resistance:
1.93 Ohm 20 °C
Continuous Stall Torque:
5.73 N.m LXM28... 4.5 A, 220 V, single phase || 5.73 N.m LXM28... 4.5 A, 220 V, three phase || 5.73 N.m LXM28... 9 A, 110 V, single phase
Phase:
three phase || single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Diameter:
22 mm
Product Or Component Type:
servo motor
Torque Constant:
1.52 N.m/A 20 °C
Type Of Cooling:
natural convection
Electrical Connection:
connector MIL
Rotor Inertia:
6.63 kg.cm²
Maximum Axial Force Fa:
200 N
Stator Electrical Time Constant:
12.9 ms 20 °C
Environmental Disclosure:
ENVPEP1504002EN
Mercury Free:
Yes
Peak Stall Torque:
17.19 N.m LXM28... 4.5 A, 220 V, single phase || 17.19 N.m LXM28... 4.5 A, 220 V, three phase || 17.19 N.m LXM28... 9 A, 110 V, single phase
Number Of Motor Stacks:
1
Continuous Power:
600 W
Maximum Permanent Current:
4.1 A
Mounting Support:
asian standard flange
Nominal Speed:
1000 rpm LXM28... 4.5 A, 220 V, single phase || 1000 rpm LXM28... 4.5 A, 220 V, three phase || 1000 rpm LXM28... 9 A, 110 V, single phase
Centring Collar Depth:
8 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Range Compatibility:
Lexium 28
Circularity Profile:
ENVEOLI1504002EN
Net Weight:
7 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
