Schneider Electric BCH2MM1023CA6C 130Mm 1000W 20Bit E. Oil S. Key Mil

Schneider Electric BCH2MM1023CA6C 130Mm 1000W 20Bit E. Oil S. Key Mil

Schneider Electric
SKU:
BCH2MM1023CA6C
|
UPC:
3606480734267
$1,053.95
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

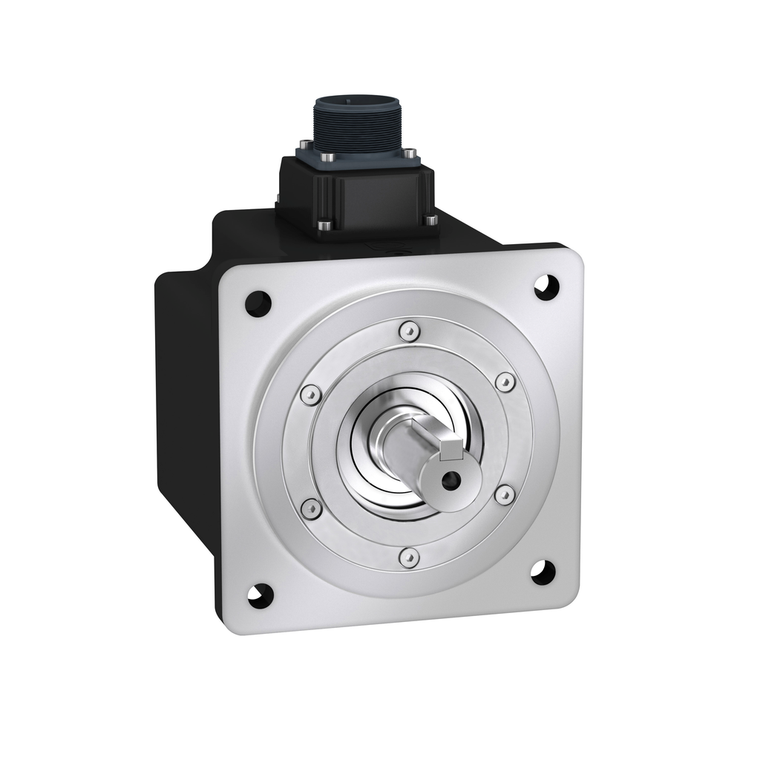

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 5.77A and a continuous power of 1000W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 147mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Shaft Length:
55 mm
Mercury Free:
Yes
Type Of Cooling:
natural convection
Centring Collar Depth:
8 mm
Maximum Permanent Current:
6.29 A
Circularity Profile:
ENVEOLI1504002EN
Product Compatibility:
LXM26D servo drive 1 kW, 220 V, single phase || LXM26D servo drive 1 kW, 220 V, three phase || LXM28... servo drive 1 kW, 220 V, single phase || LXM28... servo drive 1 kW, 220 V, three phase
Number Of Mounting Holes:
4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Distance Shaft Shoulder-Flange:
8 mm
Ambient Air Temperature For Operation:
-20-40 °C
Torque Constant:
0.83 N.m/A 20 °C
Stator Resistance:
0.62 Ohm 20 °C
Key Width:
8 mm
Shaft Diameter:
22 mm
Back Emf Constant:
50 V/krpm 20 °C
Maximum Mechanical Speed:
3000 rpm
Maximum Current Irms:
19.64 A LXM28... 1 kW, 220 V
Holding Brake:
without
Mounting Support:
asian standard flange
[Us] Rated Supply Voltage:
220 V
Maximum Axial Force Fa:
200 N
Nominal Torque:
4.77 N.m LXM26D 7 A, 220 V, single phase || 4.77 N.m LXM26D 7 A, 220 V, three phase || 4.77 N.m LXM28... 7 A, 220 V, single phase || 4.77 N.m LXM28... 7 A, 220 V, three phase
Device Short Name:
BCH2
Length:
147 mm
Peak Stall Torque:
14.3 N.m LXM26D 7 A, 220 V, single phase || 14.3 N.m LXM26D 7 A, 220 V, three phase || 14.3 N.m LXM28... 7 A, 220 V, single phase || 14.3 N.m LXM28... 7 A, 220 V, three phase
Brake Pull-In Power:
19.7 W
Phase:
three phase || single phase
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Shaft End:
keyed
Mounting Holes Diameter:
9.2 mm
Nominal Speed:
2000 rpm LXM26D 7 A, 220 V, single phase || 2000 rpm LXM26D 7 A, 220 V, three phase || 2000 rpm LXM28... 7 A, 220 V, single phase || 2000 rpm LXM28... 7 A, 220 V, three phase
Net Weight:
7 kg
Range Compatibility:
Lexium 28
Centring Collar Diameter:
110 mm
Pvc Free:
Yes
Reach Free Of Svhc:
Yes
Continuous Power:
1000 W
Stator Electrical Time Constant:
11.94 ms 20 °C
Number Of Motor Stacks:
1
Rotor Inertia:
6.63 kg.cm²
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
670 N 2000 rpm
Feedback Type:
20 bits single turn absolute encoder
Continuous Stall Current:
5.77 A
Continuous Stall Torque:
4.77 N.m LXM26D 7 A, 220 V, single phase || 4.77 N.m LXM26D 7 A, 220 V, three phase || 4.77 N.m LXM28... 7 A, 220 V, single phase || 4.77 N.m LXM28... 7 A, 220 V, three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Inductance:
7.4 mH 20 °C
Environmental Disclosure:
ENVPEP1504002EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Flange Size:
130 mm
Nominal Output Power:
1000 W LXM26D 7 A, 220 V, single phase || 1000 W LXM26D 7 A, 220 V, three phase || 1000 W LXM28... 7 A, 220 V, single phase || 1000 W LXM28... 7 A, 220 V, three phase
Circle Diameter Of The Mounting Holes:
145 mm
Rohs Exemption Information:
Yes
Electrical Connection:
connector MIL
Catalog:
View
Datasheet:
View
