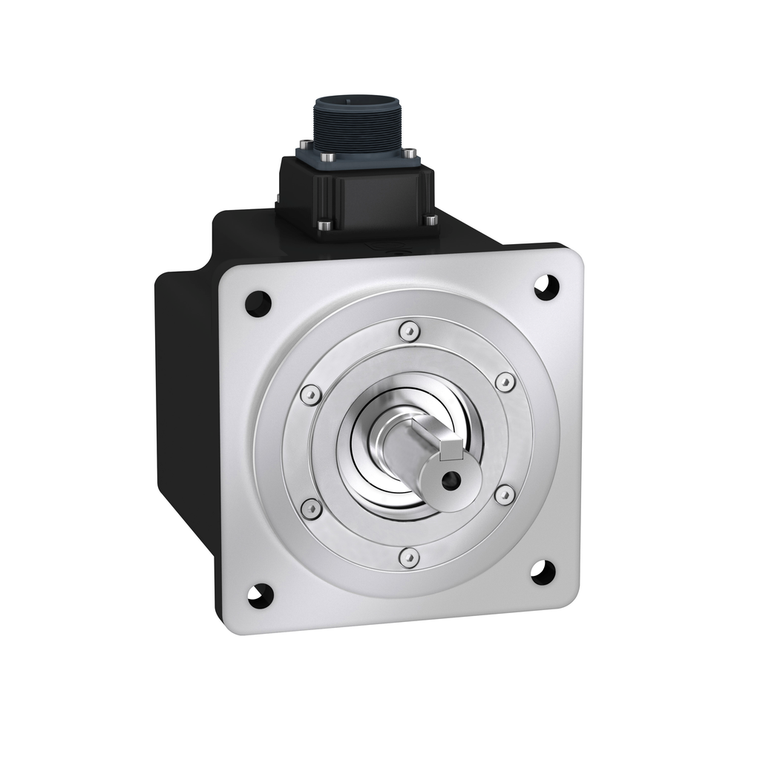

Schneider Electric BCH2MM1522CA6C 130Mm 1500W 20Bit E. Oil S. Mil
SKU:
BCH2MM1522CA6C
UPC:
3606480734328
MPN:
Condition:
New
Back Emf Constant:
70 V/krpm 20 °C
Motor Flange Size:
130 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Support:
asian standard flange
Continuous Stall Torque:
7.16 N.m LXM28... 7 A, 220 V, single phase || 7.16 N.m LXM28... 7 A, 220 V, three phase
Rotor Inertia:
9.7 kg.cm²
Shaft Diameter:
22 mm
Nominal Torque:
7.16 N.m LXM28... 7 A, 220 V, single phase || 7.16 N.m LXM28... 7 A, 220 V, three phase
Length:
167 mm
Stator Electrical Time Constant:
10 ms 20 °C
Phase:
three phase || single phase
Maximum Axial Force Fa:
200 N
Maximum Current Irms:
20.31 A LXM28... 1.5 kW, 220 V
Type Of Cooling:
natural convection
Centring Collar Depth:
8 mm
Maximum Mechanical Speed:
3000 rpm
Reach Free Of Svhc:
Yes
Device Short Name:
BCH2
Shaft Length:
55 mm
Product Compatibility:
LXM28... servo drive 1.5 kW, 220 V, single phase || LXM28... servo drive 1.5 kW, 220 V, three phase
Circle Diameter Of The Mounting Holes:
145 mm
Number Of Motor Stacks:
3
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1504002EN
Nominal Speed:
2000 rpm LXM28... 7 A, 220 V, single phase || 2000 rpm LXM28... 7 A, 220 V, three phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Continuous Power:
1500 W
Stator Inductance:
6.4 mH 20 °C
Brake Pull-In Power:
19.7 W
Maximum Permanent Current:
6.74 A
Peak Stall Torque:
21.48 N.m LXM28... 7 A, 220 V, single phase || 21.48 N.m LXM28... 7 A, 220 V, three phase
Nominal Output Power:
1500 W LXM28... 7 A, 220 V, single phase || 1500 W LXM28... 7 A, 220 V, three phase
Stator Resistance:
0.64 Ohm 20 °C
Mercury Free:
Yes
Product Or Component Type:
servo motor
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-20-40 °C
Continuous Stall Current:
6.18 A
Number Of Mounting Holes:
4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
7.6 kg
[Us] Rated Supply Voltage:
220 V
Distance Shaft Shoulder-Flange:
8 mm
Electrical Connection:
connector MIL
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Range Compatibility:
Lexium 28
Feedback Type:
20 bits single turn absolute encoder
Centring Collar Diameter:
110 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
