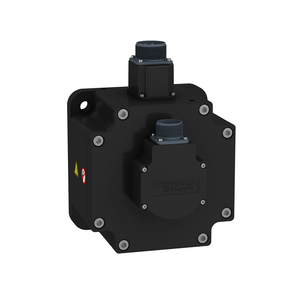

Schneider Electric BCH2MR3023CF6C 180Mm 3000W 20Bit E. Oil S. Key Brk Mil
SKU:
BCH2MR3023CF6C
UPC:
3.60648E+12
MPN:
Condition:
New
Mounting Support:
asian standard flange
[Us] Rated Supply Voltage:
220 V
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Net Weight:
23 kg
Key Width:
10 mm
Shaft End:
keyed
Product Or Component Type:
servo motor
Continuous Stall Current:
16.33 A
Shaft Length:
79 mm
Distance Shaft Shoulder-Flange:
4 mm
Maximum Current Irms:
53.9 A LXM26D 3 kW, 220 V || 53.9 A LXM28... 3 kW, 220 V
Nominal Torque:
14.32 N.m LXM26D 19.8 A, 220 V, three phase || 14.32 N.m LXM28... 19.8 A, 220 V, three phase
Nominal Speed:
2000 rpm LXM26D 19.8 A, 220 V, three phase || 2000 rpm LXM28... 19.8 A, 220 V, three phase
Number Of Mounting Holes:
4
Holding Brake:
with
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1504002EN
Maximum Mechanical Speed:
3000 rpm
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
0-40 °C
Sustainable Offer Status:
Green Premium product
Stator Inductance:
2.7 mH 20 °C
Range Compatibility:
Lexium 28
Maximum Radial Force Fr:
1200 N 2000 rpm
Continuous Power:
3000 W
Stator Electrical Time Constant:
20.61 ms 20 °C
Brake Pull-In Power:
49.6 W
Motor Flange Size:
180 mm
Torque Constant:
0.88 N.m/A 20 °C
Holding Torque:
48 N.m built-in
Environmental Disclosure:
ENVPEP1504002EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
BCH2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Diameter:
114.3 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Permanent Current:
18.8 A
Rohs Exemption Information:
Yes
Continuous Stall Torque:
14.32 N.m LXM26D 19.8 A, 220 V, three phase || 14.32 N.m LXM28... 19.8 A, 220 V, three phase
Nominal Output Power:
3000 W LXM26D 19.8 A, 220 V, three phase || 3000 W LXM28... 19.8 A, 220 V, three phase
Centring Collar Depth:
4 mm
Back Emf Constant:
53 V/krpm 20 °C
Shaft Diameter:
35 mm
Peak Stall Torque:
42.97 N.m LXM26D 19.8 A, 220 V, three phase || 42.97 N.m LXM28... 19.8 A, 220 V, three phase
Mounting Holes Diameter:
13.5 mm
Maximum Axial Force Fa:
497 N
Number Of Motor Stacks:
2
Phase:
three phase
Mercury Free:
Yes
Pvc Free:
Yes
Stator Resistance:
0.131 Ohm 20 °C
Product Compatibility:
LXM26D servo drive 3 kW, 220 V, three phase || LXM28... servo drive 3 kW, 220 V, three phase
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake. It...
