Schneider Electric

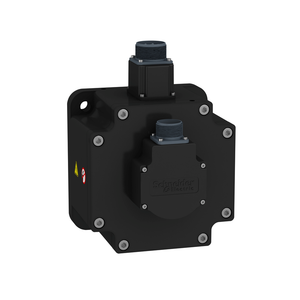

Schneider Electric BCH2MR4512CF6C 180Mm 4500W 20Bit E. Oil S. Brk Mil

SKU:

BCH2MR4512CF6C

UPC:

3.60648E+12

MPN:

Condition:

New

[Us] Rated Supply Voltage:

220 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Axial Force Fa:

497 N

Maximum Permanent Current:

22.8 A

Number Of Mounting Holes:

4

Range Compatibility:

Lexium 28

Number Of Motor Stacks:

3

Pvc Free:

Yes

Stator Resistance:

0.199 Ohm 20 °C

Distance Shaft Shoulder-Flange:

4 mm

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Holding Brake:

with

Mounting Holes Diameter:

13.5 mm

Nominal Speed:

1500 rpm LXM28... 22.9 A, 220 V, three phase

Device Short Name:

BCH2

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Torque:

48 N.m built-in

Torque Constant:

1.46 N.m/A 20 °C

Continuous Stall Torque:

28.65 N.m LXM28... 22.9 A, 220 V, three phase

Net Weight:

28 kg

Continuous Stall Current:

19.68 A

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Support:

asian standard flange

Maximum Radial Force Fr:

1200 N 1500 rpm

Brake Pull-In Power:

49.6 W

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shaft Diameter:

35 mm

Electrical Connection:

connector MIL

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

0-40 °C

Product Or Component Type:

servo motor

Continuous Power:

4500 W

Circle Diameter Of The Mounting Holes:

200 mm

Product Compatibility:

LXM28... servo drive 4.5 kW, 220 V, three phase

Mercury Free:

Yes

Motor Flange Size:

180 mm

Reach Free Of Svhc:

Yes

Nominal Output Power:

4500 W LXM28... 22.9 A, 220 V, three phase

Nominal Torque:

28.65 N.m LXM28... 22.9 A, 220 V, three phase

Stator Inductance:

3.8 mH 20 °C

Feedback Type:

20 bits single turn absolute encoder

Shaft End:

smooth shaft

Environmental Disclosure:

ENVPEP1504002EN

Phase:

three phase

Stator Electrical Time Constant:

19.1 ms 20 °C

Centring Collar Diameter:

114.3 mm

Length:

279 mm

Shaft Length:

79 mm

Back Emf Constant:

88 V/krpm 20 °C

Centring Collar Depth:

4 mm

Rotor Inertia:

74 kg.cm²

Maximum Current Irms:

57.6 A LXM28... 4.5 kW, 220 V

Circularity Profile:

ENVEOLI1504002EN

Rohs Exemption Information:

Yes

Peak Stall Torque:

71.62 N.m LXM28... 22.9 A, 220 V, three phase

Maximum Mechanical Speed:

3000 rpm
