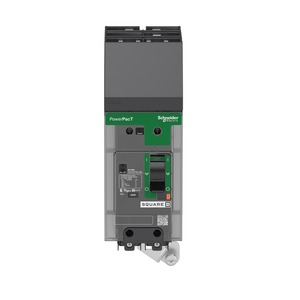

Schneider Electric BDA24040Y4 Molded Case Circuit Brkr 480Y/277V 40A
Schneider Electric
$714.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 40A, 2 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 40-40 A
- Standards:
- UL 489 || EN/IEC 60947-2 || GB 14048.2 || NMX J-266 || EN/IEC 60947-5-1 || NEMA AB1 || CSA C22.2 No 5
- Breaking Capacity Code:
- D
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Control Type:
- toggle
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- 9 Mm Pitches:
- 6
- Ik Degree Of Protection:
- IK07 IEC 62262
- Device Short Name:
- BD 040
- Product Name:
- PowerPact B
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Phase Connection:
- BC
- Product Or Component Type:
- circuit breaker
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- I-Line
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Connection Pitch:
- 27 mm
- Halogen Content Performance:
- Halogen free product
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489
- Device Application:
- distribution
- Pvc Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Circuit Breaker Application:
- HACR rated
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Quantity Per Set:
- set of 1
- Quality Labels:
- CE
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 89 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Poles Description:
- 2P
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Environmental Disclosure:
- ENVPEP1610005EN
- Electrical Connection:
- I-Line connection, line || lugs, load
- Wire Stripping Length:
- 20 mm
- Mounting Height:
- 76.2 mm
- Net Weight:
- 0.952 kg
- Local Signalling:
- presence of auxiliary contacts flag green)
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Continuous Current Rating:
- 0.8
- Height:
- 137 mm
- Width:
- 54 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Utilisation Category:
- category A
- Network Frequency:
- 50/60 Hz
- Range:
- PowerPact
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Suitability For Isolation:
- yes IEC 60947-2
- Color:
- Gray RAL 7016)
