Schneider Electric BDA24100Y4 Molded Case Circuit Brkr 480Y/277V 100A

(No reviews yet) Write a Review

Write a Review

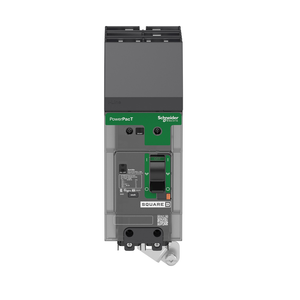

Schneider Electric BDA24100Y4 Molded Case Circuit Brkr 480Y/277V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDA24100Y4

UPC:

3606481151971

MPN:

Condition:

New

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)

Electrical Connection:

I-Line connection, line || lugs, load

Pollution Degree:

3 IEC 60947-1

Mercury Free:

Yes

Width:

54 mm

Range:

PowerPact

Product Or Component Type:

circuit breaker

Height:

137 mm

Quality Labels:

CE

Utilisation Category:

category A

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Line Rated Current:

100-100 A

Circuit Breaker Application:

HACR rated

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Poles Description:

2P

Color:

Gray RAL 7016)

Continuous Current Rating:

0.8

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Ip Degree Of Protection:

front cover IP40 IEC 60529

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Circularity Profile:

N/A

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Mounting Height:

76.2 mm

Local Signalling:

presence of auxiliary contacts flag green)

Network Frequency:

50/60 Hz

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Depth:

89 mm

Connection Pitch:

27 mm

Halogen Content Performance:

Halogen free product

Ambient Air Temperature For Storage:

-50-85 °C

Suitability For Isolation:

yes IEC 60947-2

Environmental Disclosure:

ENVPEP1610005EN

Trip Unit Technology:

thermal-magnetic

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Quantity Per Set:

set of 1

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Sustainable Offer Status:

Green Premium product

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Standards:

EN/IEC 60947-5-1 || NEMA AB1 || EN/IEC 60947-2 || NMX J-266 || GB 14048.2 || UL 489 || CSA C22.2 No 5

Device Application:

distribution

Phase Connection:

BC

9 Mm Pitches:

6

Ambient Air Temperature For Operation:

-25-70 °C

Product Name:

PowerPact B

Breaking Capacity Code:

D

Wire Stripping Length:

20 mm

Control Type:

toggle

Ik Degree Of Protection:

IK07 IEC 62262

Net Weight:

0.952 kg

Mounting Mode:

I-Line

Device Short Name:

BD 100

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Eu Rohs Directive:

Compliant with Exemptions
