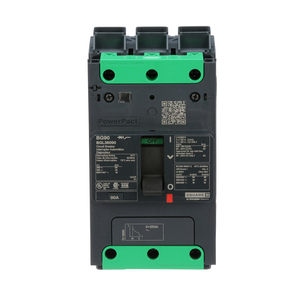

Schneider Electric BDA260902 Molded Case Circuit Brkr 600Y/347V 90A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDA260902 Molded Case Circuit Brkr 600Y/347V 90A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDA260902

UPC:

3606481152305

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mounting Mode:

I-Line

Halogen Content Performance:

Halogen free product

Local Signalling:

presence of auxiliary contacts flag green)

Mercury Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Range:

PowerPact

Continuous Current Rating:

0.8

9 Mm Pitches:

6

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Net Weight:

0.952 kg

Pvc Free:

Yes

Depth:

89 mm

Poles Description:

2P

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Device Application:

distribution

Breaking Capacity Code:

D

Connection Pitch:

27 mm

Product Name:

PowerPact B

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Network Frequency:

50/60 Hz

Quantity Per Set:

set of 1

Height:

137 mm

Trip Unit Technology:

thermal-magnetic

Rohs Exemption Information:

Yes

Product Or Component Type:

circuit breaker

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)

Width:

54 mm

Device Short Name:

BD 090

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489

Line Rated Current:

90-90 A

Eu Rohs Directive:

Compliant with Exemptions

Standards:

NMX J-266 || UL 489 || NEMA AB1 || CSA C22.2 No 5 || GB 14048.2 || EN/IEC 60947-5-1 || EN/IEC 60947-2

Ambient Air Temperature For Operation:

-25-70 °C

Color:

Gray RAL 7016)

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Phase Connection:

AC

Mounting Height:

76.2 mm

Utilisation Category:

category A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

I-Line connection, line || lugs, load

Circularity Profile:

N/A

Ip Degree Of Protection:

front cover IP40 IEC 60529

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Quality Labels:

CE

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Wire Stripping Length:

20 mm

Pollution Degree:

3 IEC 60947-1

Ambient Air Temperature For Storage:

-50-85 °C

Control Type:

toggle

Circuit Breaker Application:

HACR rated

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Sustainable Offer Status:

Green Premium product

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Ik Degree Of Protection:

IK07 IEC 62262

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Environmental Disclosure:

ENVPEP1610005EN
