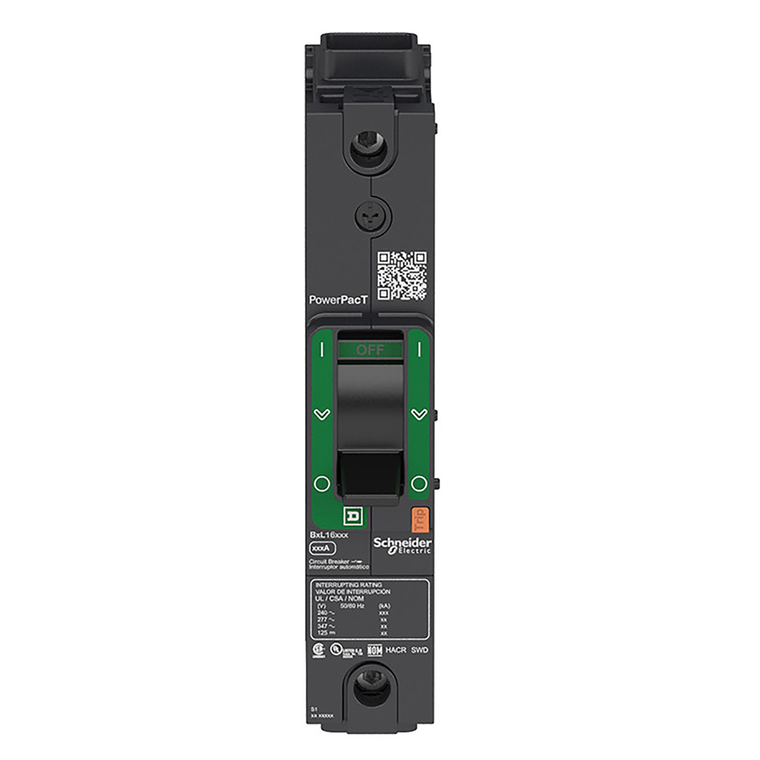

Schneider Electric BDF16025 Molded Case Circuit Breaker 347V 25A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDF16025 Molded Case Circuit Breaker 347V 25A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDF16025

UPC:

3606481148629

MPN:

Condition:

New

Awg Gauge:

AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

9 Mm Pitches:

3

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Poles Description:

1P

Ambient Air Temperature For Operation:

-25-70 °C

Mercury Free:

Yes

Continuous Current Rating:

0.8

Wire Stripping Length:

20 mm

Rohs Exemption Information:

Yes

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489

Protected Poles Description:

1t

Sustainable Offer Status:

Green Premium product

Height:

137 mm

Width:

27 mm

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Ik Degree Of Protection:

IK07 IEC 62262

Control Type:

toggle

Network Frequency:

50/60 Hz

Product Name:

PowerPact B

Line Rated Current:

25-25 A

Environmental Disclosure:

ENVPEP1610005EN

Standards:

NEMA AB1 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || UL 489 || GB 14048.2 || CSA C22.2 No 5 || NMX J-266

Halogen Content Performance:

Halogen free product

Net Weight:

0.46 kg

Suitability For Isolation:

yes IEC 60947-2

Device Application:

distribution

Circuit Breaker Application:

HACR rated

Quantity Per Set:

set of 1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Eu Rohs Directive:

Compliant with Exemptions

Pollution Degree:

3 IEC 60947-1

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL 489

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-50-85 °C

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Pvc Free:

Yes

Trip Unit Technology:

thermal-magneticTM-D,

Quality Labels:

CE

Electrical Connection:

terminal nut, ON and OFF end

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 In

Mechanical Durability:

15000 cycles IEC 947-1 Annex F ed 5.2

Utilisation Category:

category A

Trip Unit Name:

TM-D

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Color:

Gray RAL 7016)

Product Or Component Type:

circuit breaker

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Connection Pitch:

27 mm

Breaking Capacity Code:

D

Ip Degree Of Protection:

front cover IP40 IEC 60529

Depth:

80 mm

Range:

PowerPact

Circularity Profile:

N/A

Device Short Name:

BD 025
