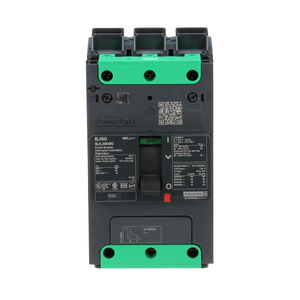

Schneider Electric BDL36090LU Molded Case Circuit Brkr 600Y/347V 90A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDL36090LU Molded Case Circuit Brkr 600Y/347V 90A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDL36090LU

UPC:

3606481149169

MPN:

Condition:

New

Continuous Current Rating:

0.8

Mechanical Durability:

15000 cycles IEC 947-1 Annex K ed 5.2

Line Rated Current:

90-90 A

Quality Labels:

CE

Utilisation Category:

category A

Network Frequency:

50/60 Hz

Standards:

NMX J-266 || NEMA AB1 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || CSA C22.2 No 5 || GB 14048.2 || UL 489

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Device Short Name:

BD 090

Wire Stripping Length:

20 mm

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Range:

PowerPact

Local Signalling:

presence of auxiliary contacts flag green)

9 Mm Pitches:

9

Halogen Content Performance:

Halogen free product

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Pvc Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Product Or Component Type:

circuit breaker

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mercury Free:

Yes

Trip Unit Technology:

thermal-magneticTM-D,

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Sustainable Offer Status:

Green Premium product

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Electrical Connection:

Everlink lug, line || Everlink lug, load

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Quantity Per Set:

set of 1

Protected Poles Description:

3t

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

81 mm

Rohs Exemption Information:

Yes

Product Name:

PowerPact B

Connection Pitch:

27 mm

Ambient Air Temperature For Operation:

-25-70 °C

Circuit Breaker Application:

HACR rated

Ik Degree Of Protection:

IK07 IEC 62262

Eu Rohs Directive:

Compliant with Exemptions

Ambient Air Temperature For Storage:

-50-85 °C

Trip Unit Name:

TM-D

Height:

137 mm

Control Type:

toggle

Net Weight:

1.074 kg

Circularity Profile:

N/A

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Color:

Gray RAL 7016)

Device Application:

distribution

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA

Pollution Degree:

3 IEC 60947-1

Poles Description:

3P

Breaking Capacity Code:

D

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Ip Degree Of Protection:

front cover IP40 IEC 60529

Environmental Disclosure:

ENVPEP1610005EN

Depth:

80 mm

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
