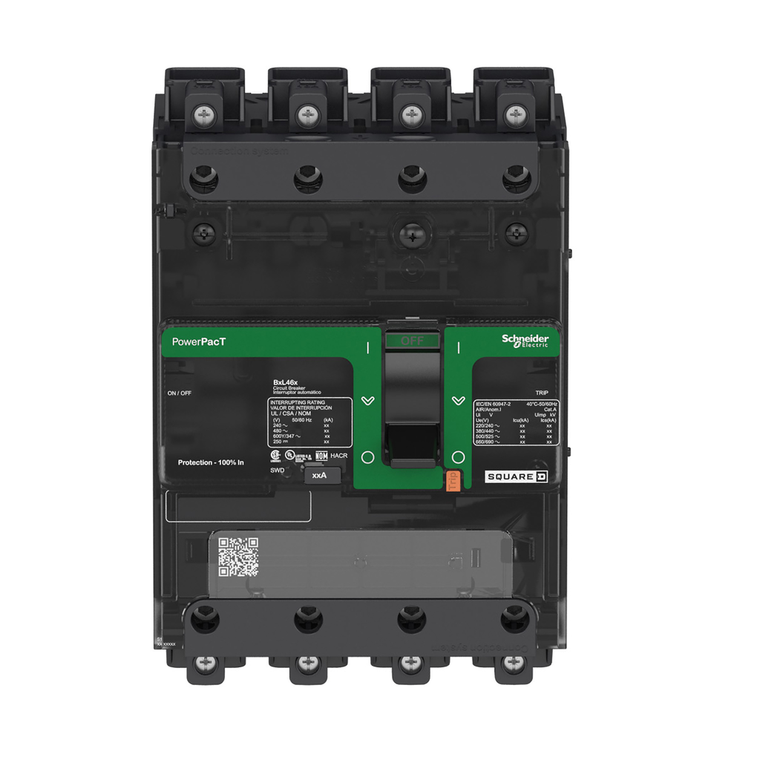

Schneider Electric BDL46015LU Molded Case Circuit Brkr 600Y/347V 15A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDL46015LU Molded Case Circuit Brkr 600Y/347V 15A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDL46015LU

UPC:

3606481149954

MPN:

Condition:

New

Depth:

80 mm

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Electrical Connection:

Everlink lug, line || Everlink lug, load

Control Type:

toggle

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Utilisation Category:

category A

Product Name:

PowerPact B

Trip Unit Technology:

thermal-magneticTM-D,

Continuous Current Rating:

0.8

9 Mm Pitches:

12

Ambient Air Temperature For Operation:

-25-70 °C

Breaking Capacity Code:

D

Trip Unit Name:

TM-D

Net Weight:

1.441 kg

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

Protected Poles Description:

4t

Circuit Breaker Application:

HACR rated

Product Or Component Type:

circuit breaker

Line Rated Current:

15-15 A

Pvc Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Width:

108 mm

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Ip Degree Of Protection:

front cover IP40 IEC 60529

Ik Degree Of Protection:

IK07 IEC 62262

Poles Description:

4P

Mercury Free:

Yes

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Color:

Gray RAL 7016)

Network Frequency:

50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Wire Stripping Length:

20 mm

Height:

137 mm

Sustainable Offer Status:

Green Premium product

Connection Pitch:

27 mm

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Local Signalling:

presence of auxiliary contacts flag green)

Device Short Name:

BD 015

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Halogen Content Performance:

Halogen free product

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Quantity Per Set:

set of 1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range:

PowerPact

Device Application:

distribution

Mechanical Durability:

15000 cycles IEC 947-1 Annex K ed 5.2

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Environmental Disclosure:

ENVPEP1610005EN

Quality Labels:

CE

Pollution Degree:

3 IEC 60947-1

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Eu Rohs Directive:

Compliant

Standards:

NMX J-266 || NEMA AB1 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || GB 14048.2 || UL 489 || EN/IEC 60947-2

Ambient Air Temperature For Storage:

-50-85 °C
