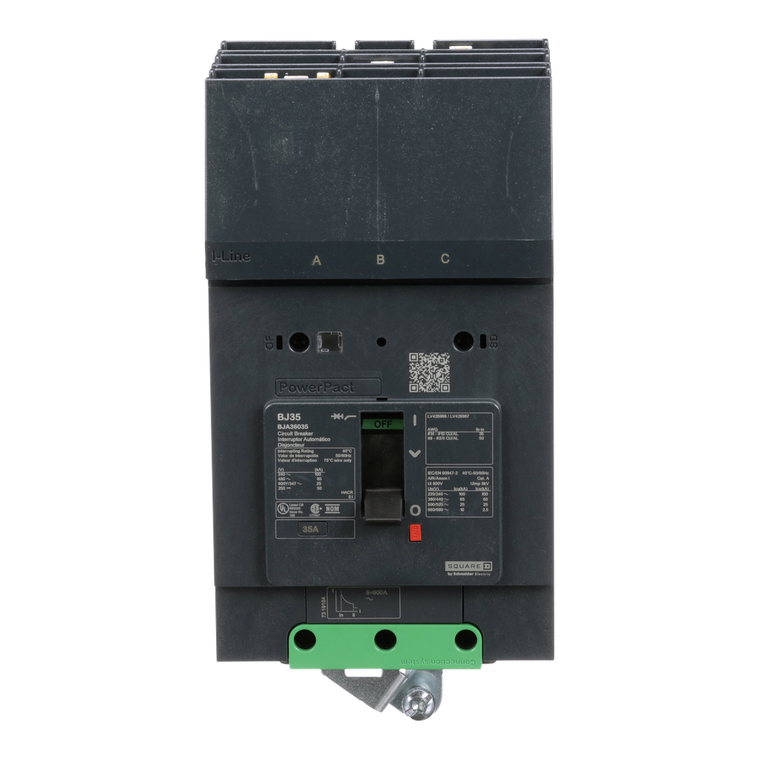

Schneider Electric BJA36035 Molded Case Circuit Brkr 600Y/347V 35A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 35A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Device Short Name:
- BJ 035
- Utilisation Category:
- category A
- 9 Mm Pitches:
- 9
- Poles Description:
- 3P
- Ambient Air Temperature For Operation:
- -25-70 °C
- Quality Labels:
- CE
- Mercury Free:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- Net Weight:
- 1.315 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Line Rated Current:
- 35-35 A
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Halogen Content Performance:
- Halogen free product
- Depth:
- 89 mm
- Mounting Mode:
- I-Line
- Quantity Per Set:
- set of 1
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 5 || EN/IEC 60947-2 || NMX J-266 || GB 14048.2 || UL 489 || NEMA AB1
- Environmental Disclosure:
- ENVPEP1610005EN
- Local Signalling:
- presence of auxiliary contacts flag green)
- Range:
- PowerPact
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz UL 489
- Product Or Component Type:
- circuit breaker
- Wire Stripping Length:
- 20 mm
- Width:
- 81 mm
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Circularity Profile:
- N/A
- Network Frequency:
- 50/60 Hz
- Device Application:
- distribution
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Control Type:
- toggle
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Height:
- 114 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Suitability For Isolation:
- yes IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
- Continuous Current Rating:
- 0.8
- Product Name:
- PowerPact B
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- I-Line connection, line || lugs, load
- Height:
- 137 mm
- Circuit Breaker Application:
- HACR rated
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Breaking Capacity Code:
- J
- Connection Pitch:
- 27 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Phase Connection:
- ABC
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Color:
- Gray RAL 7016)
