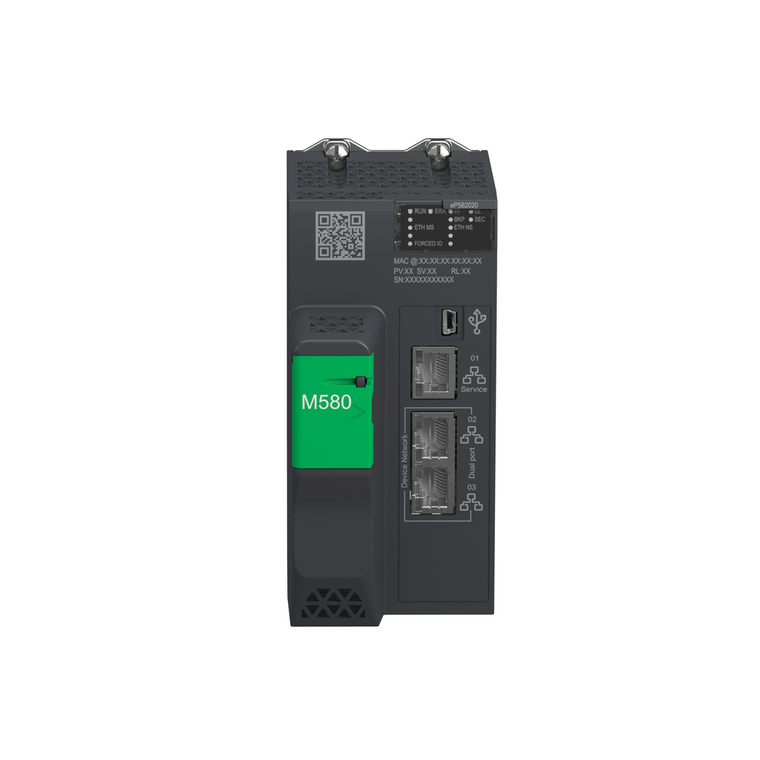

Schneider Electric BMEP582020 M580 Processor Level 2 For D Ios

Schneider Electric BMEP582020 M580 Processor Level 2 For D Ios

Schneider Electric
SKU:
BMEP582020
|
UPC:
3595864174419
Availability:
Contact us to confirm availability and lead times.
$8,562.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 72 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 2048 discrete, 512 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Additional Information
Integrated Connection Type:
1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B
Vibration Resistance:
3 gn
Supply:
internal power supply via rack
Cybersecurity:
Achilles certified || DoS prevention || IPSec || SNMP logging || Syslog protocol support || transport layer security || audit trail || embedded firewall || firmware signature || password protection || port hardening || secure communiction (HTTPS) ||
Application Structure:
1 cyclic/periodic master task || 64 event tasks || 2 auxiliary tasks || 1 periodic fast task
Product Certifications:
CE || UL || CSA || RCM || EAC || Merchant Navy
Mercury Free:
Yes
Ambient Air Temperature For Operation:
0-60 °C
Operating Altitude:
0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Modicon M580
Control Channels:
programmable loops
Rohs Exemption Information:
Yes
Memory Description:
expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory || integrated RAM, 8 MB program || integrated RAM, 768 kB data
Standards:
IEC 61131-2 || IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Product Or Component Type:
processor module
Number Of Instructions Per Ms:
7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 10 Kinst/ms 100 % Boolean
Marking:
CE
Status Led:
1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (
Discrete I/O Processor Capacity:
2048 I/O
Number Of Racks:
4
Relative Humidity:
5-95 % 55-55 °C without condensation
Ambient Air Temperature For Storage:
-40-85 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Analogue I/O Processor Capacity:
512 I/O
Ip Degree Of Protection:
IP20
Current Consumption:
270 mA 24 V DC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Distributed Equipment:
128
Number Of Application Specific Channel:
72
Mtbf Reliability:
775000 H
Net Weight:
0.849 kg
Application Specific I/O:
HART || SSI encoder || motion control || serial link || accurate time stamping || counter
Shock Resistance:
30 gn
Communication Module Processor Capacity:
2 Ethernet communication module || 8 AS-Interface module
Communication Service:
DIO scanner
Circularity Profile:
ENVEOLI1312016EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1312016EN
Directives:
2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Environmental Characteristic:
hazardous location class I division 2
Checks:
process control
