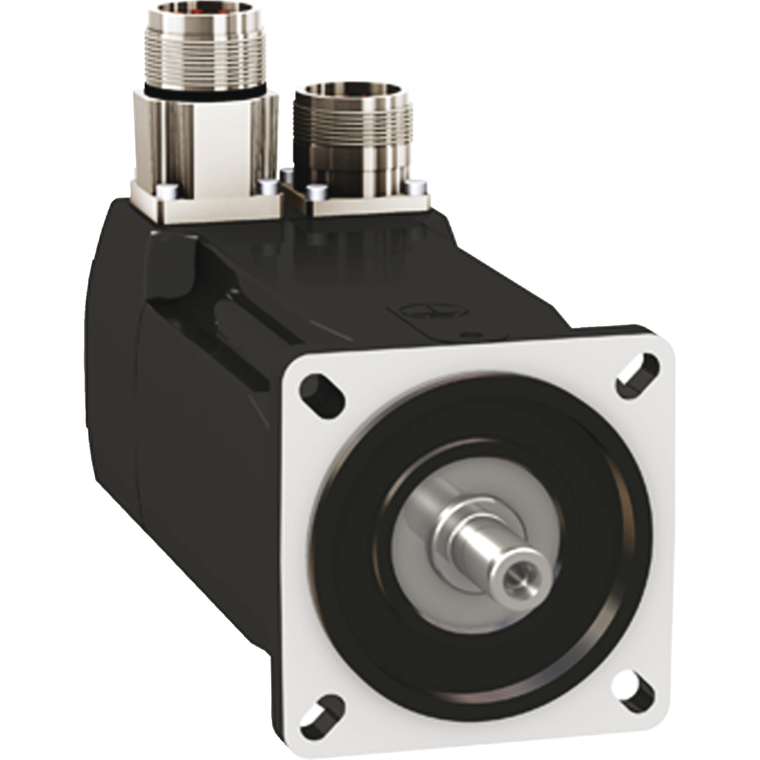

Schneider Electric BMH0701P02A1A Motor 70Mm Iec 1,4Nm Ip54 750W No Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH0701P02A1A Motor 70Mm Iec 1,4Nm Ip54 750W No Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH0701P02A1A

UPC:

3606485193045

MPN:

Condition:

New

Shaft Length:

23 mm

Stator Inductance:

23.4 mH 20 °C

Back Emf Constant:

50.72 V/krpm 120 °C

Torque Constant:

0.79 N.m/A 120 °C

Net Weight:

1.6 kg

Second Shaft:

without second shaft end

Motor Flange Size:

70 mm

Continuous Stall Torque:

1.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 480 V, three phase

Mercury Free:

Yes

Feedback Type:

multiturn SinCos Hiperface

Warranty:

18 months

Shaft End:

smooth shaft

Product Or Component Type:

servo motor

Shaft Diameter:

11 mm

Stator Electrical Time Constant:

2.8 ms 20 °C

China Rohs Regulation:

X

Pvc Free:

Yes

Maximum Mechanical Speed:

8000 rpm

Range Compatibility:

Lexium 32

Electrical Connection:

straight connectors

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Continuous Power:

1.05 W

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Cooling:

natural convection

Length:

122 mm

Centring Collar Depth:

2.5 mm

Peak Stall Torque:

4.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 4.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 480 V, three phase

Maximum Axial Force Fa:

0.2 x Fr

Product Compatibility:

LXM32.U60N4 400...480 V three phase || LXM32.D12N4 400...480 V three phase

Number Of Motor Stacks:

1

Centring Collar Diameter:

60 mm

Holding Brake:

without

Ip Degree Of Protection:

IP54 standard

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Mounting Support:

international standard flange

Circle Diameter Of The Mounting Holes:

82 mm

Maximum Current Irms:

6 A LXM32.U60N4 || 6 A LXM32.D12N4

Nominal Output Power:

350 W LXM32.U60N4 1.5 A, 400 V, three phase || 350 W LXM32.U60N4 1.5 A, 480 V, three phase || 700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase

Circularity Profile:

N/A

Nominal Speed:

3000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 3000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 5000 rpm LXM32.D12N4 3 A, 400 V, three phase || 5000 rpm LXM32.D12N4 3 A, 480 V, three phase

Environmental Disclosure:

ENVPEP111002EN

Maximum Permanent Current:

5.97 A

Number Of Mounting Holes:

4

Number Of Motor Poles:

10

Phase:

three phase

Stator Resistance:

8.3 Ohm 20 °C

Nominal Torque:

1.1 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.1 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 480 V, three phase

Continuous Stall Current:

1.78 A

Device Short Name:

BMH

[Us] Rated Supply Voltage:

480 V

Rohs Exemption Information:

Yes

Rotor Inertia:

0.59 kg.cm²

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Holes Diameter:

5.5 mm

Sustainable Offer Status:

Green Premium product

Datasheet:

View
