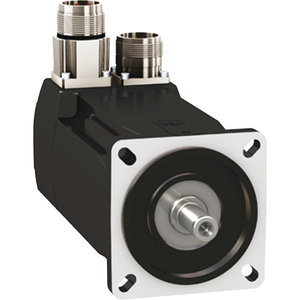

Schneider Electric BMH0701P06A2A Motor 70Mm Iec 1,4Nm Ip54 750W No Key

Schneider Electric BMH0701P06A2A Motor 70Mm Iec 1,4Nm Ip54 750W No Key

Schneider Electric
SKU:
BMH0701P06A2A
|
UPC:
3.60648E+12
$843.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 8000RPM and smooth shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 122mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 1.6kg. This product is compatible with Lexium 32 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
Additional Information
Electrical Connection:
rotatable right-angled connectors
Mounting Holes Diameter:
5.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Axial Force Fa:
0.2 x Fr
Feedback Type:
single turn SinCos Hiperface
Nominal Output Power:
350 W LXM32.U60N4 1.5 A, 400 V, three phase || 350 W LXM32.U60N4 1.5 A, 480 V, three phase || 700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase
Speed Feedback Resolution:
32768 points/turn
Phase:
three phase
Torque Constant:
0.79 N.m/A 120 °C
Nominal Speed:
3000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 3000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 5000 rpm LXM32.D12N4 3 A, 400 V, three phase || 5000 rpm LXM32.D12N4 3 A, 480 V, three phase
Rotor Inertia:
0.59 kg.cm²
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Compatibility:
Lexium 32
Environmental Disclosure:
ENVPEP111002EN
Device Short Name:
BMH
Type Of Cooling:
natural convection
Shaft End:
smooth shaft
Second Shaft:
without second shaft end
Nominal Torque:
1.1 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.1 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 480 V, three phase
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Holding Brake:
without
Stator Inductance:
23.4 mH 20 °C
Maximum Mechanical Speed:
8000 rpm
Peak Stall Torque:
4.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 4.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 480 V, three phase
Continuous Stall Torque:
1.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 480 V, three phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Permanent Current:
5.97 A
Mounting Support:
international standard flange
Number Of Motor Stacks:
1
Product Or Component Type:
servo motor
Centring Collar Diameter:
60 mm
Warranty:
18 months
Ip Degree Of Protection:
IP54 standard
Maximum Current Irms:
6 A LXM32.U60N4 || 6 A LXM32.D12N4
Stator Electrical Time Constant:
2.8 ms 20 °C
Continuous Power:
1.05 W
Shaft Diameter:
11 mm
Mercury Free:
Yes
Length:
122 mm
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Current:
1.78 A
Number Of Motor Poles:
10
Number Of Mounting Holes:
4
Circularity Profile:
N/A
Net Weight:
1.6 kg
Circle Diameter Of The Mounting Holes:
82 mm
Product Compatibility:
LXM32.U60N4 400...480 V three phase || LXM32.D12N4 400...480 V three phase
Motor Flange Size:
70 mm
Centring Collar Depth:
2.5 mm
[Us] Rated Supply Voltage:
480 V
Pvc Free:
Yes
Stator Resistance:
8.3 Ohm 20 °C
Shaft Length:
23 mm
Back Emf Constant:
50.72 V/krpm 120 °C
Maximum Radial Force Fr:
660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
Datasheet:
View
