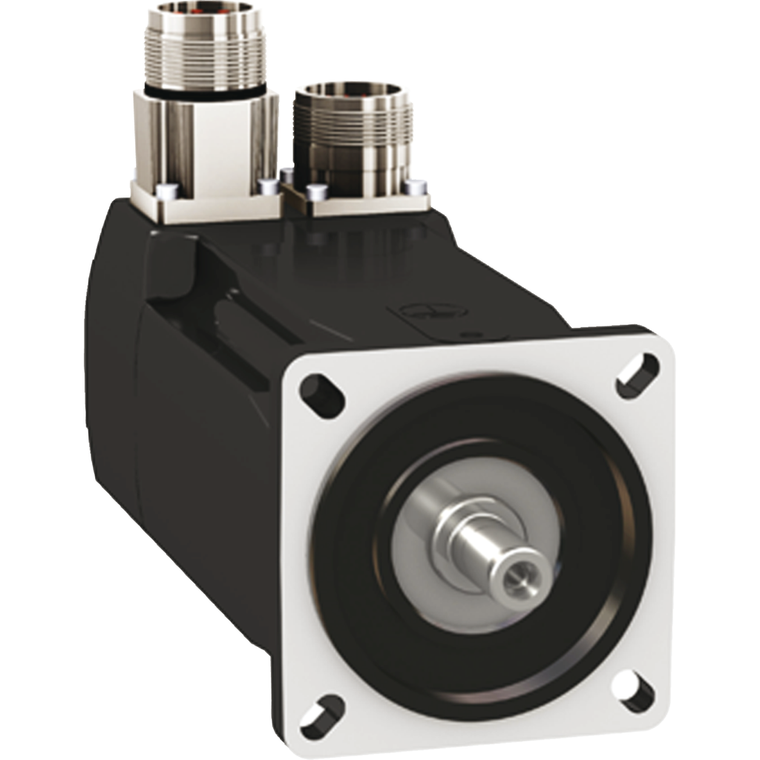

Schneider Electric BMH0701T26A1A Motor 70Mm Iec 1,4Nm Ip65/67 690W No
SKU:
BMH0701T26A1A
UPC:
3606485194172
MPN:
Condition:
New
Net Weight:
1.6 kg
Nominal Output Power:
450 W LXM32.U90M2 3 A, 230 V, single phase || 350 W LXM32.D18M2 6 A, 115 V, single phase
Mounting Support:
international standard flange
Type Of Cooling:
natural convection
Nominal Torque:
1.1 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.35 N.m LXM32.D18M2 6 A, 115 V, single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Stator Resistance:
3.2 Ohm 20 °C
Length:
122 mm
Shaft Diameter:
11 mm
Torque Constant:
0.49 N.m/A 120 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Holding Brake:
without
Electrical Connection:
straight connectors
Number Of Mounting Holes:
4
Back Emf Constant:
31.17 V/krpm 120 °C
Number Of Motor Poles:
10
Device Short Name:
BMH
Peak Stall Torque:
4 N.m LXM32.U90M2 3 A, 230 V, single phase || 4.2 N.m LXM32.D18M2 6 A, 115 V, single phase
Continuous Power:
1.05 W
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Centring Collar Diameter:
60 mm
Circularity Profile:
N/A
Maximum Radial Force Fr:
660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
Second Shaft:
without second shaft end
Maximum Current Irms:
9.6 A LXM32.D18M2 || 9.6 A LXM32.U90M2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Motor Stacks:
1
Speed Feedback Resolution:
32768 points/turn
Rohs Exemption Information:
Yes
Shaft Length:
23 mm
Pvc Free:
Yes
Product Compatibility:
LXM32.D18M2 115 V single phase || LXM32.U90M2 230 V single phase
Warranty:
18 months
Phase:
three phase
Continuous Stall Current:
2.85 A
Product Or Component Type:
servo motor
Centring Collar Depth:
2.5 mm
Environmental Disclosure:
ENVPEP111002EN
Feedback Type:
single turn SinCos Hiperface
Rotor Inertia:
0.59 kg.cm²
Range Compatibility:
Lexium 32
Stator Inductance:
9.1 mH 20 °C
Nominal Speed:
4000 rpm LXM32.U90M2 3 A, 230 V, single phase || 2500 rpm LXM32.D18M2 6 A, 115 V, single phase
Maximum Axial Force Fa:
0.2 x Fr
Maximum Mechanical Speed:
8000 rpm
Circle Diameter Of The Mounting Holes:
82 mm
Mercury Free:
Yes
Stator Electrical Time Constant:
2.8 ms 20 °C
Continuous Stall Torque:
1.4 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.4 N.m LXM32.D18M2 6 A, 115 V, single phase
Mounting Holes Diameter:
5.5 mm
Maximum Permanent Current:
9.56 A
[Us] Rated Supply Voltage:
240 V
Motor Flange Size:
70 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
