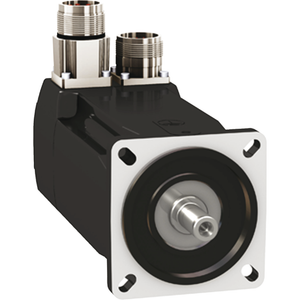

Schneider Electric BMH0701T26A2A Motor 70Mm Iec 1,4Nm Ip65/67 690W No

SKU:

BMH0701T26A2A

UPC:

3606485194240

MPN:

Condition:

New

Mercury Free:

Yes

Motor Flange Size:

70 mm

Peak Stall Torque:

4 N.m LXM32.U90M2 3 A, 230 V, single phase || 4.2 N.m LXM32.D18M2 6 A, 115 V, single phase

Type Of Cooling:

natural convection

Environmental Disclosure:

ENVPEP111002EN

Holding Brake:

without

Maximum Axial Force Fa:

0.2 x Fr

Centring Collar Depth:

2.5 mm

Number Of Motor Stacks:

1

Feedback Type:

single turn SinCos Hiperface

Back Emf Constant:

31.17 V/krpm 120 °C

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

Shaft End:

smooth shaft

Stator Resistance:

3.2 Ohm 20 °C

China Rohs Regulation:

X

Circularity Profile:

N/A

Mounting Holes Diameter:

5.5 mm

Continuous Stall Current:

2.85 A

Stator Electrical Time Constant:

2.8 ms 20 °C

Circle Diameter Of The Mounting Holes:

82 mm

Range Compatibility:

Lexium 32

Maximum Current Irms:

9.6 A LXM32.D18M2 || 9.6 A LXM32.U90M2

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Nominal Output Power:

450 W LXM32.U90M2 3 A, 230 V, single phase || 350 W LXM32.D18M2 6 A, 115 V, single phase

Nominal Torque:

1.1 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.35 N.m LXM32.D18M2 6 A, 115 V, single phase

Number Of Mounting Holes:

4

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Torque Constant:

0.49 N.m/A 120 °C

Continuous Power:

1.05 W

Rohs Exemption Information:

Yes

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Product Compatibility:

LXM32.D18M2 115 V single phase || LXM32.U90M2 230 V single phase

Speed Feedback Resolution:

32768 points/turn

Continuous Stall Torque:

1.4 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.4 N.m LXM32.D18M2 6 A, 115 V, single phase

Device Short Name:

BMH

Rotor Inertia:

0.59 kg.cm²

Maximum Permanent Current:

9.56 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty:

18 months

Pvc Free:

Yes

Centring Collar Diameter:

60 mm

Maximum Mechanical Speed:

8000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Speed:

4000 rpm LXM32.U90M2 3 A, 230 V, single phase || 2500 rpm LXM32.D18M2 6 A, 115 V, single phase

Stator Inductance:

9.1 mH 20 °C

Sustainable Offer Status:

Green Premium product

Shaft Length:

23 mm

Second Shaft:

without second shaft end

[Us] Rated Supply Voltage:

240 V

Length:

122 mm

Net Weight:

1.6 kg

Shaft Diameter:

11 mm

Number Of Motor Poles:

10

Electrical Connection:

rotatable right-angled connectors
