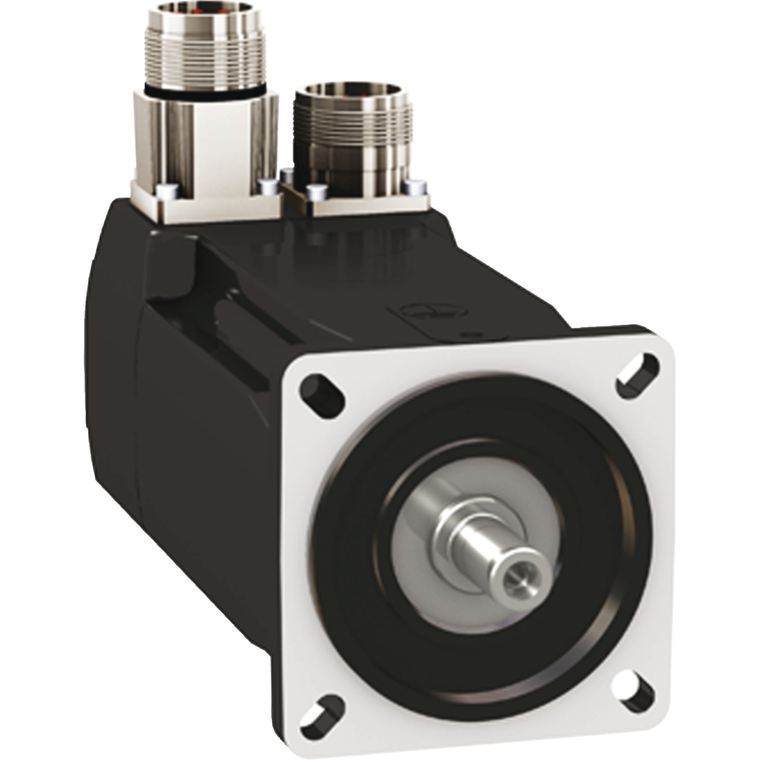

Schneider Electric BMH0702T16F1A Motor 70Mm Iec 2,5Nm Ip54 1080W Key

SKU:

BMH0702T16F1A

UPC:

3606485194677

MPN:

Condition:

New

Warranty:

18 months

Nominal Speed:

2500 rpm LXM32.D30M2 10 A, 115 V, single phase || 4000 rpm LXM32.D18M2 6 A, 230 V, single phase

Stator Inductance:

3.6 mH 20 °C

Product Or Component Type:

servo motor

Ip Degree Of Protection:

IP54 standard

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

240 V

Speed Feedback Resolution:

32768 points/turn

Environmental Disclosure:

ENVPEP111002EN

Electrical Connection:

straight connectors

Centring Collar Depth:

2.5 mm

Rohs Exemption Information:

Yes

Second Shaft:

without second shaft end

Torque Constant:

0.46 N.m/A 120 °C

Holding Torque:

3 N.m holding brake

Shaft Diameter:

11 mm

Feedback Type:

single turn SinCos Hiperface

Motor Flange Size:

70 mm

Net Weight:

3.3 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Motor Poles:

10

Circle Diameter Of The Mounting Holes:

82 mm

Rotor Inertia:

1.24 kg.cm²

Phase:

three phase

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm

Centring Collar Diameter:

60 mm

Mounting Support:

international standard flange

Length:

193 mm

Back Emf Constant:

29.6 V/krpm 120 °C

Nominal Output Power:

600 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM32.D18M2 6 A, 230 V, single phase

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Range Compatibility:

Lexium 32

Key Width:

18 mm

Holding Brake:

with

Maximum Mechanical Speed:

8000 rpm

Device Short Name:

BMH

Number Of Motor Stacks:

2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Mounting Holes:

4

Shaft End:

keyed

Maximum Axial Force Fa:

0.2 x Fr

Shaft Length:

23 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Power:

1.51 W

Product Compatibility:

LXM32.D30M2 115 V single phase || LXM32.D18M2 230 V single phase

Maximum Current Irms:

15 A LXM32.D30M2 || 17.5 A LXM32.D18M2

Brake Pull-In Power:

7 W

Continuous Stall Current:

5.38 A

Mercury Free:

Yes

Nominal Torque:

2.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.1 N.m LXM32.D18M2 6 A, 230 V, single phase

Pvc Free:

Yes

China Rohs Regulation:

X

Stator Electrical Time Constant:

3.1 ms 20 °C

Stator Resistance:

1.15 Ohm 20 °C

Maximum Permanent Current:

17.71 A

Mounting Holes Diameter:

5.5 mm

Continuous Stall Torque:

2.5 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.5 N.m LXM32.D18M2 6 A, 230 V, single phase

Type Of Cooling:

natural convection

Peak Stall Torque:

6.4 N.m LXM32.D30M2 10 A, 115 V, single phase || 7.4 N.m LXM32.D18M2 6 A, 230 V, single phase

Datasheet:

View
