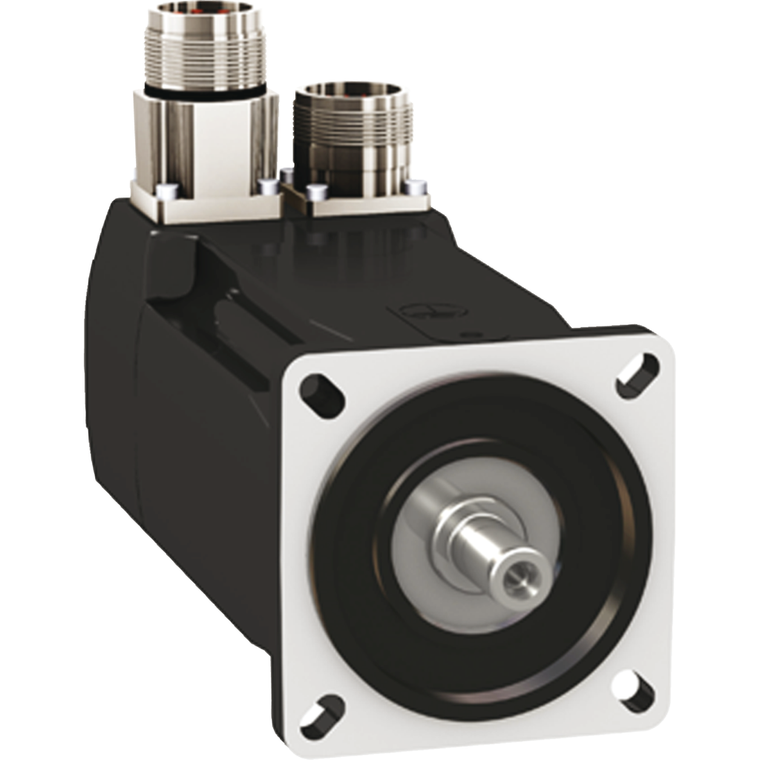

Schneider Electric BMH0703P12A1A Motor 70Mm Iec 3,4Nm Ip54 1320W Key

SKU:

BMH0703P12A1A

UPC:

3606485199207

MPN:

Condition:

New

Feedback Type:

multiturn SinCos Hiperface

Stator Electrical Time Constant:

3.2 ms 20 °C

Device Short Name:

BMH

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Axial Force Fa:

0.2 x Fr

Number Of Mounting Holes:

4

Ip Degree Of Protection:

IP54 standard

Maximum Permanent Current:

12.57 A

Circularity Profile:

N/A

Continuous Stall Torque:

3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

186 mm

Continuous Power:

1.68 W

[Us] Rated Supply Voltage:

480 V

Number Of Motor Stacks:

3

Continuous Stall Current:

3.91 A

Back Emf Constant:

55.8 V/krpm 120 °C

Centring Collar Diameter:

60 mm

Torque Constant:

0.87 N.m/A 120 °C

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Pvc Free:

Yes

Net Weight:

3 kg

Motor Flange Size:

70 mm

Rotor Inertia:

1.67 kg.cm²

Centring Collar Depth:

2.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Brake:

without

Mounting Holes Diameter:

5.5 mm

Maximum Radial Force Fr:

730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm

China Rohs Regulation:

X

Nominal Torque:

2.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 2.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Maximum Current Irms:

12.6 A LXM32.D18N4

Environmental Disclosure:

ENVPEP111002EN

Shaft Length:

30 mm

Nominal Speed:

5000 rpm LXM32.D18N4 6 A, 400 V, three phase || 5000 rpm LXM32.D18N4 6 A, 480 V, three phase

Stator Resistance:

2.65 Ohm 20 °C

Circle Diameter Of The Mounting Holes:

82 mm

Number Of Motor Poles:

10

Peak Stall Torque:

10.2 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.2 N.m LXM32.D18N4 6 A, 480 V, three phase

Product Or Component Type:

servo motor

Shaft End:

keyed

Product Compatibility:

LXM32.D18N4 400...480 V three phase

Shaft Diameter:

14 mm

Maximum Mechanical Speed:

8000 rpm

Rohs Exemption Information:

Yes

Mounting Support:

international standard flange

Type Of Cooling:

natural convection

Mercury Free:

Yes

Phase:

three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty:

18 months

Key Width:

20 mm

Stator Inductance:

8.6 mH 20 °C

Sustainable Offer Status:

Green Premium product

Electrical Connection:

straight connectors

Nominal Output Power:

1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Range Compatibility:

Lexium 32

Second Shaft:

without second shaft end
