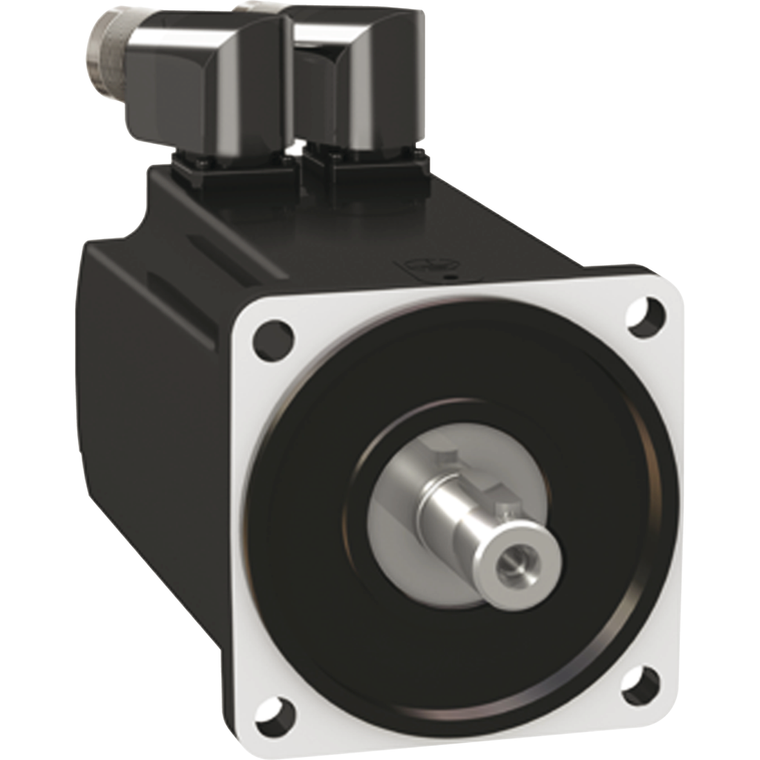

Schneider Electric BMH1001P01A2A Motor 100Mm Iec 3,4Nm Ip54 1260W No Key

SKU:

BMH1001P01A2A

UPC:

3606485200248

MPN:

Condition:

New

Range Compatibility:

Lexium 32

Rotor Inertia:

3.19 kg.cm²

Back Emf Constant:

70.3 V/krpm 120 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP111002EN

Feedback Type:

single turn SinCos Hiperface

Centring Collar Depth:

3.5 mm

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Number Of Motor Stacks:

1

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Holding Brake:

without

Centring Collar Diameter:

95 mm

Number Of Motor Poles:

10

Torque Constant:

1.1 N.m/A 120 °C

Second Shaft:

without second shaft end

Product Or Component Type:

servo motor

Phase:

three phase

Number Of Mounting Holes:

4

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Shaft End:

smooth shaft

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Stator Electrical Time Constant:

4.5 ms 20 °C

Shaft Diameter:

19 mm

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Maximum Mechanical Speed:

6000 rpm

Maximum Permanent Current:

11.93 A

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Circularity Profile:

N/A

Continuous Stall Current:

3.15 A

Stator Resistance:

3.1 Ohm 20 °C

Rohs Exemption Information:

Yes

Motor Flange Size:

100 mm

Mercury Free:

Yes

Ip Degree Of Protection:

IP54 standard

Stator Inductance:

13.9 mH 20 °C

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Continuous Power:

1.76 W

Speed Feedback Resolution:

131072 points/turn

Type Of Cooling:

natural convection

Shaft Length:

40 mm

Circle Diameter Of The Mounting Holes:

115 mm

[Us] Rated Supply Voltage:

480 V

Mounting Holes Diameter:

9 mm

Maximum Axial Force Fa:

0.2 x Fr

Net Weight:

3.34 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BMH

Mounting Support:

international standard flange

Length:

128.6 mm

Electrical Connection:

rotatable right-angled connectors

Datasheet:

View
