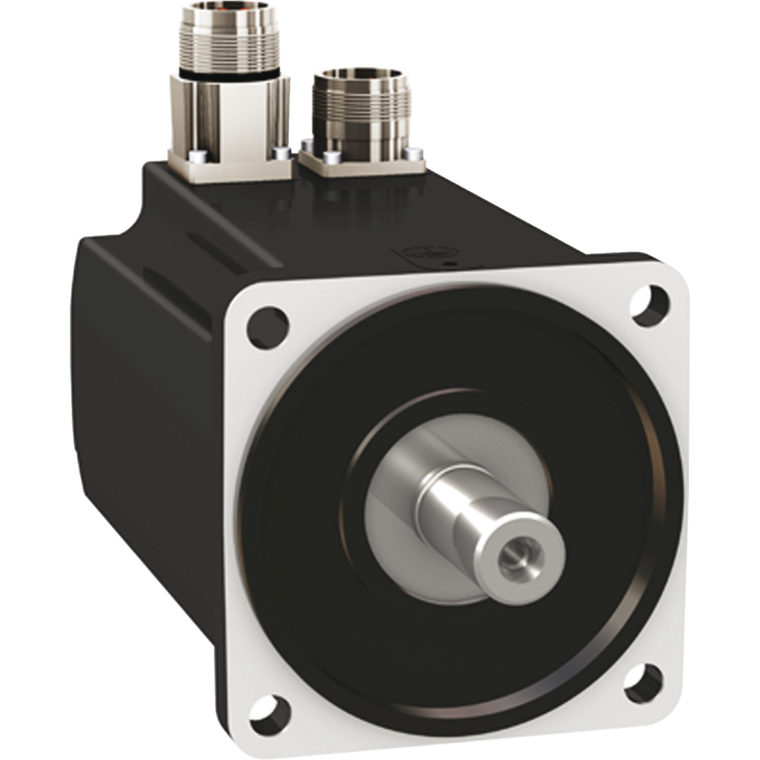

Schneider Electric BMH1001P07F1A Motor 100Mm Iec 3,6Nm Ip54 1260W No Key

SKU:

BMH1001P07F1A

UPC:

3606485195759

MPN:

Condition:

New

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Centring Collar Diameter:

95 mm

Shaft End:

smooth shaft

Electrical Connection:

straight connectors

Second Shaft:

without second shaft end

Net Weight:

4.8 kg

Feedback Type:

multiturn SinCos Hiperface

Centring Collar Depth:

3.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Continuous Power:

1.76 W

Mounting Support:

international standard flange

Type Of Cooling:

natural convection

Number Of Mounting Holes:

4

Mounting Holes Diameter:

9 mm

Maximum Axial Force Fa:

0.2 x Fr

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

servo motor

Sustainable Offer Status:

Green Premium product

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Holding Torque:

5.5 N.m holding brake

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Torque Constant:

1.1 N.m/A 120 °C

Circularity Profile:

N/A

Stator Electrical Time Constant:

4.5 ms 20 °C

Rotor Inertia:

3.68 kg.cm²

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Range Compatibility:

Lexium 32

Device Short Name:

BMH

Environmental Disclosure:

ENVPEP111002EN

Phase:

three phase

Pvc Free:

Yes

Holding Brake:

with

Shaft Diameter:

19 mm

Maximum Mechanical Speed:

6000 rpm

Maximum Permanent Current:

11.93 A

Continuous Stall Current:

3.15 A

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Shaft Length:

40 mm

Length:

170.3 mm

Circle Diameter Of The Mounting Holes:

115 mm

Back Emf Constant:

70.3 V/krpm 120 °C

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Brake Pull-In Power:

12 W

China Rohs Regulation:

X

Number Of Motor Stacks:

1

[Us] Rated Supply Voltage:

480 V

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP54 standard

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Motor Flange Size:

100 mm

Number Of Motor Poles:

10

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Stator Resistance:

3.1 Ohm 20 °C

Mercury Free:

Yes

Stator Inductance:

13.9 mH 20 °C

Warranty:

18 months
