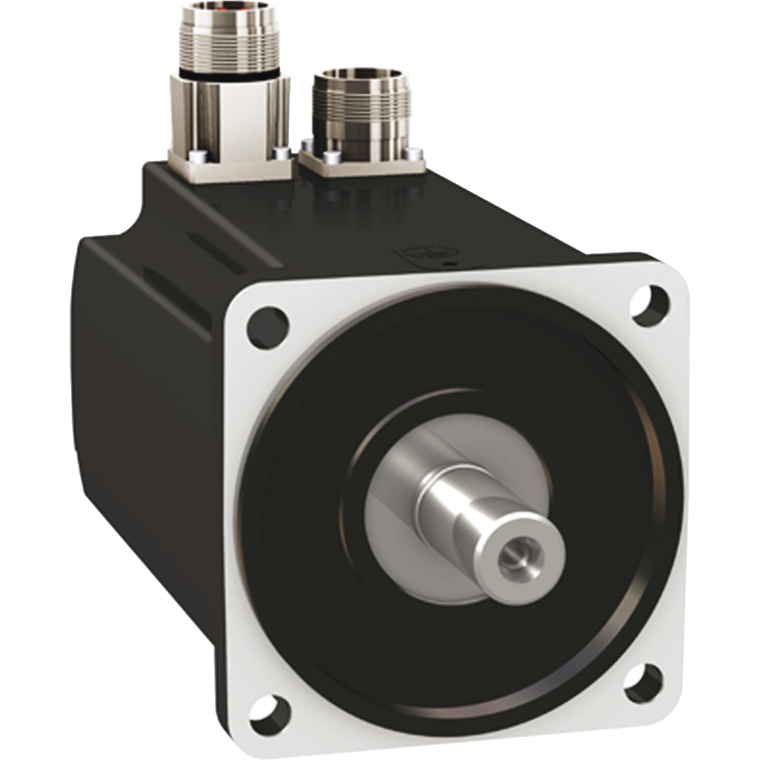

Schneider Electric BMH1001P17A1A Motor 100Mm Iec 3,6Nm Ip54 1260W Key

SKU:

BMH1001P17A1A

UPC:

3606485195728

MPN:

Condition:

New

Type Of Cooling:

natural convection

Environmental Disclosure:

ENVPEP111002EN

Holding Brake:

without

Maximum Mechanical Speed:

6000 rpm

Maximum Permanent Current:

11.93 A

Circularity Profile:

N/A

Shaft Length:

40 mm

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm

Mounting Support:

international standard flange

Motor Flange Size:

100 mm

Feedback Type:

multiturn SinCos Hiperface

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Poles:

10

Key Width:

30 mm

Electrical Connection:

straight connectors

Torque Constant:

1.1 N.m/A 120 °C

Stator Inductance:

13.9 mH 20 °C

Circle Diameter Of The Mounting Holes:

115 mm

Centring Collar Depth:

3.5 mm

Number Of Motor Stacks:

1

Range Compatibility:

Lexium 32

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Stator Electrical Time Constant:

4.5 ms 20 °C

Number Of Mounting Holes:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Speed:

4000 rpm LXM32.D12N4 3 A, 400 V, three phase || 4000 rpm LXM32.D12N4 3 A, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase

Continuous Stall Current:

3.15 A

Phase:

three phase

Continuous Stall Torque:

3.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 3.3 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.4 N.m LXM32.D18N4 6 A, 480 V, three phase

Mounting Holes Diameter:

9 mm

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

480 V

Ip Degree Of Protection:

IP54 standard

Continuous Power:

1.76 W

Back Emf Constant:

70.3 V/krpm 120 °C

China Rohs Regulation:

X

Maximum Current Irms:

11.9 A LXM32.D12N4 || 11.9 A LXM32.D18N4

Product Compatibility:

LXM32.D12N4 400...480 V three phase || LXM32.D18N4 400...480 V three phase

Pvc Free:

Yes

Second Shaft:

without second shaft end

Device Short Name:

BMH

Shaft End:

keyed

Centring Collar Diameter:

95 mm

Nominal Output Power:

800 W LXM32.D12N4 3 A, 400 V, three phase || 800 W LXM32.D12N4 3 A, 480 V, three phase || 1300 W LXM32.D18N4 6 A, 400 V, three phase || 1300 W LXM32.D18N4 6 A, 480 V, three phase

Warranty:

18 months

Length:

128.6 mm

Nominal Torque:

1.9 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.9 N.m LXM32.D12N4 3 A, 480 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.1 N.m LXM32.D18N4 6 A, 480 V, three phase

Net Weight:

3.34 kg

Stator Resistance:

3.1 Ohm 20 °C

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Product Or Component Type:

servo motor

Maximum Axial Force Fa:

0.2 x Fr

Shaft Diameter:

19 mm

Rotor Inertia:

3.19 kg.cm²

Peak Stall Torque:

10.8 N.m LXM32.D12N4 3 A, 400 V, three phase || 10.8 N.m LXM32.D12N4 3 A, 480 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 10.8 N.m LXM32.D18N4 6 A, 480 V, three phase

Speed Feedback Resolution:

32768 points/turn x 4096 turns
